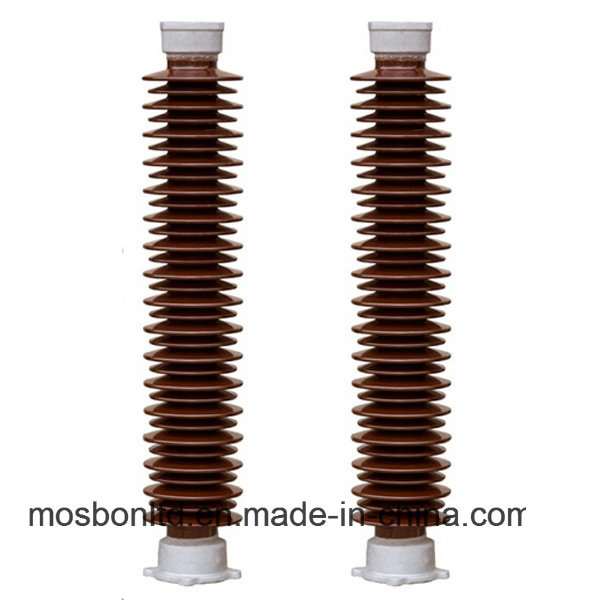

132kv Solid Core Post Ceramic Insulators Station Post Porcelain Insulator

Name: 132kv Solid Core Post Ceramic Insulators Station Post Porcelain Insulator
Brand: all-electronics-online.com
SKU: 708284802
Availability: InStock
Rating: 4.3 (20 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M-0215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Low-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	Insulator
Size Of Bearing Capacity:	12.5 Kn
Color:	Brown
Brand:	Mosbon

Product Description

132kV solid core post ceramic insulators station post porcelain insulator
Specifications
1.Professional Manufacture of China
2.Multi protection functions
3.CE,FCC,LVD&ROHS reports

Product Description
Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
This series product are composed of silicon rubber for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.

ANSI Class		TR-216
Creepage Distance.mm		1829
Cantilever Strength,KN		6.7
Tension Strength,kN		71
Torsion Strength,N-m		1695
Compression Strength,kN		111
Power Frequency	Dry,kV	235
Flashover Voltage	Wet,kV	180
Critical Impulse	Pos.,kV	390
Flashover Voltage	Neg.,kV	475
Power Frequency	Dry,kV	175
Withstand Voltage	Wet,kV	145
Impulse Withstand Voltate,kV		350
Net Weight,Approx.,kg		29
Standard Specification:ANSI C29.9

Established in 2008, located in Dongguan city in Guangdong China, which is a professional manufacturer of Sports wear, cycling wear, biking wear, cycling Jersey, running wear, compression tights, yoga wear, skin wear and etc, It owns productiive-area of 6, 000 square meters, more than 120 employees, advanced machines and so on.

Over the years, with excellent quality and perfect after-sales service we have being Provided, our company has won a high degree of trust and praise from the domestic and international customers. Our products are mainly exported to the USA, Canada, Australia, Russia, Britain, Germany, Ireland, Spain and some other markets. Our company has always being kept the spirit of people-oriented and good quality to survival, and will try our best to I service all customers at home and abroad sincerely!

Thank you for your visiting and getting business in the near future!
