135W 4.2A Outdoor Waterproof IP67 Constant Current Dimmable LED Driver

Name: 135W 4.2A Outdoor Waterproof IP67 Constant Current Dimmable LED Driver
Brand: all-electronics-online.com
SKU: 798846915
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 20.3-21.3/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD135-1TCF14A-4200
Output Power:	135W
Dimming:	0-10V Dimming
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	230X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

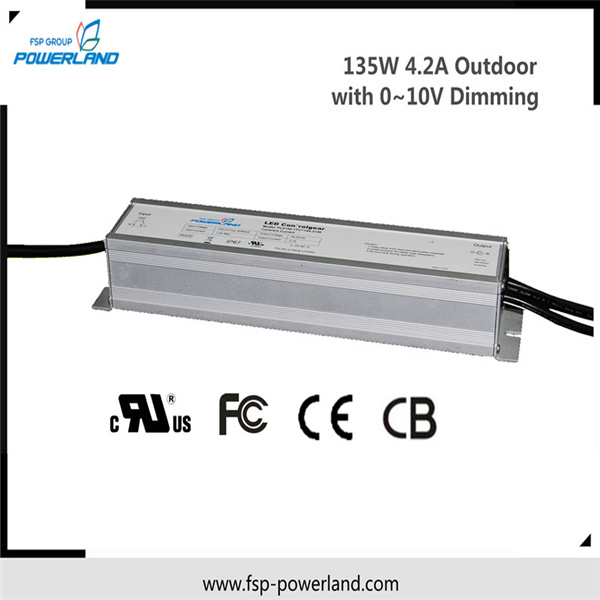

135W 4.2A Outdoor Waterproof IP67 Constant Current Dimmable LED Driver

PLD135-1TCF14A-4200 offers constant current drivers with wide-range dimmable output
current and 90~305Vac universal input.
The output current of this series is up to 4.2A ,and designed for 0-10V dimming applications

Applications
Outdoor LED lights
Street lights, high bay and low bay lights, LED panels
Features
100,000 hours lifetime at 70oC Tcase

7 years warranty at 70oC Tcase
IP67 ingress protection
Min. operating temperature @ -25oC

Constant current output
Compatible with 0-10V dimming (A version)
Universal input voltage: 90~305Vac

Safety according to UL8750 &EN61347-2-13
Surge voltage rating: L-N 2kV, L/NGND 4kV

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD135-1TCF14A-4200
Output Voltage	24~32V
Output Current	4.2A
Dimming	0-10V Dimming
Output Power	135W
Max. Current Ripple	200mA
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.8A
Max. Input Power	156W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	35V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	2kV/4kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	230x49x40.5 mm (9.06x1.93x1.59 inch)
Mounting Length	243 mm (9.57 inch)
Overall Length	258 mm (10.16 inch)
Weight	1.0 kg (2.2 lb)
Life Time	100,000 hours @ full load, 70oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

Performance Characteristics

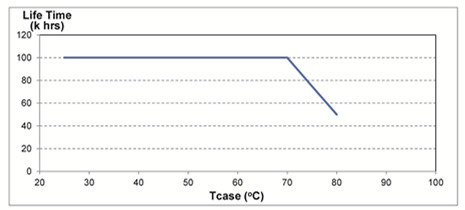

Life Time vs. Case Temperature

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
