| Prod Model: |
YDSSOC6UK-2S51-2UB |
| Name: |
USB Wall Socket |
| Material: |
High Quality PC Fire-Proof Material |
| Input: |
AC 100-250V 16A |
| Spec: |
with 1 EU Socket 2 USB Charging Ports |
| USB Port: |
5V 2.1A |
| Color: |
White |
| Extra Bottom Case: |
Extra Bottom Case with Extra Costs0.3USD/PCS |
| Size: |
86*86*35mm |
| Warranty: |
1 Year |
| Grounding: |
Standard Grounding |
| Type: |
Without Switch |
| Application: |
Residential/General-Purpose |
| IP Rating: |
IP67 |
| Rated Current: |
13A |
| Certification: |
FCC |
Product Description

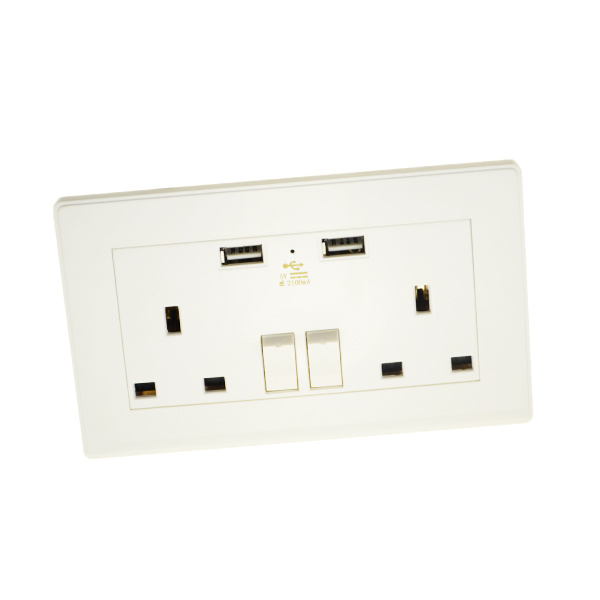

South African USB Wall Socket with Double USB Ports socket
| Model No. | YDSSOC6UK-2S521-2UB |
|---|
| Dimension | 146*85*45mm |
|---|
| Mental | Phosphor Bronze |
|---|
| Plastic | Flame Retardant PC Plastic |
|---|
| Operating ambient temperature | -10ºC~+40ºC |
|---|
| Brand | OEM &ODM |
|---|
| Rated Voltage | 90V-250Vac |
|---|
| Rated Current | 16A |
|---|
| Working Frequency | 50/60Hz |
|---|
| USB Output | 5V 21000MA |
|---|
| USB Ports | Dual |
|---|
| Countries | Global Zone |
|---|
| Certificates | CE , RoHS |
|---|
| Application | All Smart Devices builds in USB Power supply |
|---|
| Capacity Monthly | 5,00,000pcs |
|---|
Key Features:
1.Double UK USB Wall Socket
2.High quality PC fire-proof material
3.Input:AC 100-250V 13A
4.With 2 UK sockets
5.With 2 USB charging Ports
6.USB Port:5V 2.1A
7.With 2 Switch and 2 LED lights
8.Color:White
9.Charing for iPod ,iPhone , iPad , GPS , smart phone and tablets charge,etc
1).LG PC Flame Retardant Material, Fire Protection Rating.
2).Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..
3).Lightning strike, Over-Voltage And Over Current Protection.
Product Features:
1).Passed CE,RoHS,certificates.
2).LG Brand Flame Retardant PC Plastic, UL94V0 Fire Protection Rating.
3).Metal shrapnel adopt Phosphor Bronze ( Thickness :0.6-
0.7mm,Wildth 6.3mm).Over 40,000 Times Plug And Unplug Testing, 12 Years no any looseness..
4).Based on Surge design, Lightning strike, Over-Voltage And Over Current Protection.
5).Built-In high Proformance intelligent IC charging module,which has Over Current/Voltage and short circuit Protection.Two USB Ports can auto identify the Loading.So a s to ensure the charging quality & Extend the Battery life.
6).Over 8 Hrs Burning Testing And USB Passed 3000V Safety Testing to Ensure the product quality.
Application
Installation Procedure and Attention:
Step 1, Cut off AC power, open the USB socket outlet faceplate, take down 2 screws with screw driver.
Step 2, According the connection diagram to wiring well:Plug the Red, Blue and Green wires into L,N, E
Holes separately and then lock it tightly with screw driver.
Step 3, Flat place onto 86 type base socket, and screw tight two screws with screw driver, Close the faceplate of USB socket.
Step 4, AC power on, to check the function of USB ports, connect mobile phone via USB cable into USB
Port, the phone will detect the USB connection.
Step 5, Connect USB charger to smart products, the indicated LED onto smart products will be
Illuminated, the battery show charging logo is normal, if no charging logo show out, please double check the connection or change another USB cable to try.After battery is charged fully, the indicated,LED will be off.
FAQ
Q1:Are you manufacturer or trading company or agent?
We are professional manufacturer with 8 years experience in electronic industry since 2007 in
Shenzhen, China.
Q2:DO you accept small quantity orders?
Yes, we accept small quantity sample orders for testing, but not for free, and customers should pay
For samples and freight.However we can return back the costs once large quantity orders are set.
Q3:Do you accept ODM & OEM?
OEM and ODM are highly welcome.We can customize the products according to customers'
Detailed requirements.
Q4:How about the quality of your products?
Quality is the core.All of our products have OVP, OCP, OLP, high temperature and short circuit
Protection.CE CB ROHS FCC ERP are all approved by authoritative labs.
Q5:How about the shipment and payment?
DHL, UPS, Fedex, TNT, EMS or air transportation for small quantity;Large quantity by sea.
T/T (30% deposit in advance), L/C, Western Union, Money Gram and Paypal are all accepted.
Q6:How about the after-sales services?
The nominal failure rate is under 3‰.We accept replacement or refund within 30 days after you
Received the products for the original quality matters or other problems caused by us according
To the sales contract.
