13s 15A PCB/BMS with Bluetooth for Lithium Battery

Name: 13s 15A PCB/BMS with Bluetooth for Lithium Battery
Brand: all-electronics-online.com
SKU: 733952692
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 0.9/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Capacity:	2600mAh
Type:	Lithium-Ion Batteries
Usage:	Lighting
Discharge Rate:	High Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Nominal Voltage:	3.2V
Electrolyte:	Lithium Ion

Product Description

Basic Info

Application: BMS for Battery

Dimension: 75*55*15mm

Additional Function: Connect Bluetooth to Monitoring The Battery Status

Brand: Bb

Continuous Discharge Current: 15A

Trademark: BB

Transport Package: Standard Carton Package

Specification: Li-ion 13S15A BMS

Origin: Shenzhen

HS Code: 8534009000

Product Description

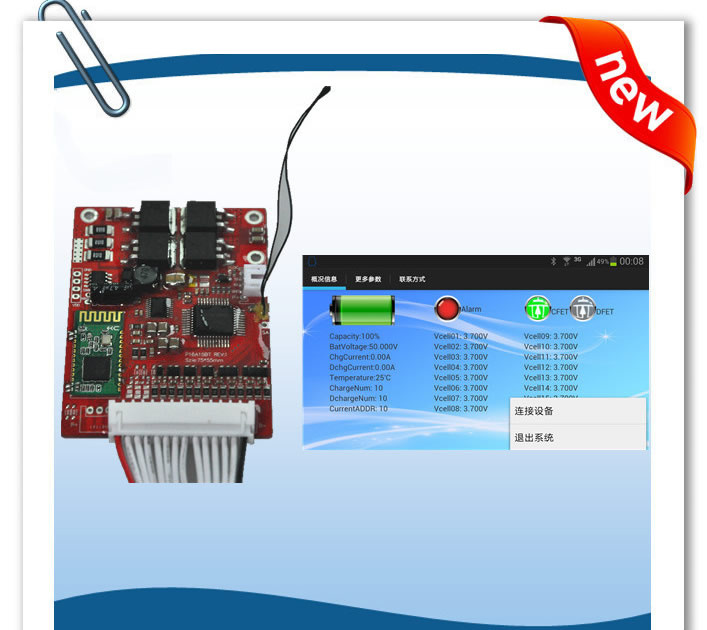

New arrival 13S 15A PCB/BMS with bluetooth for lithium battery

Important instructions:
1. Range of application
<350W load
2. Electronic Core requirement
Single Cell Internal Resistance≤35MR.
3. Artcraft Requirement
The whole group cells DC circuit current≥200A(3.6V testing voltage).
4. Temperature requirement
Store Temperature:-25°C~85°C
Working Temperature:-20°C~75°C
5. Other requirement
1) Not allowed to use in cascade
2)For the first time PACK,may cause not discharging,need to charge it to active.
3) Welding order as B-,B1,B2...B+
4)While welding,must use grounding soldering iron.
5)The soldering iron must control as 360~400degree celsius.
6Forbid to use P- as charging port,because while P- used as charging port,the cell group without protection.
7)Must doing well on anti-static,waterproof,dust proof;Well protect the protecting board to avoid striking or extrucsion.

Application Range:
Lithium ion, lithium polymer battery ,etc. Can be rechargeable lithium battery pack

Features:
1)Charger Recognize:When misconnect high voltage charger, charging is prohibited
2)Using time preset:can do preset on time limitation by PC,when reach time limitation turn off output.
3) Recycle time:500 recycle times,then turn off output.
4) Voltage,current,temperature,power,cycles and other data can be read by bluetooth.
5)Bluetooth can read speed power, speed, range, etc. And with overspeed alarm, low battery alarm, range, and other functions

Specification

Details

Min.

Typ.

Max

Error

Unit

Battery Gas

3.7V lithium cell

Battery Link

13S

Input Charging Voltage

54.6

±1%

Input Charging Current

<10

Output Discharging Voltage

36.4

Continuous Output Discharging Current

≤15

Ambient
Condition

Operating Temperature

-25

ºC

Humidity (No Water-Drop)

90%

Storage
Condition

Temperature

-40

ºC

Humidity (No Water-Drop)

90%

Protection Parameters (for Individual Cell)

Over-Charge Voltage Protection (OVP)

4.25

±25mV

Over-Charge Voltage Protection Release (OVPR)

4.10

±25mV

Over-Discharge Voltage Protection (UVP)

2.80

±50mV

Over-Discharge Voltage Protection Release
(UVPR)

3.00

±50mV

Over-Current Discharge Protection (OCDP)

40A

Latency

400mS

Over-Current Discharge Protection Release

Release load

Short circuit current protection

Enable

Short circuit current protection delay time

100

300

±100

Short circuit protection Release

Release load

Temperature protection

High temperature

external

±5ºC

Low Temperature

-25

external

±5ºC

ºC

self-consuming

≤1000

dormant self-consuming

≤100

(MOS-RDS)
Main loop electrify resistance

≤30

mΩ

PCBA Size

75×55×15

Connection:

P-		The negative terminal of the pack for discharge.
CH-		The negative terminal of the pack for charge.
B-		1 Connected to the negative terminal of Cell 1.
	BC13	13 Connected to the positive terminal of Cell 13.
	BC12	12 Connected to the positive terminal of Cell 12.
	BC11	11 Connected to the positive terminal of Cell 11.
	BC10	10 Connected to the positive terminal of Cell 10.
	BC9	9 Connected to the positive terminal of Cell 9.
	BC8	8 Connected to the positive terminal of Cell 8.
	BC7	7 Connected to the positive terminal of Cell 7.
	BC6	6 Connected to the positive terminal of Cell 6.
	BC5	5 Connected to the positive terminal of Cell 5.
	BC4	4 Connected to the positive terminal of Cell 4.
	BC3	3 Connected to the positive terminal of Cell 3.
	BC2	2 Connected to the positive terminal of Cell 2.
	BC1	1 Connected to the positive terminal of Cell 1.
	BC0	1 Connected to the negative terminal of Cell 1.

We supply bluetooth bms for silver fish battery, bottle battery, rear rack battery, frog battery, bottle battery and shrink battery packs. Through the bluetooth, you can read the data of the rest capacity, voltage, capacity, current, temperature and so on of the battery pack, which is very convenient to monitoring the battery status.
