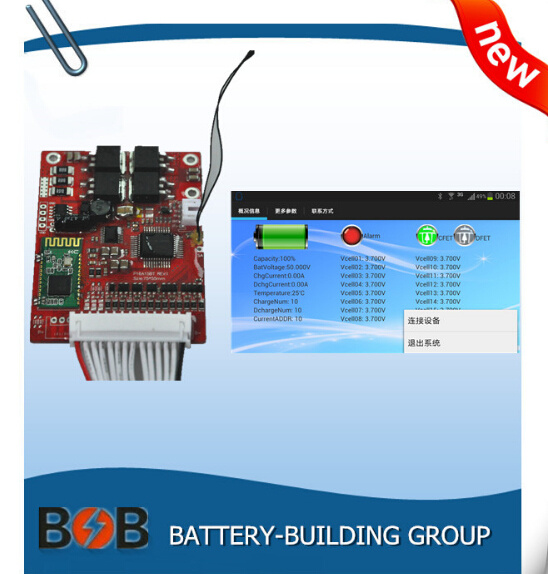

13s 15A PCB/BMS with Bluetooth for Lithium Battery
| Price: |
US $ 25/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
BB-PCML13S15A |
| Metal Coating: |
Silver |
| Mode Of Production: |
SMT |
| Layers: |
Single-Layer |
| Certification: |
RoHS, ISO |
| Customized: |
Customized |
| Dimension: |
75*55*15mm |
| Additional Function: |
Connect Bluetooth to Monitoring The Battery Status |
| Usage: |
BMS for Battery |
Product Description
New arrival 13S 15A PCB/BMS with bluetooth for lithium batteryImportant instructions: 1. Range of application<350W load2. Electronic Core requirementSingle Cell Internal Resistance≤35MR.3. Artcraft RequirementThe whole group cells DC circuit current≥200A(3.6V testing voltage).4. Temperature requirementStore Temperature:-25°C~85°C Working Temperature:-20°C~75°C5. Other requirement1) Not allowed to use in cascade2)For the first time PACK,may cause not discharging,need to charge it to active.3) Welding order as B-,B1,B2...B+4)While welding,must use grounding soldering iron.5)The soldering iron must control as 360~400degree celsius.6Forbid to use P- as charging port,because while P- used as charging port,the cell group without protection.7)Must doing well on anti-static,waterproof,dust proof;Well protect the protecting board to avoid striking or extrucsion.Application Range:Lithium ion, lithium polymer battery ,etc. Can be rechargeable lithium battery packFeatures:1)Charger Recognize:When misconnect high voltage charger, charging is prohibited 2)Using time preset:can do preset on time limitation by PC,when reach time limitation turn off output.3) Recycle time:500 recycle times,then turn off output.4) Voltage,current,temperature,power,cycles and other data can be read by bluetooth.5)Bluetooth can read speed power, speed, range, etc. And with overspeed alarm, low battery alarm, range, and other functionsSpecification
Details | Min. | Typ. | Max | Error | Unit |
Battery Gas | 3.7V lithium cell | |
Battery Link | 13S | |
Input Charging Voltage | | 54.6 | | ±1% | V |
Input Charging Current | | <10 | | | A |
Output Discharging Voltage | | 36.4 | | | V |
Continuous Output Discharging Current | | ≤15 | | | A |
Ambient
Condition
|
Operating Temperature | -25 | 25 | 70 | | ºC |
| |
Humidity (No Water-Drop) | 0% | | 90% | | RH |
Storage
Condition
|
Temperature | -40 | | 85 | | ºC |
| |
Humidity (No Water-Drop) | 0% | | 90% | | RH |
Protection Parameters (for Individual Cell) |
Over-Charge Voltage Protection (OVP) | | 4.25 | | ±25mV | V |
Over-Charge Voltage Protection Release (OVPR) | | 4.10 | | ±25mV | V |
Over-Discharge Voltage Protection (UVP) | | 2.80 | | ±50mV | V |
Over-Discharge Voltage Protection Release
(UVPR) | | 3.00 | | ±50mV | V |
Over-Current Discharge Protection (OCDP) | | 40A | Latency | 400mS | |
Over-Current Discharge Protection Release |
Release load |
Short circuit current protection |
Enable |
Short circuit current protection delay time | | 100 | 300 | ±100 | uS |
Short circuit protection Release |
Release load |
| Temperature protection | High temperature | 75 | external | ±5ºC | Low Temperature | -25 | external | ±5ºC | ºC |
| self-consuming | ≤1000 | uA |
| dormant self-consuming | ≤100 | uA |
(MOS-RDS)
Main loop electrify resistance | ≤30 | mΩ |
| PCBA Size | 75×55×15 | mm |
| P- | The negative terminal of the pack for discharge. |
| CH- | The negative terminal of the pack for charge. |
| B- | 1 Connected to the negative terminal of Cell 1. |
| | BC13 | 13 Connected to the positive terminal of Cell 13. |
| BC12 | 12 Connected to the positive terminal of Cell 12. |
| BC11 | 11 Connected to the positive terminal of Cell 11. |
| BC10 | 10 Connected to the positive terminal of Cell 10. |
| BC9 | 9 Connected to the positive terminal of Cell 9. |
| BC8 | 8 Connected to the positive terminal of Cell 8. |
| BC7 | 7 Connected to the positive terminal of Cell 7. |
| BC6 | 6 Connected to the positive terminal of Cell 6. |
| BC5 | 5 Connected to the positive terminal of Cell 5. |
| BC4 | 4 Connected to the positive terminal of Cell 4. |
| BC3 | 3 Connected to the positive terminal of Cell 3. |
| BC2 | 2 Connected to the positive terminal of Cell 2. |
| BC1 | 1 Connected to the positive terminal of Cell 1. |
| BC0 | 1 Connected to the negative terminal of Cell 1. |
