14.4V 1.2A LiFePO4 Battery Charger

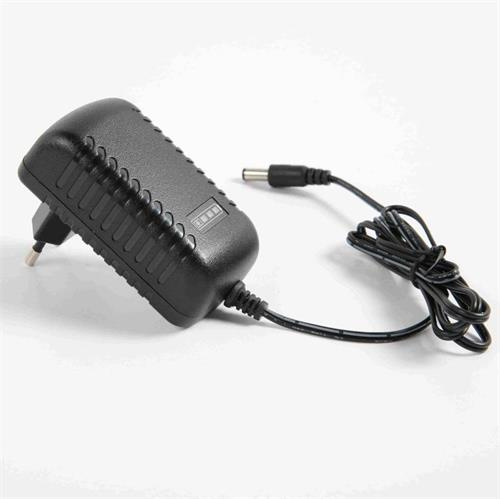

Name: 14.4V 1.2A LiFePO4 Battery Charger
Brand: all-electronics-online.com
SKU: 772428785
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 4.50/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	P2012-F4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Black
Customized:	Yes
Recovery Function:	Yes
Short Circuit Protection:	Yes
LED Dispaly:	Yes
Reverse Potection:	Yes
MCU Control:	Yes
Delivery Date:	3-4weeks
Type:	Li-Polymer Battery
Charger Type:	LiFePO4 Battery Charger
Charger Application:	Aeromodelling, Electric Toy, Ligting
Nominal Voltage:	14.4V
Compatible Battery Type:	12.8V
Size:	65 X 61 X 25mm
Socket Type:	UL, VDE, PSE, UK, SAA...

Product Description

P2012-F4 Smart Battery Charger for 4S 12.8V LiFePo4 Battery

Specification
Input: 100~240V
Output: 14.4V 1.2A
Charge Process: CC(bulk)-CV
Charger Indicator: Bi-color LED, RED/GREEN
Output Protections: Short-circuit, Reverse Polarity...
Safety Approval: CE UL PSE
Size: 83 x 43 x 30mm
Suit for Battery: 12.8 Volt (4Cells) 2~6Ah LiFePo4 Battery Charger

Feature:

Standard CC & CV Charging process.

Designed for 12.8V 4s 4~14Ah LiFePO4 battery.

With Bi-color LED indicator lamp, easily know the charging process, Red for charging, Green for finished.

Protection mode for output connectors shorted error.

UL, CE approval (EN60335-2-29 and UL1310)

Specification

Input Voltage	100-240VAC, 50-60Hz
Input Current	0.2A rms
Back current drain	1.3mA
P/N Bulk voltage Limited	P2012-F1	P2012-F2	P2012-F3	P2012-F4
C.V. Voltage for LiFePo4	3.6V+-1%	7.2V+-1%	10.8V+-1%	14.4V+-1%
C.C. charge current	1.0A~2.0A+-6%	1.0A~2.0A+-6%	0.7A~1.5A+-6%	0.6A~1.3A+-6%
Red/Green LED condition	I<0.2A	I<0.2A	I <0.15A	I<0.13A
Operate Temperature	-20ºC~40ºC
Cooling	Natural convection. Do not cover the charger.
Charge principle	Auto 2 stages: CC-CV
Battery type	All types of 12.8V 4S LiFePO4 battery pack
Battery capacity	2Ah--14Ah
Size	81 x 43 x 30mm

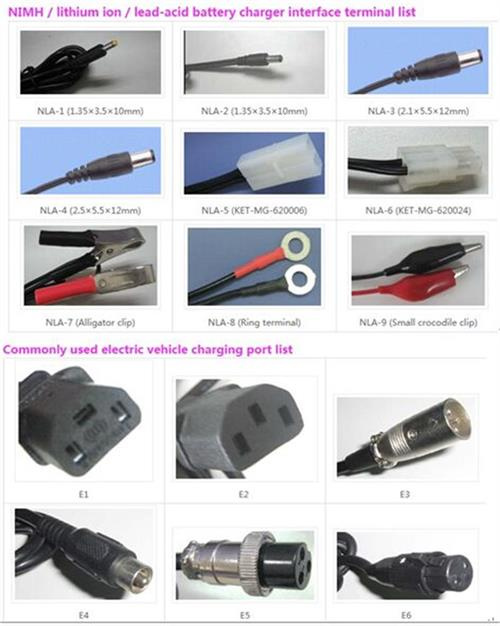

Output cable and plug	1.2 meter 2xAWG22#, UL2468 wire, 5.5x2.1x10mm plug
Input plug	US or VDE
Enclosure	ABS+PC Plastic housing
Weight	120g
