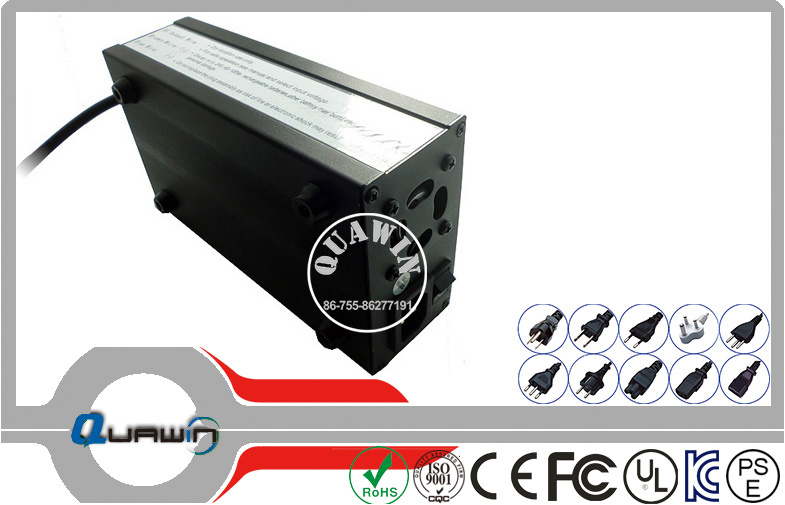

14.6V 20A Smart Car LiFePO4 Charger

Name: 14.6V 20A Smart Car LiFePO4 Charger
Brand: all-electronics-online.com
SKU: 784734975
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW128-200-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	AC100-240V 50/60Hz
Voltage:	14.6V
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Charger Type:	Electric Charger
Type:	LiFePO4 Battery
Nominal Voltage:	7.3V
Socket Type:	as Per Request

Product Description

4 Cells 12.8V lifepo4 Battery Pack Charger (14.6V 20A)

Quick Detail:
Brand Name:QUAWIN
Model Number:QW128-200-F
Use:4 Cells 12.8V lifepo4 Battery Pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 14.6V
Color:Black
Input voltage:AC 90~132V or 180~264V or 100~240V 50/60Hz with PFC
Output voltage:14.6V
Output current:20A
Output power:292W
Charge mode:MCU control charging process to avoid over charge
Output Connector:Alligator Clip,SR175A Output Plug,SB175A Output Plug,SB50A Output Plug,Custom

Packaging:
inner package: white box/polybags/at your request
outer package:carton

Specifications:
4 Cells 12.8V lifepo4 Battery PACK

Features:
? Charging mode:CC-CV(Constant Current-Constant Voltage)
? High efficiency and low power consumption
? Stabilized output and low noice
? Efficiency(at 100% load): >=85%
? Operating temperature:-10C ~ 45C
? Storage temperature:-40C ~ 75C
? Operating humidity:5%~90%RH

Specification:
? Input: AC 90~132V or 180~264V or 100~240V 50/60Hz with PFC
? Output: DC 14.6V
? Charging current: 20A
? Weight: 1500g(only body)
? Dimension:203*106*55mm or 213*106*55mm
Safety protections:
? Over Voltage protection
? Short Circuit protection
? Polarity error protection
? Over power protection

LED Indicator:
? GREEN Light ON: fully charged or no connected.
? BLUE Light flash: battery is being charged.
? RED Light ON: Charger under protection (over temperature protection, output short-circuit protection, reverse polarity protection, output over-voltage protection).

ITEM	QW128-160-F	QW128-170-F	QW128-180-F	QW128-190-F	QW128-200-F
Output voltage:	14.6V	14.6V	14.6V	14.6V	14.6V
Rated output current:	16A	17A	18A	19A	20A
Output power:	233.6W	248.2W	262.8W	277.4W	292W
ITEM	QW128-210-F	QW128-220-F	QW128-230-F	QW128-240-F	QW128-250-F
Output voltage:	14.6V	14.6V	14.6V	14.6V	14.6V
Rated output current:	21A	22A	23A	24A	25A
Output power:	306.6W	321.2W	335.8W	350.4W	365W
ITEM	QW160-160-F	QW160-170-F	QW160-180-F	QW160-190-F	QW160-200-F
Output voltage:	18.25V	18.25V	18.25V	18.25V	18.25V
Rated output current:	16A	17A	18A	19A	20A
Output power:	292W	310.25W	328.5W	346.75W	365W
ITEM	QW160-210-F	QW160-220-F	QW160-230-F	QW160-240-F	QW192-160-F
Output voltage:	18.25V	18.25V	18.25V	18.25V	21.9V
Rated output current:	21A	22A	23A	24A	16A
Output power:	383.25W	401.5W	419.75W	438W	350.4W
ITEM	QW192-170-F	QW192-180-F	QW192-190-F	QW192-200-F	QW224-140-F
Output voltage:	21.9V	21.9V	21.9V	21.9V	25.55V
Rated output current:	17A	18A	19A	20A	14A
Output power:	372.3W	394.2W	416.1W	438W	357.7W
ITEM	QW224-150-F	QW224-160-F	QW224-170-F	QW256-120-F	QW256-130-F
Output voltage:	25.55V	25.55V	25.55V	29.2V	29.2V
Rated output current:	15A	16A	17A	12A	13A
Output power:	383.25W	408.8W	434.35W	350.4W	379.6W
ITEM	QW256-140-F	QW256-150-F	QW288-110-F	QW288-120-F	QW288-130-F
Output voltage:	29.2V	29.2V	32.85V	32.85V	32.85V
Rated output current:	14A	15A	11A	12A	13A
Output power:	408.8W	438W	361.35W	394.2W	427.05W
ITEM	QW320-100-F	QW320-110-F	QW320-120-F	QW352-090-F	QW352-100-F
Output voltage:	36.5V	36.5V	36.5V	40.15V	40.15V
Rated output current:	10A	11A	12A	9A	10A
Output power:	365W	401.5W	438W	361.35W	401.5W
ITEM	QW352-110-F	QW384-080-F	QW384-090-F	QW384-100-F	QW416-080-F
Output voltage:	40.15V	43.8V	43.8V	43.8V	47.45V
Rated output current:	11A	8A	9A	10A	8A
Output power:	441.65W	350.4W	394.2W	438W	379.6W
ITEM	QW416-090-F	QW448-070-F	QW448-080-F
Output voltage:	47.45V	51.1V	51.1V
Rated output current:	9A	7A	8A
Output power:	427.05W	357.7W	408.8W
