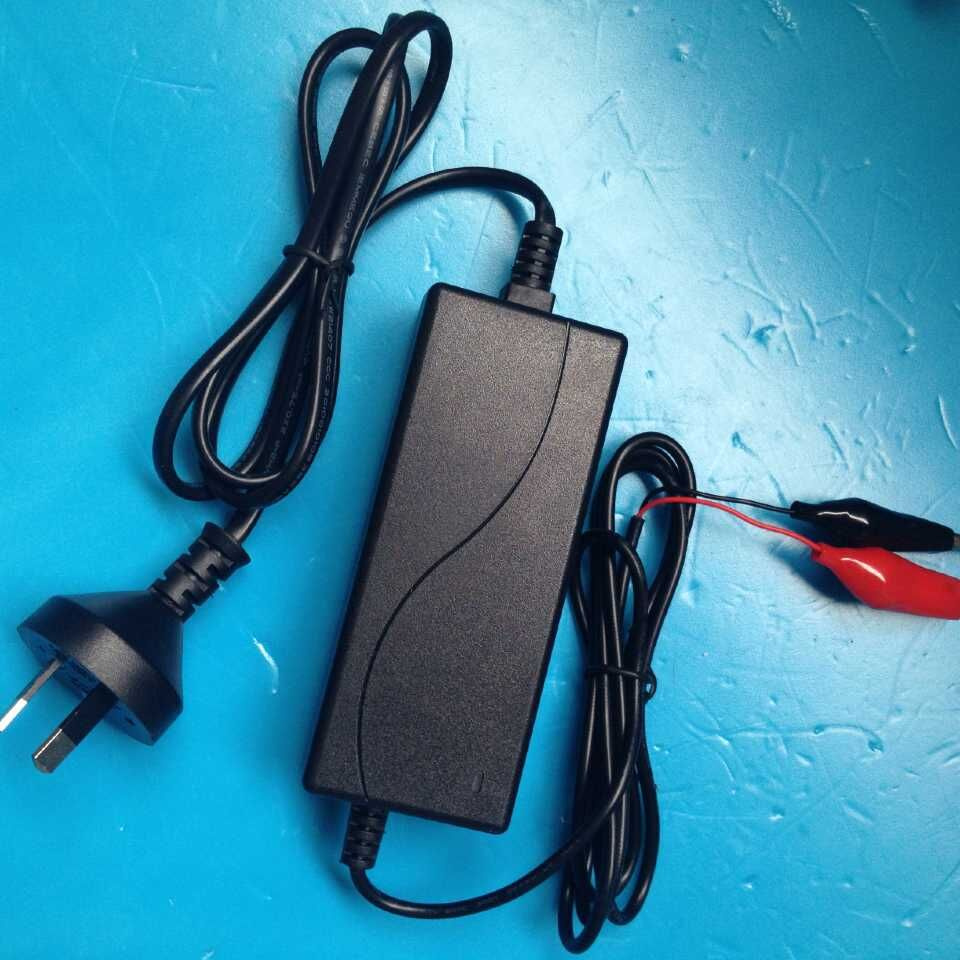

14.7V 12V 1.5A Battery Charger

Name: 14.7V 12V 1.5A Battery Charger
Brand: all-electronics-online.com
SKU: 804484845
Availability: InStock
Rating: 5 (59 reviews)

Price:	US $ 6.00/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW120-015-S
Desktop Type:	Yes
Input Voltage:	AC100-240V 50/60Hz
Packae:	Antistatic Bag /White Box and Standard Export Cart
Warranty:	One Year
Type:	Lithium Battery
Charger Type:	Electric Charger
Nominal Voltage:	12V
Socket Type:	All Plug

Product Description

12v 1.5a car charger lead acid battery charger

Product Descriptions

Model	Lead acid battery charger
Input	100-240Vac 50/60Hz
Input plug(power cords)	EU US UK AUS Korea Japan South Africa plugs(power cable)
Battery voltage	6V/12V/24V/36V/48V/60V
Output	6V2A 12V1.5A
Output Voltage at no load	6.8-6.9V at no load: 6V battery 13.6-13.8V at no load: 12V battery 20.4-20.7V at no load: 18V battery 27.6-27.8V at no load: 24V battery 41.4-42V at no load: 36V battery 54.4-55.2V at no load: 48V battery
Highest Charge Voltage	7.2-7.3V : 6V battery 14.4-14.8V : 12V battery 21.6-22.2V : 18V battery 29.2-29.6V : 24V battery 43.8-44.4V : 36V battery 58.4-59.2V : 48V battery
Charge mode	3-stage Mode: CC---CV--float mode
Led Indicator(Dual Color)	Red---in Charging; Green--Finish charge/ no load
Led Switch current	10-15% of charge current
Safe Protection	Over-load protection Over-current protection
Safe Protection	Short circuit protection Polarity Reverse Protection
Safe Certificate	CE ROHS CB GS FCC UL SAA PSE KC
Efficiency	>80%
Output Connector	DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug.etc
Power Consumption	≤0.5W at Rated Voltage(adapter at no load)
Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
Leakage Current	0.5mA(max) at input 240V AC
Drop Test	0.75m drop test, 6 times
Burn-In Test	100% load, 5hours
MTBF	50,000 hours@ 25°C
Application	UPS, E-bike, Motor, Solar systems, Torch, Lamps.etc.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
