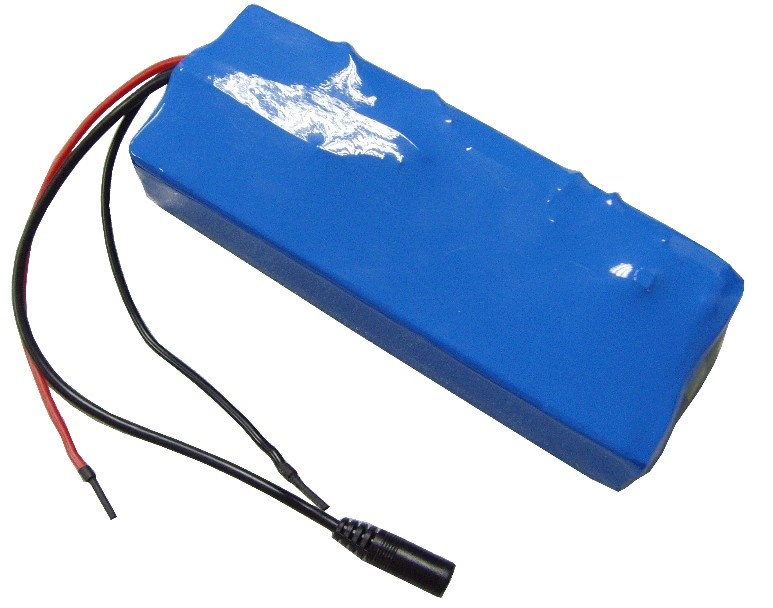

14.8V 10000mAh Li-ion Polymer Battery Pack
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
RBP-L04S10-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Type: |
Lipo Battery |
| Packae: |
Antistatic Bag /White Box and Standard Export Cart |
| Delivery Date: |
15days |
| Warranty: |
One Year |
| Type: |
Lithium-Polymer Battery Pack |
| Connection Mode: |
Series and Parallel |
Product Description
14.8V 10000mAh Li-ion Polymer Battery Pack
Battery pack PCM: PCM-B04S10-187Balance voltage 4.20V±0.025V single cell
Balance current 42±3mAsingle cell
Over-charge detection voltage 4.35V±0.025Vsingle cell
Over-charge release voltage 4.15V±0.05Vsingle cell
Over-charge detection delay time 0.5S—1.5Ssingle cell
Over-discharge detection voltage 2.40V±0.08Vsingle cell
Over-discharge release Voltage 3.0±0.10Vsingle cell
Over-discharge detection delay time 50—150mssingle cell
Over-current detection 15±2Acan adjust
Over-current delay time 5ms—15ms
Battery packPCM: PCM-B04S10-187
| Item | Specification | Remark |
| Nominal capacity | 10000mAh | 0.2C discharge Cell: 9059156 |
| Nominal voltage | 14.8V | 3.7V / 1Cell |
| Charging voltage | 16.8V±0.1V | 4.2V / 1Cell |
| Charging method | CC/CV | (Constant-current and -Voltage with Limited current |
| Standard charging time | 2000mA/7.5hour\5000mA/3hour | Battery capacity÷charging current×1.5 |
| Maximum charging current | 5000mA(0.5C) | 0~+45° |
| Continuous discharge current | 10000mA(1C) | -20~+60° |
| Maximum discharge current | 20000mA(2C) | -20~+60° |
| Discharge cutoff voltage | 11V | 2.75V / 1Cell |
| Short circuit protection | Exterior short circuit | Automatic recovery |
| Internal resistance | ≤100mΩ | AC Impedance 1kHz |
| Cycle life | ≥500 |
|
| Operating temperature | Standard Charge | 0~+45° |
|
| Standard Discharge | -20~+60° |
|
| Temperature range for storage | -20 ~ 20° | less than 1 year | Percentage of recoverable capacity 80 |
| -20 ~ 45° | less than 3 months |
| -20 ~ 60° | less than 1 month |
| UL/UN approved | UL | UN | UL:single cell\UN:pack |
| Weight | 750 gram |
|
| Outline dimension | 162×63×44 | Length x wide x height |
| Pre-wired | 150mm length 18 AWG wires without connector | Red = Positive,Black = Negative |
| Protection Circuit Module |
| Balance voltage | 4.20V±0.025V | single cell |
| Balance current | 42±3mA | single cell |
| Over-charge detection voltage | 4.35V±0.025V | single cell |
| Over-charge release voltage | 4.15V±0.05V | single cell |
| Over-charge detection delay time | 0.5S_1.5S | single cell |
| Over-discharge detection voltage | 2.40V±0.08V | single cell |
| Over-discharge release Voltage | 3.0±0.10V | single cell |
| Over-discharge detection delay time | 50_150ms | single cell |
| Over-current detection | 15±2A | can adjust |
| Over-current delay time | 5ms_15ms |
|
| Battery pack | PCM:PCM-B04S10-187 |
|
|
