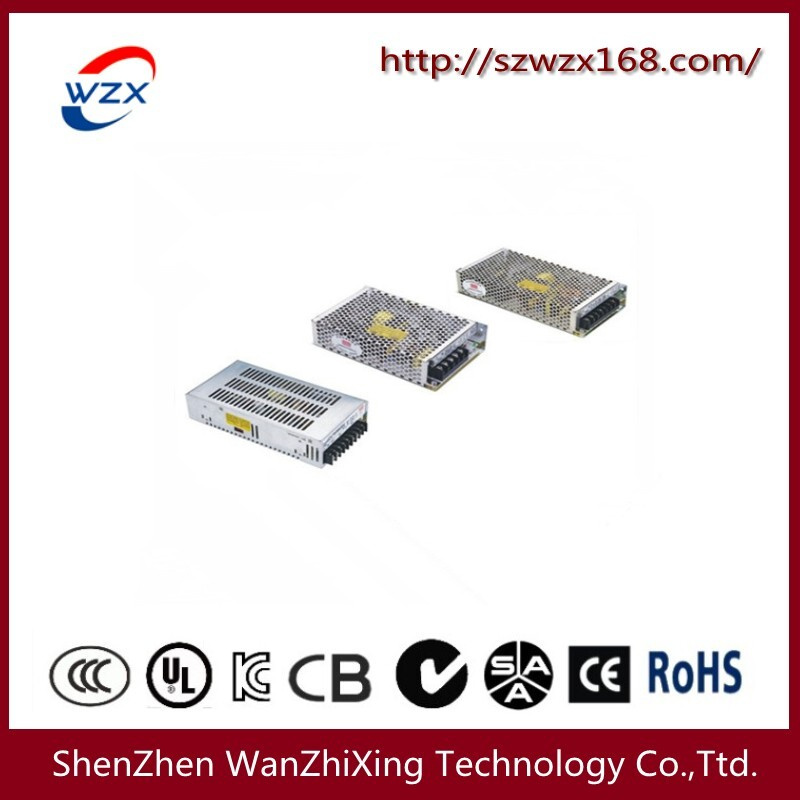

140W LED Power Supply

Name: 140W LED Power Supply
Brand: all-electronics-online.com
SKU: 724111165
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WZX-140
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	200(L)110(W)50(H)Mm
Maximum(Power)Output:	140W
Warranty:	2 Years
Usage:	Light
Output Type:	Dual
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Wzx

Product Description

Details:
140W Standard indoor LED driver(LED power supply), ITE, CLASS B, LPS

2 years warranty
7years of industry experience
3 to 360 watts for your customized requirment

Two year warranty
Average working no trouble >50, 000 hours
Product Electric Parameters

Input specification:

Input voltage
AC90V---264V
Input frequency
47-63Hz
Input surge
20A@120VAC 40A@230VAC

Output Specification:

Output voltage can be adjusted
± 10%
Start-up time
Leq 1S(input230V, Io=100%)
Keep time
More than or equal to 20mS (input230V, Io=100%)
Voltage regulation
(Full load) leq 0.5%

Built-in EMI filter
100% load test
Full range of input voltage
Output voltage accurate and stable
Output over-voltage, over-current and short-circuit protection
Output low ripple and noise

Protection Function

Overload protection
105% - 150% rated power, automatic recovery
Over-voltage protection
105% - 150% of the rated voltage

Safety Certification: FCC CCC CE CB SGS

Insulation intensity:

Input---output
1500VAC/1min
Input---ground
1500VAC/1min
Input---ground
500VAC/1min

Working environment:
Working temperature
- 20 ° ~ 60 ° C / 20% ~ 90% RH (no frost)
Storage temperature
- 40 ° ~ 85 ° C / 10% ~ 95% RH (no frost)
Height above sea level
Leq 2000M

Structure
Size(mm)
200(L)*110(W)*50(H)

Natural cooling air convection
Weight
0.7KG/PCS

Shenzhen Kaijunsheng Electronic Co., Ltd. (Original called Shenzhen Wanzhixing Electronics Co., Ltd. ) is a professional engaged in research and development, production of various kinds of power adapter, charger, switching power supply, industrial power supply and extension socket of private enterprises. It was established in 2003 and located in Shenzhen, China., Through hard work for many of years, has got various related product certification: Just like CE certificate, American UL, FCC, QC3.0 certificate, RoHS, etc., Has passed the ISO9001 quality system certification.

Past more ten years, the company has always been adhering to the concept of innovation, the pursuit of excellence and persevering. And keeping the first to ensure the quality for customers, And we have much more successful cases and experenice to design and development private solutions for some of buyers as their requested in past years.

Finished much more OEM, ODM projects as buyer's design and requiryments, And ensure can be used and promted in their marker. And built the long-term cooperations and releations with several famous enterprises.

At present, our products be used in LED lighting, communications, electric power, industrial control, instrumentation, medical, railway and other high-tech fields in widely.

Company focused on the professional power supply solutions.

*To excellent quality to provide customers with excellent quality and reasonable price products and services

*Adhere to high professional ethics, and achieve mutual benefit and win-win with suppliers

*Build the open management mode, be proud of enterprise employees

Encourage comprehensive innovation, ensure enterprise high energy, excellent design, stable and reliable; Continuous improvement, customer satisfaction

Whole heartedly for the general customer base, create a better tomorrow!

Sincerely welcome domestic and foreign merchants come to visit our company!
