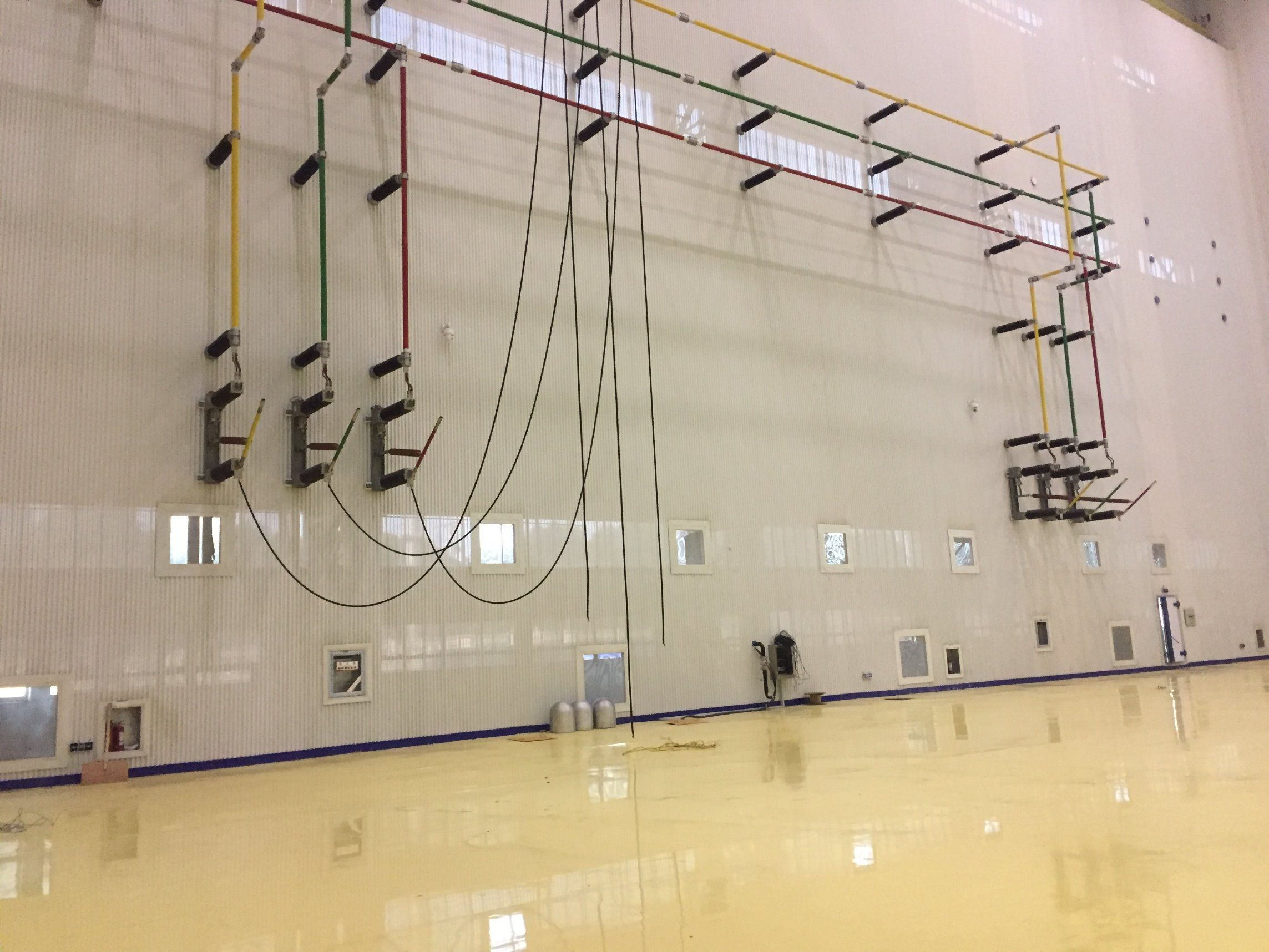

145kv Wall Mounted Disconnector
| Price: |
US $ 5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
GW7 |
| Type: |
High-voltage |
| Structure: |
Three-column Disconnector |
| Operation: |
Electric |
| Certification: |
ISO |
| Installation: |
Wall Mounted |
Product Description
GW7 145kv double breaker Disconnector
1), product classification
Voltage level: 126kV, 145kV, 170kV, 252kV, 363kV, 420kV, 550kV.
Current level: 2000A, 3150A, 4000A, 5000A
Auxiliary earthing switch type: None earthing switch, left earthing switch, right earthing switch, double earthing switch.
2), Main Technical Specifications
| Technical Specifications | | GW7-126 | GW7-145 | GW7-170 |
| Rated voltage kV | | 126 | 145 | 170 |
| The rated current A | | 2000, 3150, 4000 | 2000, 3150, 4000, 5000 |
| Disconnector | Rated peak withstand current kA | 125 | 125,160 |
| Rated short-time withstand current (RMS)kA | 50 | 50 | 50,63 |
| Rated short circuit duration s | 3 | 3 | 3 |
| Grounding switch | Rated peak withstand current kA | 125 | 125 | 125,160 |
| Rated short-time withstand current (RMS)kA | 50 | 50 | 50,63 |
| Rated short circuit duration s | 3 | 3 | 3 |
| Rated short-time power frequency withstand voltage (RMS) kV | to earth | 230 | 275 | 325 |
| across isolating point | 230+70 | 315 | 375 |
| Rated lightning impulse withstand voltage (peak) kV | to earth | 550 | 650 | 750 |
| across isolating point | 550+100 | 750 | 860 |
| open and close busbar for current transfer | open and close current A | 2500 | 2500 | 2500 |
| transfer voltage V | 400 | 400 | 400 |
| open and close times | 100 | 100 | 100 |
| open and close low current | capacitance current A | 1 | 1 | 2 |
| inductance current A | 0.5 | 0.5 | 1 |
| Radio interference level | | less than 500 μv |
| Mechanical life | | 3000 | 3000 | 3000 |
| rated terminal static mechanic load N | longitudinal level | 1250 | 1500 | 1500 |
| Horizontal level | 750 | 1000 | 1000 |
| Vertical force | 100 | 1250 | 1250 |
| rated contact area mm | Longitudinal displacement | 350 | 350 | 350 |
| horizontal displacement | 350 | 350 | 350 |
| Vertical displacement | 300 | 300 | 300 |
| All applied in an altitude of 2000m |
| Technical Specifications | | GW7-252 | GW7-363 | GW7-420 | GW7-550 |
| Rated voltage kV | | 252 | 363 | 420 | 550 |
| The rated current A | | 2000, 3150, 4000, 5000 | 2000, 3150, 4000, 5000 | 3150, 4000,5000 |
| Disconnector | Rated peak withstand current kA | 125, 160 | 125, 160 | 125, 160 | 125, 160 |
| Rated short-time withstand current (RMS)kA | 50, 63 | 50, 63 | 50, 63 | 50, 63 |
| Rated short circuit duration s | 3 | 3 | 3 | 3 |
| Grounding switch | Rated peak withstand current kA | 125, 160 | 125, 160 | 125, 160 | 125, 160 |
| Rated short-time withstand current (RMS)kA | 50, 63 | 50, 63 | 50, 63 | 50, 63 |
| Rated short circuit duration s | 3 | 3 | 3 | 3 |
| Rated short-time power frequency withstand voltage (RMS) kV | to earth | 460 | 510 | 520 | 740 |
| across isolating point | 460+145 | 510+210 | 610 | 740+315 |
| Rated lightning impulse withstand voltage (peak) kV | to earth | 1050 | 1175 | 1425 | 1675 |
| across isolating point | 1050+200 | 1175+295 | 1425+240 | 1675+450 |
| Rated operation impulse withstand voltage(peak) kV | to earth | none | 950 | 1050 | 1300 |
| across isolating point | none | 850+295 | 900+345 | 1175+450 |
| open and close busbar for current transfer | open and close current A | 2500 |
| transfer voltage V | 427 |
| open and close times | 100 |
| open and close low current | capacitance current A | 2 |
| inductance current A | 1 |
| Radio interference level | | less than 500 μv |
| Mechanical life | | 3000 |
| rated terminal static mechanic load N | longitudinal level | 2000 | 2500 | 4000 | 4000 |
| Horizontal level | 1500 | 2000 | 2000 | 2000 |
| Vertical force | 1250 | 1500 | 2000 | 2000 |
| rated contact area mm | Longitudinal displacement | 500 | 500 | 600 | 600 |
| horizontal displacement | 500 | 500 | 600 | 600 |
| Vertical displacement | 450 | 450 | 500 | 500 |
| All applied in an altitude of 2000m |
