| Prod Model: |
JK Submersible Pump Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black, Red, Yellow, Green, Blue |
| Certificate: |
Ce, TUV, UL, VDE, PSE, IEC, CSA |
| Package: |
According to Clients' Requir |
| Feature: |
Excellent Moisture,Abrasion,Grace,Oil Resistance |
| Service Life: |
Expected Life Span≥25years |
| Section Area: |
14AWG12AWG10AWG8AWG6AWG4AWG2AWG1AWG1/0AWG2/0AWG3/0 |
| Advantage: |
UV, Ozone, Hydrolysis, High Temperature Resistant |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Application: |
Industrial |
| Sheath Material: |
PVC/Rubber |
| Insulation Material: |
PVC/Rubber |
| Range Of Application: |
Industrial |
| Brand: |
Jiukai |
Product Description

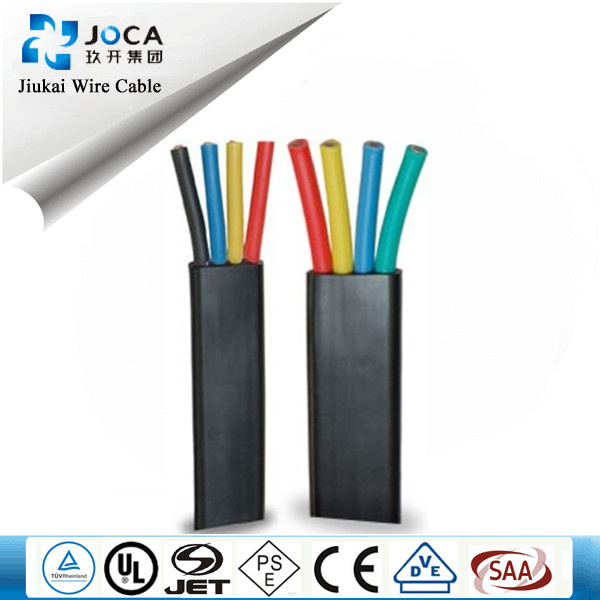

Item: 14AWG Flat Submersible Pump Cable --- Code:JK Submersible Pump Cable Product Description & Parameters Flat Jacketed Submersible Pump Cables Without Ground| CONDUCTOR SIZE | NO OF CONDUCTOR | NOS OF DIA. OF WIRE | CORE DIA. | NOMINAL SHETH THICKNESS | CABLE DIA. |
| AWG | MM | MM |
| 14 | 3 | 41×0.254 | 3.85 | 1.15 | 14.60×6.40 |
| 12 | 3 | 65×0.254 | 4.50 | 1.15 | 16.80×7.40 |
| 10 | 3 | 105×0.254 | 5.30 | 1.15 | 18.70×7.90 |
| 8 | 3 | 168×0.254 | 6.50 | 1.40 | 23.70×9.90 |
| 6 | 3 | 226×0.254 | 8.00 | 1.40 | 28.00×11.40 |
| 4 | 3 | 420×0.254 | 10.10 | 2.00 | 35.50×14.70 |
| 2 | 3 | 665×0.254 | 11.30 | 2.00 | 39.50×16.20 |
| 1 | 3 | 817×0.254 | 13.60 | 2.20 | 45.50×18.30 |
| 1/0 | 3 | 1045×0.254 | 13.60 | 2.20 | 45.50×18.30 |
| 2/0 | 3 | 1330×0.254 | 16.60 | 2.20 | 51.00×20.00 |
| 3/0 | 3 | 1672×0.254 | 18.00 | 2.40 | 60.00×23.50 |
| 4/0 | 3 | 2116×0.254 | 19.80 | 2.65 | 65.00×25.00 |
Flat Jacketed Submersible Pump Cables With Ground| CONDUCTOR SIZE | NO OF CONDUCTOR | NOS OF DIA. OF WIRE | Ground Conductor Size | CORE DIA. | NOMINAL SHETH THICKNESS | CABLE DIA. |
| AWG | AWG | MM | MM |
| 14 | 3 | 41×0.254 | 14 | 3.85 | 1.15 | 18.00×6.50 |
| 12 | 3 | 65×0.254 | 12 | 4.50 | 1.15 | 21.00×7.60 |
| 10 | 3 | 105×0.254 | 10 | 5.30 | 1.15 | 24.30×7.90 |
| 8 | 3 | 168×0.254 | 10 | 6.50 | 1.40 | 29.70×9.90 |
| 6 | 3 | 226×0.254 | 8 | 8.00 | 2.00 | 36.00×11.80 |
| 4 | 3 | 420×0.254 | 8 | 10.10 | 2.00 | 45.10×14.70 |
| 2 | 3 | 665×0.254 | 6 | 11.30 | 2.20 | 50.10×16.20 |
| 1 | 3 | 817×0.254 | 6 | 13.60 | 2.20 | 58.10×19.00 |
| 1/0 | 3 | 1045×0.254 | 6 | 15.60 | 2.20 | 58.10×19.00 |
| 2/0 | 3 | 1330×0.254 | 6 | 18.00 | 2.20 | 66.50×21.50 |

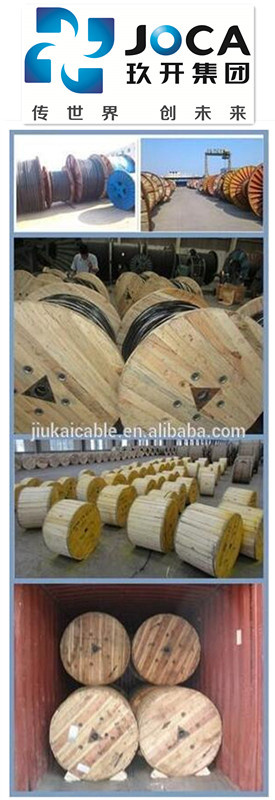

Packaging & Shipping
Certification
Related productItem:Submersible Pump Cables Round PVC/Rubber 3/4 Core Series.
Cross Section(mm2):1.5/2.5/4/6/10/16/25/35/50/70/95.
Generally Conforming To:CENELEC HD21,IEC60227,BS6500,DIN VDE0281,IS694.
Application: For continuous use in deep well to supply power to submersible pumps down to depth of 500 meters. Why Choose US1.Jiukai sends all the items with Outgoing Quality Inspection Report;
2.The copy of TUV certification will be sent along with the products;
3.We guarantee100% good quality when the products are sent out of factory;
4.Jiukai is ship to world wide;
5.Most orders ship within 7 days on payment received;
6.We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days;
7.Once we shipped the products,our after-sale service will send you the tracking number;
8.If your item is not as described or faulty when you receive it,we will send replace it for you with no additional charge;
9.If the item is found non-defective,the item will be sent back to the buyer at buyer's expense. Company Information
FAQQ:How long is the product's service life?
A: Very long service life more zhan 25 years at 90ºC
Q:What are the product's characteristics?
A:1.UV,ozone and hydrolysis resistant
2.High temperature resistant,the materials do not metl or flow
3.Good cold flexibility
Q:Scope of application?
A:Compatible to all popular connectors
Q:What is the size of your company?
A:JOCA holding group is an enterprise group, integrated research, manufacture & trade.
The group has he group total registered capital RMB 250 million & occupied area 1800 thousand sqm including building area 1000 thousand sqm.
The group has more than 800 sets nowadays domestic & foreign advanced cable equipment, yearly production capacity RMB 1.6 billion,600 employees and nearly domestic & overseas representative offices or branch companies.
Subsidiary company Shanghai Jiukai Wire & Cable Co., Ltd, Jiukai Communication Technology (Shangshai) Co., Ltd & Wuxi City Qunxing Wire & Cable Co., Ltd are fully invested Wholly owned companies by JOCA group in cable, telecommunication & integrated general wiring industry.
Q:What is the turnover of the company?
A:Our turnover was 7 billion last year.
Q:What kind of certifications do you have?
A:Such as China CCC certificate,US UL certificate,European Union CE Certificate,German TUV,Quality system certification certificate ISO9001:2000,Japanese Standard PSE certificate and so on,
And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 " and so on.
Q:How long solar cable can be loaded in one 20" container?
A:Can load:1×4mm² solar cable 250km; 1×6mm² solar cable 200km;1×10mm² solar cable 120km;1×16mm² solar cable 80km;2×4mm² solar cable 128km;2×6mm² solar cable 80km.
Q: Does the company take relevant exhibition ?
A:Yes,of course!We have taken relevant exhibition in Australia,Japan, Thailand, the united Arab emirates,Mexico
Contact US| Name | Cathy |
| Tel/Mob | 0086-21-57186991
0086-15216837384 |
| Your enquiry will be highly appreciated! |
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler

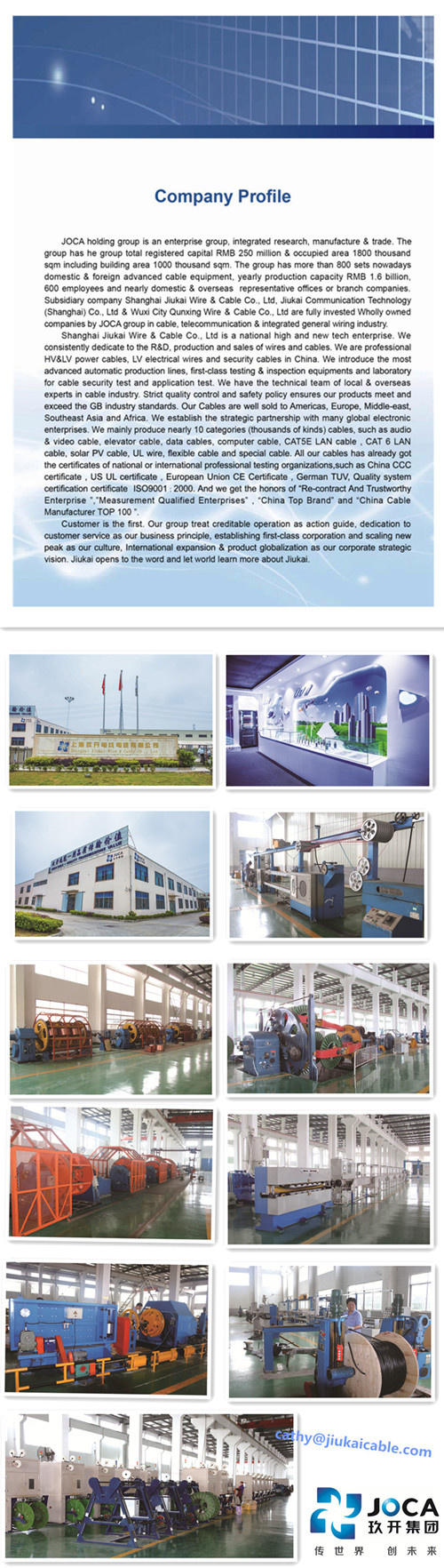

Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
