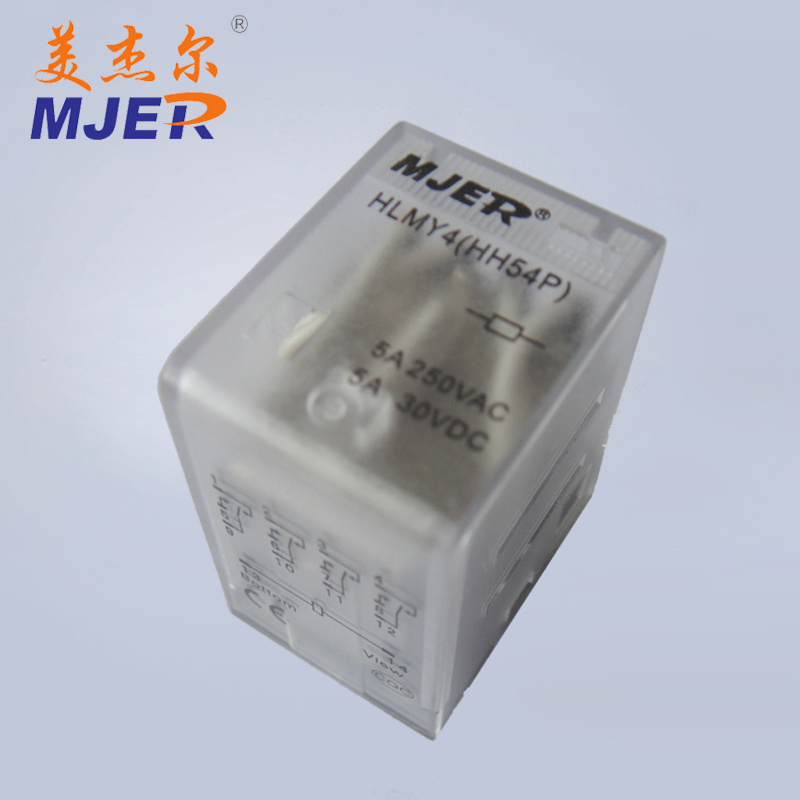

14p General Purpose Relay/Industrial Mini Relay, Mini Electromagnetic Relay (HLMY4/HH54P)
| Price: |
US $ 0.2-2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HLMY4/HH54P |
| MOQ: |
15PCS |
| Working Power: |
12/24VDC,24/110/220/380V |
| Dimension: |
Null |
| Working Method: |
on Delay |
| Lead Time: |
15days |
Product Description
Product Description:| Product Model | HH52P (MY2NJ) |
| Outline Dimension(L×W×H) (mm) | 27.5×21×35.5(mm) |
| Contact Form | 2Z,2C |
| Initial Contact Resistance | 50mΩ (1A 6VDC) |
| Coil Voltage | 5VDC~110VDC; 6VAC~240VAC |
| Operate Time (at nomi. Volt) | 25ms |
| Release Time (at nomi. Volt) | 25ms |
| Coil Power(W) | 0.9W, AC:1.2VA |
| Contact Rating | 5A 250VAC/30VDC |
| Insulation Resistance | 1000MΩ,500VDC |
| Dielectric Strengh | Between Open Contact | 1000VAC 1min. |
| Between Coil and Contact | 1500VAC 1min. |
| Electrical Life | 1×105 |
| Mechanical Life | 1×107 |
| Max. Switching Voltage | 250VAC/30VDC |
| Max. Switching Current | 7A |
| Max. Switching Power | 210W/1750VA |
| Impact Resistance | Stability 100m/s2 Intensity 1000m/s2 |
| Humidity | 98% R.H.+40% |
| Temperature Range | -55~+70°C |
| Vibration Resistance | 1mm 50~55Hz |
| Construction | Dust vover |
Description:The HH52, 53 and 54 are a series of miniature general purpose relaysspecially designed for users demanding small size, sturdy construction andhigh electrical capacity. Mechanisms are furnished in polycarbonate dust-proofenclosures and are recommended for a multitude of electrical control applications for their reliability andcompact size.Continuous duty coils, either AC or DCare available for voltages up to 240V AC or 120V DC.Contacts can be supplied in 2PDT, 3PDT, 4PDT arrangements.Continuous current ratings are 3, 5 and 7 Amps. Many terminal types are available for solder,plug-in or printed circuit board mounting.Features:3, 5 and 7 Amp. contacts2PDT, 3PDT and 4PDTReliable operation, long service lifeHigh dielectric strengthSolder, PC board, wire wrap andscrew terminal socketAC or DC coilsBarriered contacts for opposite polarity availableDust proof enclosures
