| Prod Model: |
PCM-L14S30-200(14S) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
4.2V/Cell |
| Current: |
16A |
| Over Charge Detection Voltage: |
3.8~4.4V(Can Adjust) |
| Over Charge Detection Delay Time: |
0.5~2.5s |
| Over Charge Release Voltage: |
3.8~4.4V(Can Adjust) |
| Over Discharge Detection Voltage: |
1.9~3.1V(Can Adjust) |
| Over Discharge Detection Delay Time: |
50~300ms |
| Over Discharge Release Voltage: |
1.9~3.1V(Can Adjust) |
| Over Current Detection Voltage: |
0.6V |
| Over Current Detection Current: |
20~100A |
| Customized: |
Non-Customized |
| Condition: |
New |
| Metal Coating: |
No |
| Mode Of Production: |
DIP-SMT |
Product Description

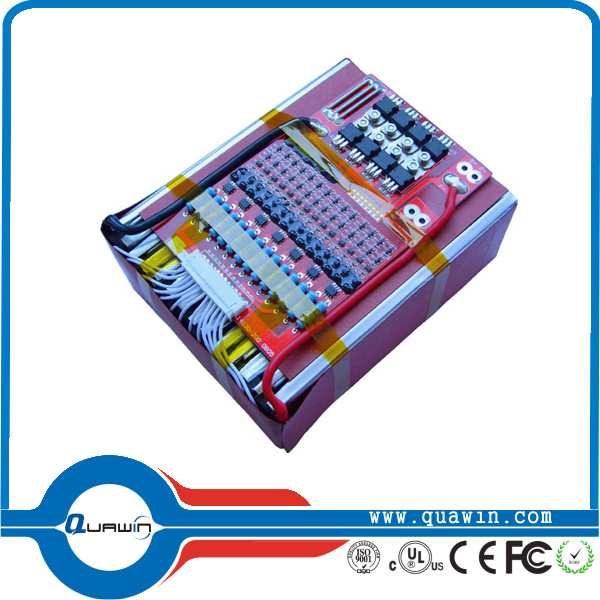

Protection Circuit Module For 14S Li-ion/Li-polymer/LiFePO4 Battery PackMaximal continuous charging and discharging current is 16A
|
5 | Over-Current Protection | Over current detection voltage | 0.6V |
| Over current detection current | 20~100A |
| Detection delay time |
1~50ms
Release conditionCut load6Short ProtectionDetection conditionExterior short circuitDetection delay time200-500usRelease conditionCut load7ResistanceProtection
No. | Test item | Criterion | | 1 | Voltage: | Charging voltage: | CC/CV:
Li-ion/Li-polymer(4.2V/cell);
LiFePO4(3.6V/cell) | | Balance voltage for single cell | Li-ion:4.20 V±0.025V,
LiFePO4:3.60V±0.025V | | 2 | Current | Balance current for single cell | 0~85mA | | Balance current for single cell | ≤20μA | | Maximal continuous charging and discharging current | 16A | | 3 | Over-charge Protection | Over charge detection voltage | 3.8~4.4V(can adjust) | | Over charge detection delay time | 0.5~2.5S | | Over charge release voltage | 3.8~4.4V(can adjust) | | 4 | Over-discharge Protection | Over discharge detection voltage | 1.9~3.1V(can adjust) | | Over discharge detection delay time | 50~300mS | | Over discharge release voltage | 1.9~3.1V(can adjust) | | 5 | Over-Current Protection | Over current detection voltage | 0.6V | | Over current detection current | 20~100A | | Detection delay time | 1~50ms | | Release condition | Cut load | | 6 | Short Protection | Detection condition | Exterior short circuit | | Detection delay time | 200-500us | | Release condition | Cut load | | 7 | Resistance | Protection circuitry(B- to P-) | ≤20mΩ | | 8 | Temperature | Operating temperature range | -40~+85° | | Storage temperature range | -40~+125° | | 9 | Size | | L140*W85*T9mm
|
|
| No. | Test item | Criterion |
| 1 | Voltage: | Charging voltage: | CC/CV:
Li-ion/Li-polymer(4.2V/cell);
LiFePO4(3.6V/cell) |
| Balance voltage for single cell | Li-ion:4.20 V±0.025V
LiFePO4:3.60V±0.025V |
| 2 | Current | Balance current for single cell | 0-85mA |
| Balance current for single cell | ≤20μA |
| Maximal continuous charging and discharging current | 16A |
| 3 | Over-charge Protection | Over charge detection voltage | 3.8-4.4V(can adjust) |
| Over charge detection delay time | 0.5-2.5S |
| Over charge release voltage | 3.8-4.4V(can adjust) |
| 4 | Over-discharge Protection | Over discharge detection voltage | 1.9-3.1V(can adjust) |
| Over discharge detection delay time | 50-300mS |
| Over discharge release voltage | 1.9-3.1V(can adjust) |
| 5 | Over-Current Protection | Over current detection voltage | 0.6V |
| Over current detection current | 20-100A |
| Detection delay time | 1-50ms |
| Release condition | Cut load |
| 6 | Short Protection | Detection condition | Exterior short circuit |
| Detection delay time | 200-500us |
| Release condition | Cut load |
| 7 | Resistance | Protection circuitry(B- to P-) | ≤20mΩ |
| 8 | Temperature | Operating temperature range | -40-+85 |
| Storage temperature range | -40-+125 |
| 9 | Size | | L140*W85*T9mm |
