| Prod Model: |
PLD015/017/019/020-1SCF503T(S) |
| Output Power: |
15~20W |
| Dimming: |
Triac/Elv Dimming |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
95X40X25 mm |
| Brand: |
Fsp-Powerland |
Product Description

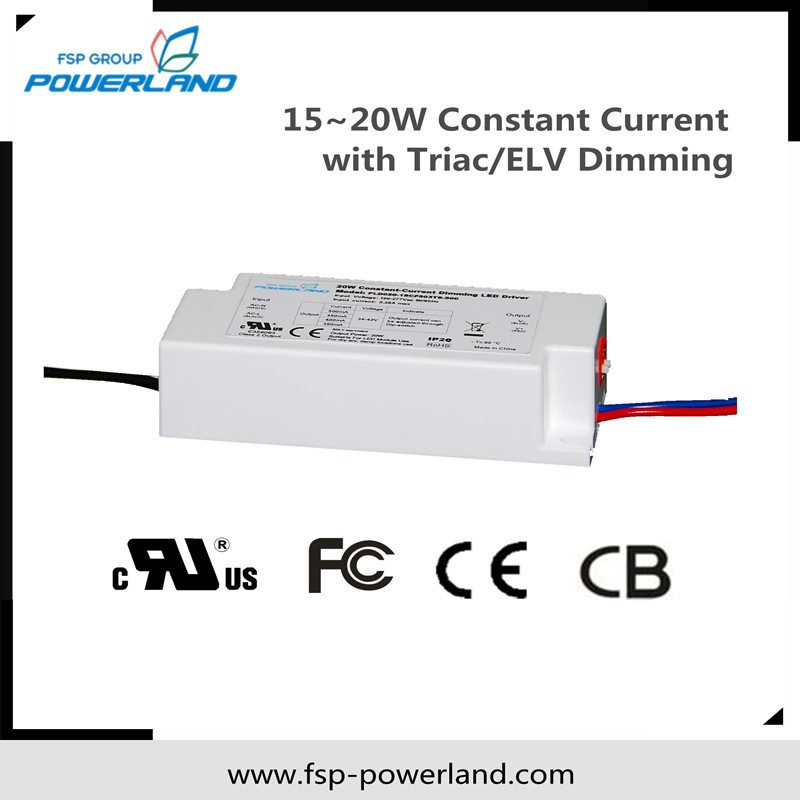

15~20W Constant Current Triac/Elv Dimmable LED Driver
Powerland's PLD015/017/019/020-1SCF503T(S) series offers constant current drivers with wide-range dimmable output current and 90~305Vac universal input.
The output current of this series is up to 0.35/0.4/ 0.45/0.5A with DIP switch current setting (TS version), and designed for Triac/ELV dimming applications.
Applications
Indoor LED lights
Downlights, spotlights, LED panels
Features
100,000 hours lifetime at 65oC Tcase
5 years warranty at 50oC Tcase
Constant current output
Compatible with Triac/ELV dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 &EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 15~21W | 34V
…
42V | 0.35A
…
0.5A | 84% | 90oC | 0.29A | 26W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD015-1SCF503T-350 | PLD017-1SCF503T-400 | PLD019-1SCF503T-450 | PLD020-1SCF503T-500 | PLD020-1SCF503TS-500 |
Output Voltage | 34~42V | 34~42V | 34~42V | 34~42V | 34~42V |
Output Current | 350mA | 400mA | 450mA | 500mA | 350/400/450/500mA |
Dimming
| Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV |
Output Power | 15W | 17W | 19W | 21W | 21W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.21A | 0.24A | 0.26A | 0.29A | 0.29A |
Max. Input Power | 19W | 21W | 23W | 26W | 26W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.75 @ 277Vac & 80~100% load |
Efficiency | 78% | 79% | 80% | 81.5% | 84% |
Max. Open Circuit Voltage | 50V | 50V | 50V | 50V | 50V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+60oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 95x40x25 mm (3.74x1.57x0.98 inch) |
Mounting Length | 85 mm (3.35 inch) |
Overall Length | 95 mm (3.74 inch) |
Weight | 0.15 kg (0.33 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics

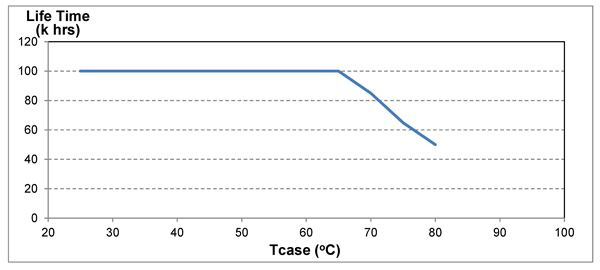

Life Time vs. Case Temperature
