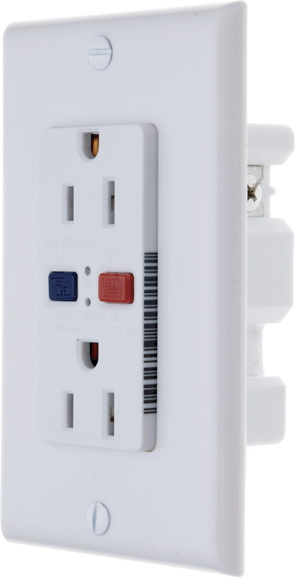

15 AMP, 125 Volt GFCI Receptacle, ETL Listing

Name: 15 AMP, 125 Volt GFCI Receptacle, ETL Listing
Brand: all-electronics-online.com
SKU: 689069402
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	US $ 3.8/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LG15
Markets:	North America,South America,Mid East
Type:	Without Switch
Grounding:	Standard Grounding
IP Rating:	IP20
Application:	Residential/General-Purpose

Product Description

SPECIFICATIONS
· Part No.: LG15
· Description: 15 Amp, 125 Volt GFCI Receptacle, ETL Listing
· Feature: Electromagnetic Tripping System
· Color: White, Ivory, Almond, Black
· Rating: 15A, 125VAC
· NEMA: 5-15R
· Pole: 2
· Wire: 3
· Termination: Side & Back
· Face Material: Thermoplastic
· Body Material: Thermoplastic

CODE COMPLIANCE
· ETL Listed UL 943 and UL 498
· ROHS comply

MATERIAL CHARACTERISTICS
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)

FEATURES
· Automatically test the GFCI every time the RESET button is pushed in. The GFCI will not reset if the GFCI circuit is not functioning properly
· By blocking reset of the GFCI if protection has been compromised, SmartlockPro® Slim GFCI reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
· A line-load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices. A green LED indicator on the GFCI's face also illuminates to alert the installer to the line-load wiring reversal
· Compatible with all Decora devices and wallplates

Lumex is a specialized manufacturer of custom and standard electrical wiring devices, Founded in 1997, Lumex offers nearly 18 years of proven performance in producing superior quality products.

Quality is the founding principal of Lumex' manufacturing philosophy. Lumex is certified ISO 9001: 2008, Most of the electrical wiring devices in Lumex are UL, ETL and RoHS approved. All our products are 100% quality guaranteed.

Lumex incorporates the most advanced design and manufacturing technologies. All Lumex's products have been designed and prototyped for sales using the most advanced testing techniques and methods.

In nearly 18 years, Lumex has invested the most modern manufacturing technology and equipments, and as a result, we have consistently provided large OEMs with the most cost effective alternatives globally.

Customer Satisfaction, Design Engineering, Quality, and On-Time Delivery are four key areas we are focusing on to insure high quality electrical wiring devices and total customer satisfaction. Our partner companies rely upon us to create superior quality, budget conscious solutions for complex challenges. At Lumex, we view solutions as the key to our continued growth and success.
