1500A Clamp-on Current Transformer with Power Quality Analyzer Manufacturing

Name: 1500A Clamp-on Current Transformer with Power Quality Analyzer Manufacturing
Brand: all-electronics-online.com
SKU: 798179705
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 70-80/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-QCT01-70-004
Frequency:	50/60Hz
Insulation Class:	Cat E
Customized:	Customized
Operation:	Easy
Accuracy:	High
100A:	1000A
2000A:	3000A
Power Quality Analyzer:	Low Current Transformer
Application:	Rectifier
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

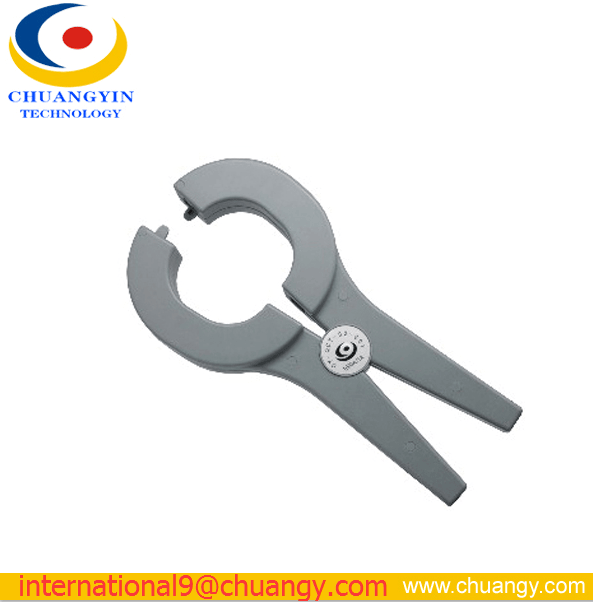

Clamp-on Current Transformer (100~3000A)
Model Code: CY-QCT 01

Features:
Delicate, exquisite, light.
Directly encircle busbar.No need to cut busbar.
Adopted high permeability core,high accuracy,good linearity.high ability of prevent interference.

Typical Application:
Electric energy field metering.
measure together with other kinds of instruments.

Dimension:

Size Model No.	A	B	C	D
CY-QCT01-70	120	275	36	70
CY-QCT01-150	230	360	45	150

Electrical Parameter:

Size Model No.	Rated Primary Current	Rated Secondary Current	Load Resistance	Accuracy Classes
CY-QCT01-70	100~1000	100mA~1A	10/20/50Ω	0.1,0.2,0.5
CY-QCT01-70	100~1500	100mA~1500mA	10/20/50Ω	0.2,0.5
CY-QCT01-150	100~3000	1A	5VA	0.1,0.2

Note: Upon request we are glad to offer transformers according to other technical specs.

Note:
Please browse our website and download product catalogue for detailed information.

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd.,  Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code:   518057
Tel:    +86 0755-86000302/ 8600709
Fax:    +86 0755-86000614
Web:  www.chuangy.com

Becky Wang

Business Development Executive
Mob: +86 15889623648

2016 Summer Olympics!

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
