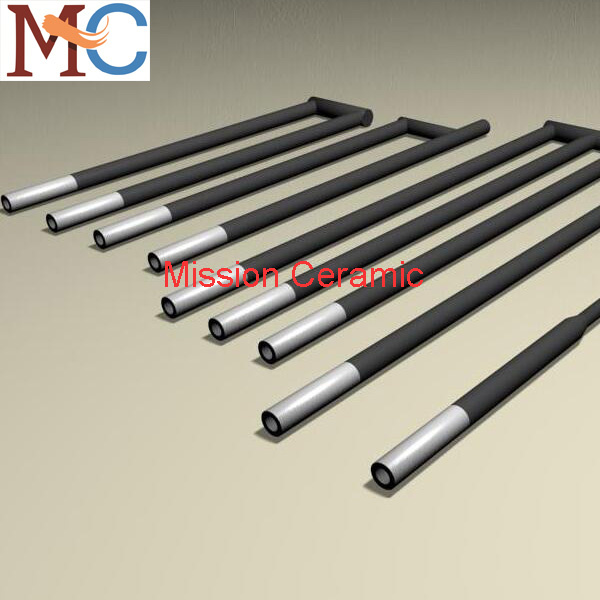

1500c Silicon Carbide Heating Element

Name: 1500c Silicon Carbide Heating Element
Brand: all-electronics-online.com
SKU: 718450672
Availability: InStock
Rating: 4.6 (110 reviews)

Price:	US $ 0.2-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSSC
Color:	Gray
Diameter:	14-54mm
Length:	200-4500mm
Max Working Temperature:	1500c
Usage:	Furnace,Air,Vacuum etc
Package:	Wooden Box
Delivery Time:	7-10days
Size:	Avaiable

Product Description

Silion Carbide DescriptionSilicon carbide SiC Heating element rod
Silicon carbide Heating element sic heaters rod is our main product.Mission can supply high quality Silicon Carbide (SiC) heating elements.Silicon carbide SiC heating element Specifications
1. High working temperature: 1450C.
2. Long time last.
3. Varous type available. Rod, U, W.

Mission SiC Heating Elements Advantage .

1. High working temperature: 1500C (Surface Temperature)
2. Various shapes: Rod, U, W ,UL,WLshapes are availible.
3. Large size range: Diameter 14-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
Mission SiC heating elements Standard Sizes .

Diameter	Heating zone Length	Cold zone Length	Overall length	Range of resistance
14mm	100-500mm	150-350mm	400-1200mm	0.7-5.6 ohms
16mm	200-600mm	150-350mm	500-1600mm	0.7-4.4 ohms
18mm	200-800mm	150-400mm	500-1600mm	0.7-5.8 ohms
20mm	200-800mm	200-600mm	600-2000mm	0.6-6.0 ohms
25mm	200-1200mm	250-700mm	700-2600mm	0.4-5.0 ohms
30mm	300-2000mm	250-800mm	800-3600mm	0.4-4.0 ohms
35mm	400-2000mm	250-800mm	900-3600mm	0.5-3.6 ohms
40mm	500-2700mm	250-800mm	1000-4300mm	0.5-3.4 ohms
45mm	500-3000mm	250-750mm	1000-4500mm	0.3-3.0 ohms
50mm	600-2500mm	300-750mm	1200-4000mm	0.3-2.5 ohms
54mm	600-2500mm	300-750mm	1200-4000mm	0.3-3.0 ohms

Other sized SiC elements can be made according to your need!

How to Order Mission SiC heating element
1. Choose the shape you need, like Rod, U, W, etc.
2. Out Diameter (OD)
3. Heating Zone Lengh (HZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.

Mission SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
I believe you will like our SIC heating elements.
Tips:
Customized production is available, for more information, please do not hesitate to tell me.
Zhengzhou Mission Ceramic Products Co., Ltd
No.11 Zhengshang Road, Zhengzhou, Henan, China
Tel: 86-371-5668968383
Mob:86-152-8681-8691
Fax: 86-371-67103091

Zhengzhou Mission Ceramic Products Co., Ltd. Locates in Zhenzhou City, Henan Province, central part of China. We have been working in advanced ceramic and thermal industry since 2013.

Our products has been exported to more than 40 countries like USA, UK, Russia, France, Australia Korea etc. We win good reputation from customers because of good quality and service.

Our main products as bellow.

1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your

Design.

2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.

3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.

4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.

5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.

6. Heating elements, including MoSi2 heating element and MoSo2 heating element.

If you are intersted in any of our products, please contact with us. We will try our best to provide good products and sevice!
