1500kVA Oil Immersed Three Phase Step Down Transformer

1500kVA Oil Immersed Three Phase Step Down Transformer
Price: US $ 1100-7999/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: S9/S11/S13/S11-M
Product Name: Oil Immersed Transformer
Winding Material: Copper Winding
Rated Capacity: 30 - 3500kVA
Iron Core: New Grain Oriented Silicon Steel Sheet
Coil Number: Autotransformer
Coil Structure: Toroidal
Frequency: 50 or 60 Hz
Vector Group: Dyn11 or Yyn0 or Others
High Voltage: 6-35kv
Type: Oil Immersed
Application: Power
Phase: Three
Coil: Core-type Transformer
Cooling Method: Oil-immersed Type Transformer
Winding Type: Auto-transformer
Certification: ISO9001:2008
Usage: Power Grid System
Brand: Zhongyi

Product Description

Specifications:

1.Insulation Electrical oil type transformers
2.IEC Standards
3.High efficiency,low loss,low noise
4.Long lifetime

5.Copper winding or alluminum winding

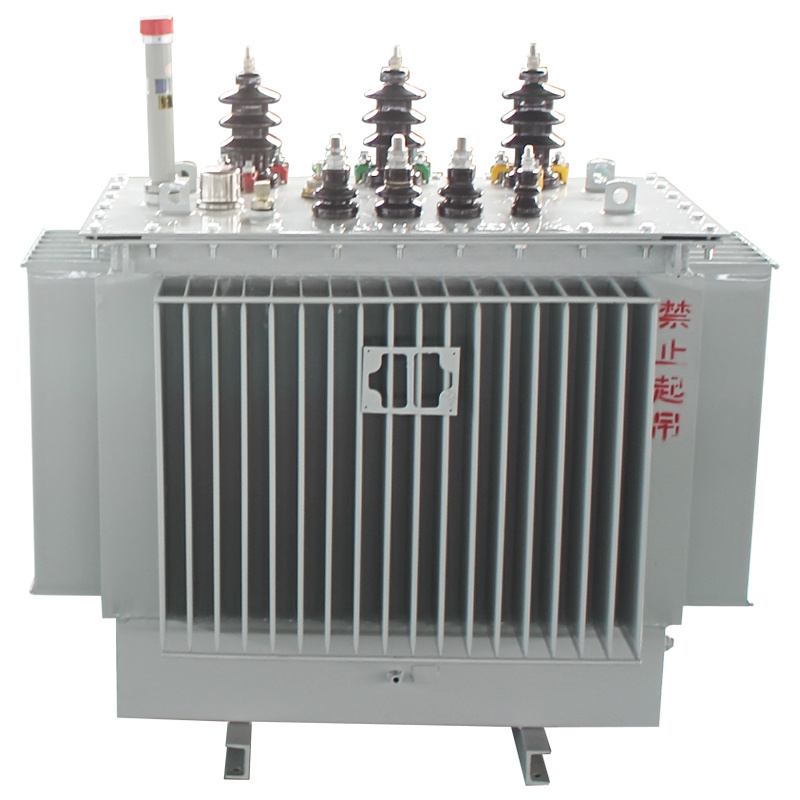

China Zhongyi Factory 1500kVA oil immersed three phase step down transformer




Product Description:


With the company's unique calculation program, the iron core, coil, body, leading wire, fuel tank and other components for the 10-35kV class power and distribution transformers are optimized in all directions to ensure product performance, excellent process equipment, careful material optimization, efficient manufacturing, making the transformer with low loss, low partial discharge, low noise etc., the product quality is superior, with energy saving and environmental protection, reliable operation and effectively reduce the operating costs.

 Details

Applications

 This product is suitable for the core structures in power plants, substations, large-scale industrial and mining and petrochemical enterprises.

Product Features

  • Good Economic Performance

Based on S9 series, the no-load loss for S11 series products decreased averagely 10.3%, no-load current decreased 22.4%.

The three-phase oil immersed idstribution transformer adpots new type insulation structure and makes the shot-circuit resistance strong.

  • Long Service Life

Transformer tank adopts fully sealed structure, fuel tank and tank rim can be connected by bolts or welded firmly, the transformer oil doesn't contact with the air, extending the service life.

  • High Operational Reliability

 Improve the relevant sealing parts for the fuel tank, increase the reliability and advance the technical level to ensure the reliability of the seal.

  • Small Installation Area

 S11-M series of transformer tank uses the corrugated plate radiator. when the oil temperature changes, the corrugated board expands from the heat and contracts from the cold, which can replace the role of the oil conservator, the corrugated plate type fuel tank has beautiful appearance, less occupied area.


Product Advantages:



1.Compared with S9,S11series transformer,the annual average no-load loss of S13 is reduced by 30% and the average load loss is reduced by 20%.At the same time,it saves energy obviously.

2.It has the complete symmetry tri-phased iron core magnetic circuit,which greatly reduces the magnetic resistance and no-load loss,and thus,though adopting the traditional materials,which is more high efficient and energy saving,producing smaller noise and with more compact structure.

The iron core materialBeing selected from high-quality high magnet conductive cold-rolled silicon steel sheet, the iron core processing uses German-imported Georg line cutting device, with the full-gradient ladder joint structure, no hole banding, plate-type clamping part structure.
Coil Structure

The high and low voltage coil is packed according to the split phase. The design pressure is evenly compressed to ensure the coil axial strength.

The inner coil is lined with high-strength phenolic paper tube. The internal and external struts are used on the high and low voltage coil, technically making ensure enough tightening of the coil radial.

Leading WiresTransformer wires use the oxygen-free copper and high-strength insulation material.
Oil Tank Manufacturing

Transformer tank adopts bucket type or bell-type.

  • Model "F" is for the side blowing and air-cooled type.
  • The sealing rubber uses "0" type of the overall structure to ensure that no leakage occurs.
  • All the gas collection pipelines on the top cover of the bell jar adopt the slope structure leading to the gas relay.
  • The fuel tank takes shape by compression molding of reinforcing ribs.
  • The cushion blocks for the jack are 4 pieces and are marked with oil paint.
  • The structure layout of transformer is reasonable, beautiful.
  • The inner wall of the fuel tank is coated with epoxy resin paint.
  • The external wall of the tank paints the high-quality silver power coating.

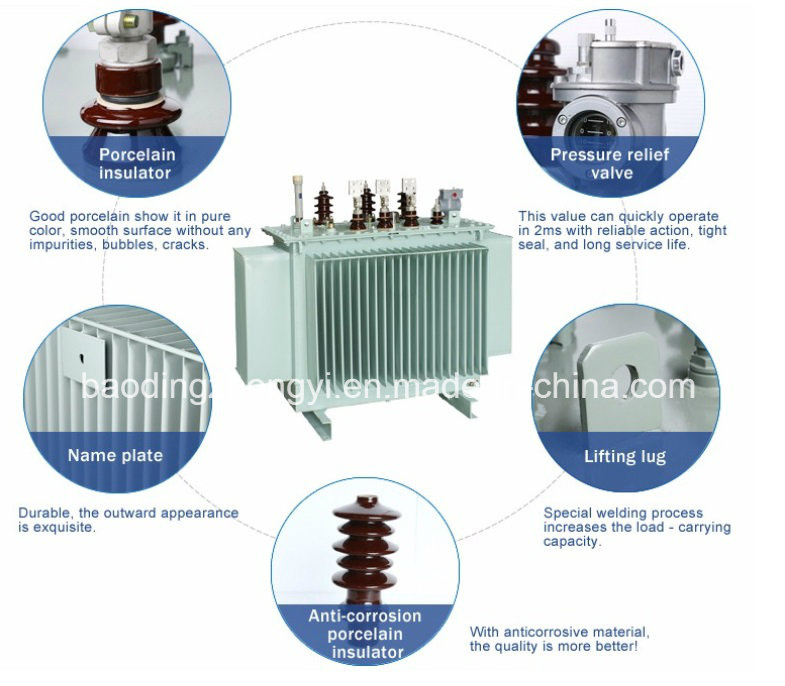

The transformer explosion-proof device The explosion-proof device uses YSF8-type pressure relief valve.
Crimping TechnologyTransformer wires use the oxygen-free copper and high-strength insulation material.



Technical Parameters

S13 Electrical Equipment oil immersed three phase step down transformer

Product  Model No.

Rated Capacity

KVA



    Rated Voltage  KV

 Connection Group Symbol

      Loss  W

No-load Current  (%)



Impedance Voltage(%)





High Voltage KV

Tapping Range of High Voltage

Low Voltage  KV

No-load

 Load

S13-M*R-30/10

30















10











±5%

±2%

2.5%















0.4











Dyn11

Yyn0

80

630/600

0.30











 4.0







S13-M*R-50/10

50

100

910/870

0.24

S13-M*R-80/10

80

130

1310/1250

0.22

S13-M*R-100/10

100

150

1580/1500

0.21

S13-M*R-160/10

160

200

2310/2200

0.19

S13-M*R-200/10

200

240

2730/2600

0.18

S13-M*R-250/10

250

290

3200/3050

0.17

S13-M*R-315/10

315

340

3830/3650

0.16

S13-M*R-400/10

400

410

4520/4300

0.16

S13-M*R-500/10

500

480

5410/5100

0.16

S13-M*R-630/10

630

570

6200

0.15





 4.5

S13-M*R-800/10

800

700

7500

0.15

S13-M*R-1000/10

1000

830

10300

0.14

S13-M*R-1250/10

1250

970

12000

0.13

S13-M*R-1600/10

1600

1170

14500

0.13

Notes:
The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory documents.


Related Products

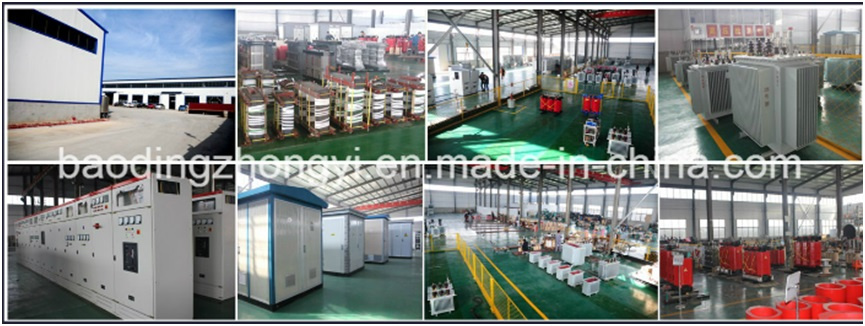

Company Profile:

 Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.

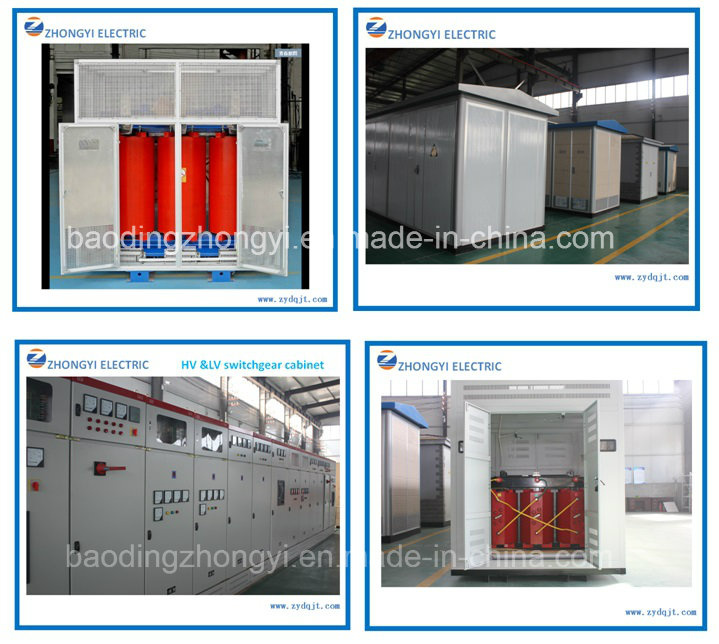

The company mainly produces:

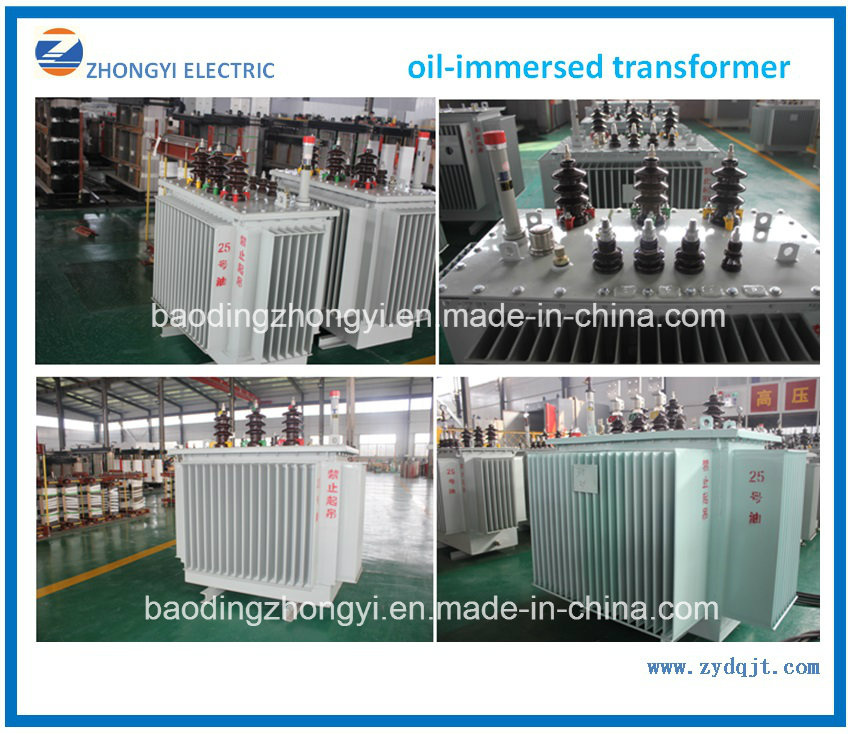

  • oil immersed step down transformer
  • dry-type transformers,
  • box-type substation,
  • high and low voltage switchgear assembly and a variety of special-type transformers.

 The hoisting, tooling and testing equipments are complete.



  • Our company has passed the ISO9001-2015 international standard quality management system certification.

All performance indicators of the products have reached the relevant national standards and international standards.

  •  The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality;
  • Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products;
  • Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product .

 Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

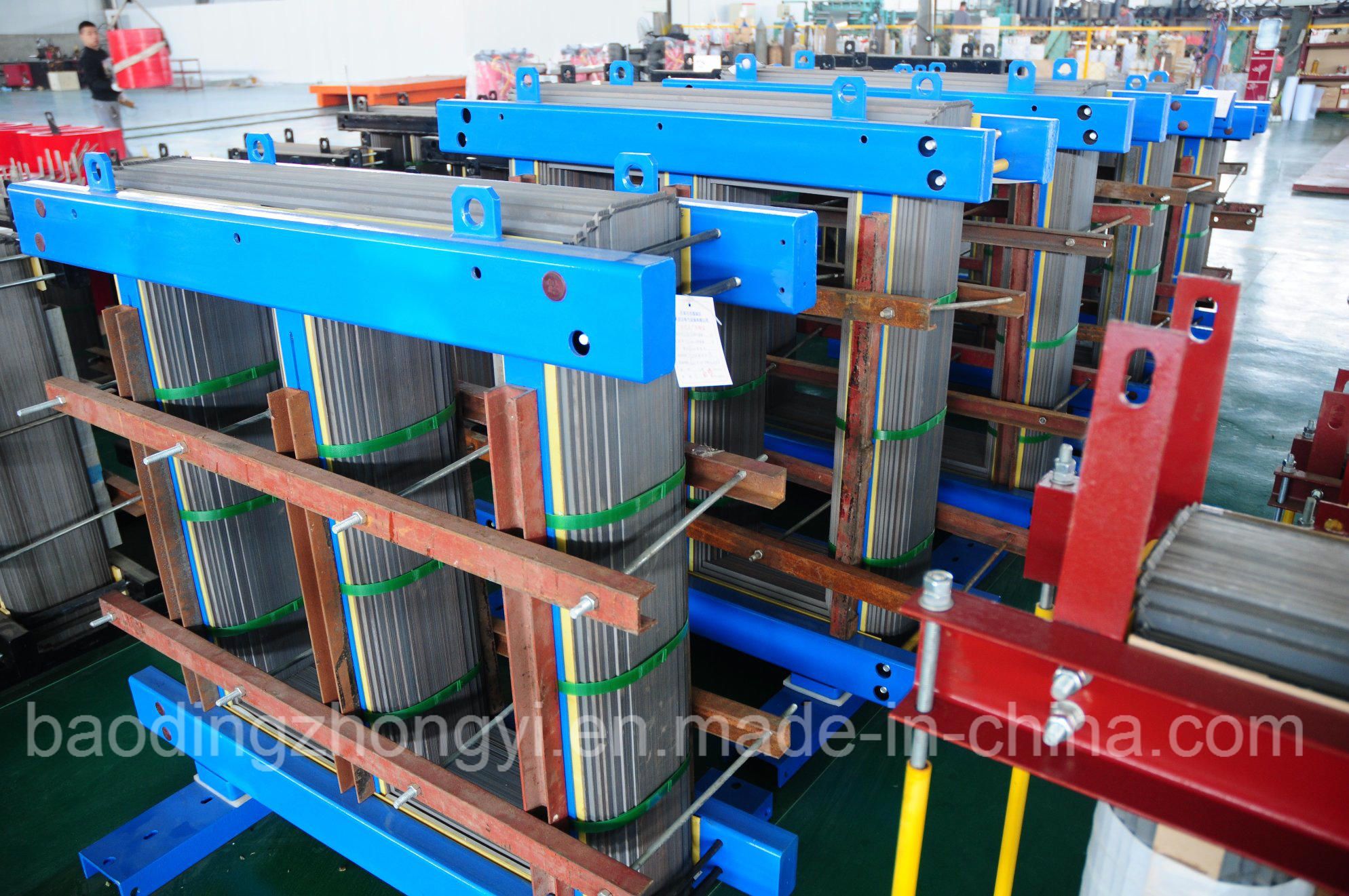

  Sillicon steel sheet core for step down transformer



 Certifications:

 Packaging &Shipping

 Packing:

1, Wrapped with plastic film.
2, Fixed in a wooden case.
3, Wooden case on a pallet.

 Delivery Details :
10-30 days according to order quantities

 FAQ

 Q: Are you trading company or manufacturer ?

A: We are power transformer factory.

Q: How long is your delivery time?

A: Generally it is 15-20 days and it is also depending on the order quantity.

Q: Do you provide samples ?

A: Yes, we could offer the sample

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shippment.


How to order:

 Please provide the following data when placing an order, so we can service you better.

Number

Data for Transformer

1

Type of transformer

2

Rated capacity

3

Input voltage/ Output voltage

4

Phase number

5

Frequency



Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.

The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.

Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
