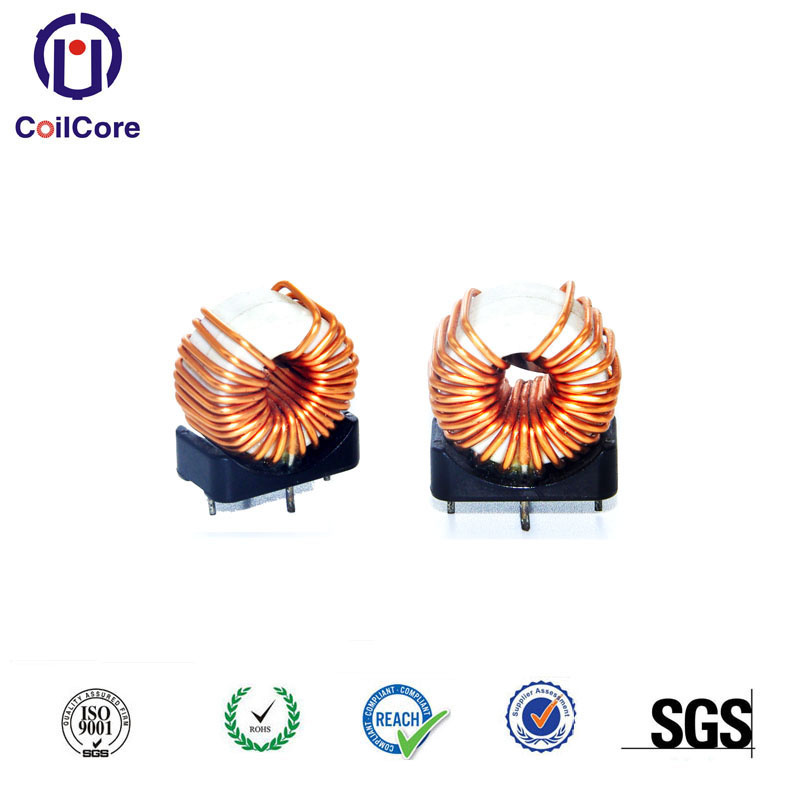

1500V UL Common Mode Inductor Coil Toroidal Common Mode Choke

Name: 1500V UL Common Mode Inductor Coil Toroidal Common Mode Choke
Brand: all-electronics-online.com
SKU: 828710185
Availability: InStock
Rating: 4.5 (54 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Phase:	Single and Three
Brand:	Coilcore

Product Description

What is a Common Mode Choke?
Common mode chokes are used in order to filter common mode electromagnetic interference (EMI) currents without
de-rating under high currents and without causing signal degradation. Common mode chokes are applied to supply
and return pairs of conductors and are ideal for EMI filtering of signal and power lines. Common mode chokes can
withstand high DC currents without filtering performance degradation, which is an issue that can happen with
differential mode filters such as small chip beads.

tuzhi

1.Application

-- elecommunications

-- Switched-mode Power supplies

-- Uninterrruptible Power Systems

-- Pulsed welding equipment

-- Power inverter

-- Wind generators

-- Frequency Converter

For common mode chokes, power transformers and ELPB

Item	Specification
Rate voltage	AC250V or DC250V
Insulation voltage rating	AC2kV for AC2.4kV for 3 sec.(line-line)
Insulation resistance	Over 100MΩ after applying DC500V for 1 min
Insulation grade	Classs B(130ºC)
Temlerature rise	Refer to each specification
Operation temperature range	-40ºC-+130ºC(including temperature rise of core)

Shipping Method:Fedex,UPS,DHL,TNT and so on .

You are more than welcome to contact us for any questions and doubts!

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
