| Prod Model: |
DX-2000WUPS |
| Application: |
Solar Power System |
Product Description

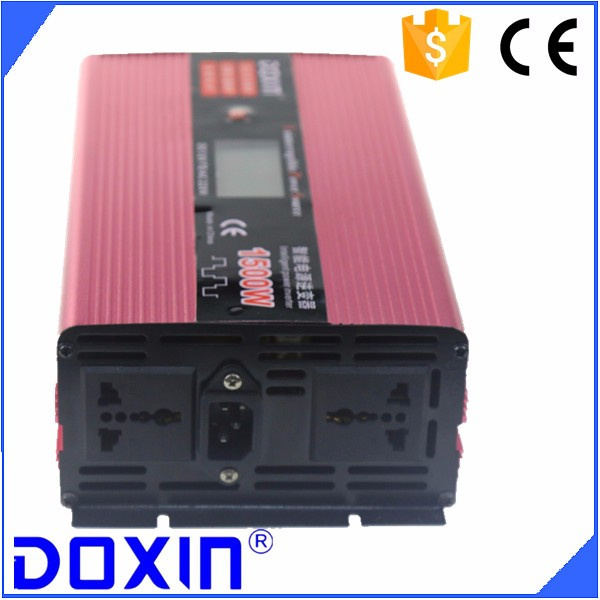

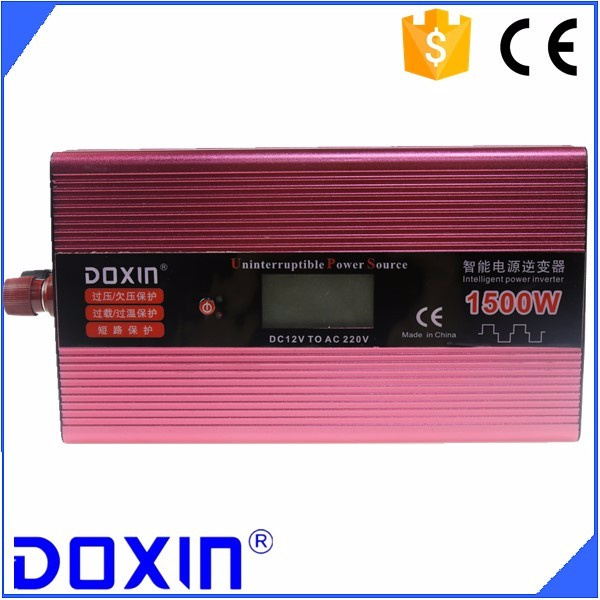

Doxin New Produce DC 12V/24v/36v/48v DC 110v/220v/230v AC 1500w with LCD Online UPS Inverter
1.Product Introduction
With a normal input mains power AC220V/AC110V ,UPS modified power inverter can transform
AC power into DC power so as to power household electronic appliance and equipment , and meanwhile charge the external battery connected with it .when a power failure created the UPS power
inverter will immediately transform the DC power of the battery into AC220V/AC110V and
simultaneously charge the battery also ,so as to keep equipments and appliances from being
damaged .
2.The Features
1. Independent research and development design , adopting the latest high-frequency PWM
technology , adopting big IRF high power transistor imported from U.S
2. All-mental aluminum shell is adopted on the safe side
3. Equipped national , American and European standard plug
4. With 95% of conversion efficiency
5. Specially being designed and with many protection functions (overhear , over voltage , under
voltage , overload ,, over current etc)
6. The LED indicator shows the work status
7. Adopting transformer made through special processes , making our inverters work more stable
and reliable and with more load capacity etc
3.Product Parameter
| Item No. | DX-GAX1500WUPS |
| * Max continuous power: | 1500W |
| * Peak Load Power Rate: | 3000W |
| * NO load current draw: | <0.4A |
| * Input DC voltage Range: | DC10V-15V |
| * Output Voltage Range: | AC220+/-10% |
| * Output Frequency Range: | 47-55HZ |
| * Max Outer Temperature: | < 65°C |
| * Max Power Efficiency: | > 85% |
| * High Voltage Cut Off Level: | DC15V±1 |
| * Low Voltage Alarm Level: | DC10.5±0.3V |
| * Low Voltage Cut Off Level: | |
| * Overload and Short-circuit Protection | yes |
| * Input Voltage: | DC12V |
| * Output waveform: | Modified sine wave |
| * AC input Voltage: | 220V |
| * AC Frequency: | 50HZ/60HZ |
| * AC input voltage range: | 165-260V |
| * Charger current: | Max 10A |
| * DC to AC inverting household electricity supply time: ≤10ms |
| * household electricity supply inverting AC to DC time: ≤10ms |
| * Built-in Cooling Fan | |
| * Product Size: | 215*150*90mm |
Factory Information and Production Line
Established at the beginning of 1998, DOXIN Electronic Factory is a manufacturer specializing in car power inverters, solar charge controllers, battery chargers, stepdown converters, power adapters and iphone chargers etc. We are an ISO9001-2000 certified factory with all our products being CE,EMS,LVD,ETL,ROHS, e-Mark certified and enjoyed by many domestic and foreign customers for its competitive price and good quality. Our factory is situated at the most developed industrial area in mainland China. We also supply OEM, ODM service according to your requirements. Please ask if you need different input voltages, output voltage, output power, surge protection, up to today, we can supply 12V/24V/36V/48V/60V dc to 110/220/230/240V ac inverters.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
Guangzhou Suredom Electronic Factory is a professional manufacturer specializing in electronic and solar products. We have been producing electronics for more than 10 years. We have a strong professional development team and our reputation is based around our motto "Quality First - Reputation Best".
Product categories include:
Car inverters
Pure sine wave inverters
Modified sine wave inverters
Grid tie inverters
Solar panels
DC-DC converters
Power banks
Solar charge controllers
Battery chargers
Solar lighting systems
LED products
We export large quantities to Europe, USA, Russia, Australia, etc. Our inverter products are made to "industry best" standards with reliable quality and stable performance.
Our production facilities were purpose built and passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK.
