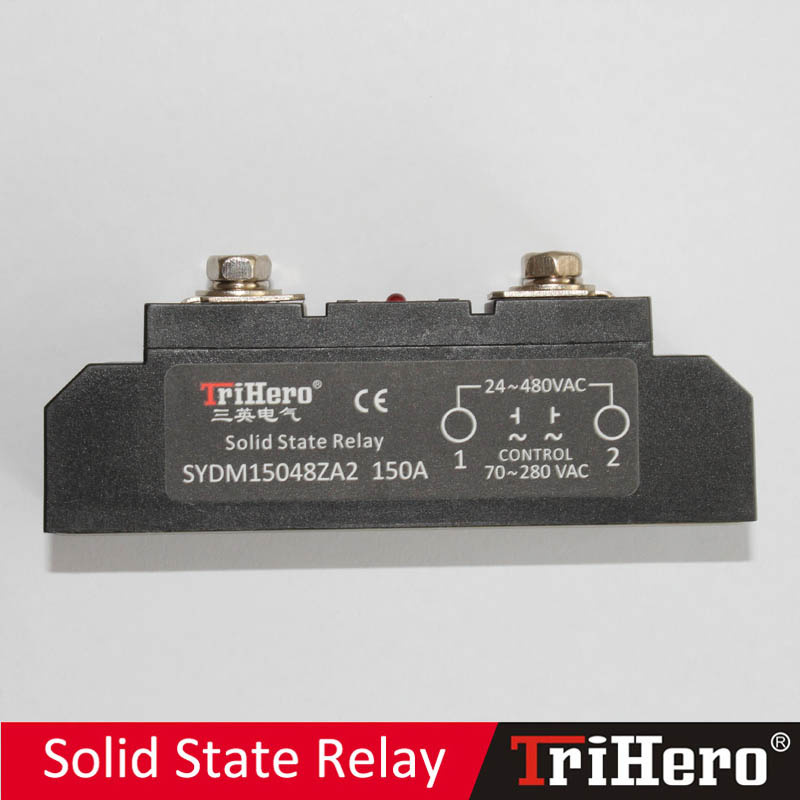

150A AC/AC Industrial Class Solid State Relay, AC SSR, SSR-AA150

Name: 150A AC/AC Industrial Class Solid State Relay, AC SSR, SSR-AA150
Brand: all-electronics-online.com
SKU: 783054815
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	US $ 15.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SYDM15048ZA2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Current:	150A
Load Voltage:	24-480VAC
Control Voltage:	70-280VAC

Product Description

Introduction:
Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied along its n-type and p-type junctions. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load. It serves the same function as an electromechanical relay, but has no moving parts.

AC-AC Industrial Class Solid State Relay SSR

1) Technical data:

Model	SYDM15048ZA2
Load current	150A
Load voltage	30-480VAC
Control voltage	80-280VAC
Control current	≤12mA
On state voltage drop	≤1.5V
On state leakage current	≤4mA
Off state time	≤10mS
Dielectric strength	2500VAC
Insulation resistance	1000MΩ500VDC
Ambient temperature	-30°c ~ +75°c
Mounting method	bolting
Indicator	LED
Certificate	CE

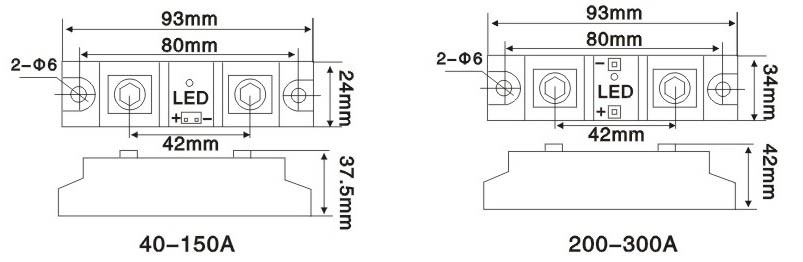

2) Dimensions:

3) Matched heatsink & fan:
Heatsink Y-shape

Fan

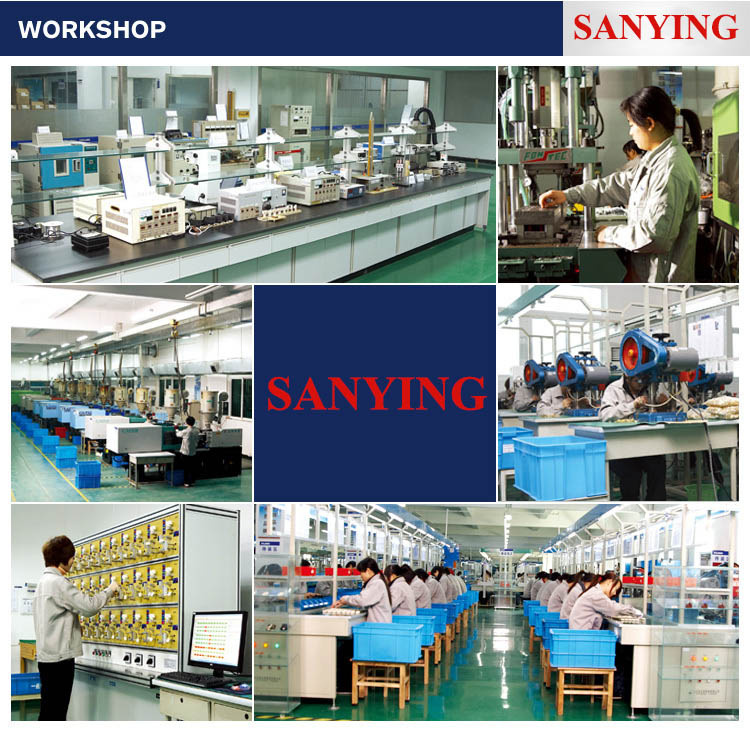

Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.
