150m HDMI Extender by Single Cat5e/6

Name: 150m HDMI Extender by Single Cat5e/6
Brand: all-electronics-online.com
SKU: 706772105
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 90.0/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLE150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	Avaliable
Usage:	Workstation
Type:	Wired
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

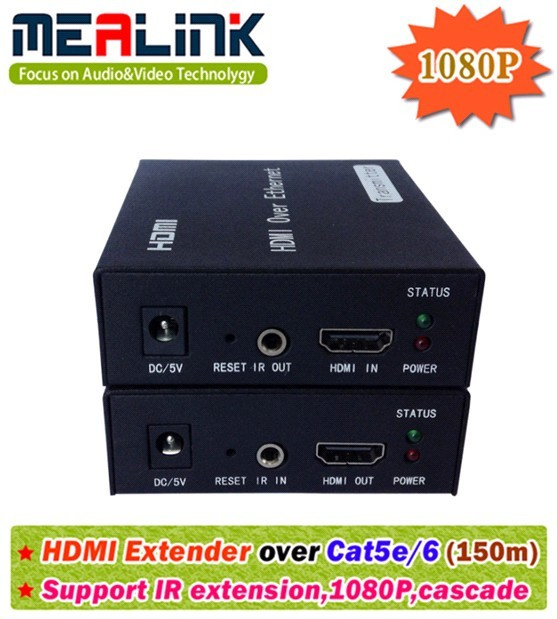

150m Over Single Cat5e/6 HDMI Extender (IR, YLE150)
HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 150m away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch.

Specifications:
1. Following TCP/IP standard.
2. Support HDMI1.3 protocol.
3. HDCP1.1 & 1.2 protocol compliant

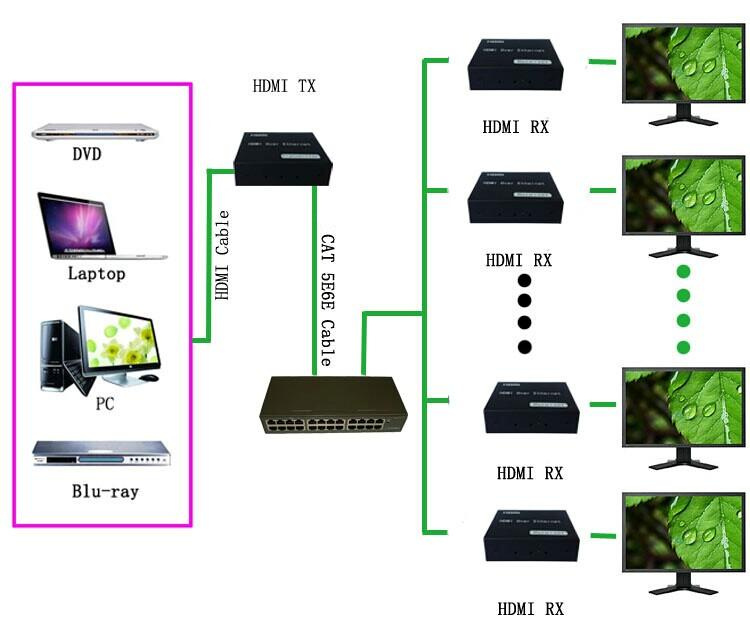

4. Support point-to-point mode, one point-to-many mode and cascade connection mode.
5. Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.

PACKAGE CONTENTS:
Before attempting to use this unit, please check the packaging and make sure the
Following items are contained in the shipping carton:

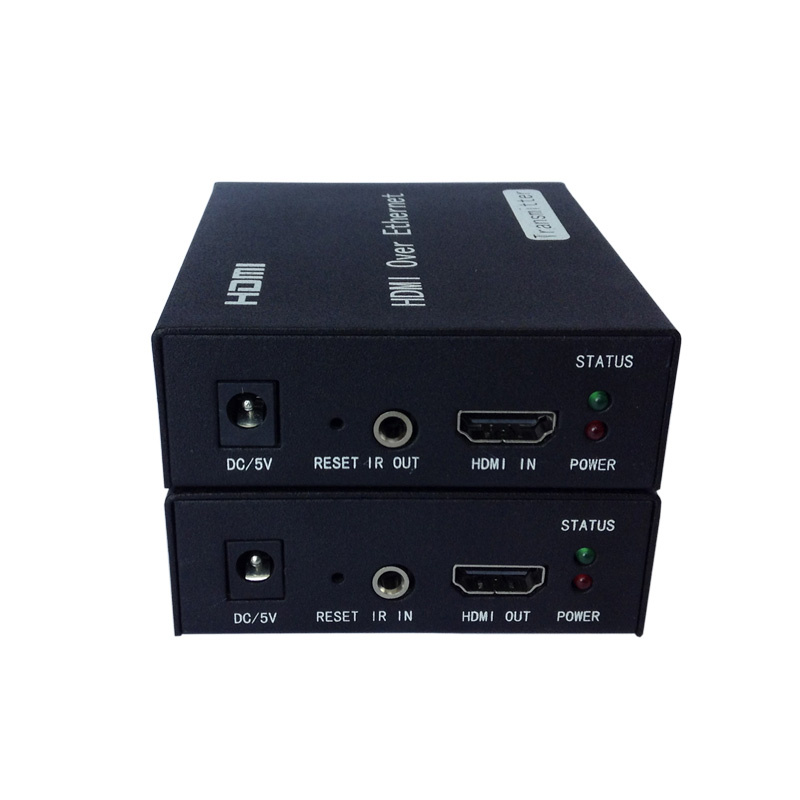

1) Main unit No. 1 Sender, Main unit No. 2 Receiver
2) Two pieces of 5V DC Power Supply.
3) a pieces of IR transmitter and a pieces of IR receiver
4) User's Manual

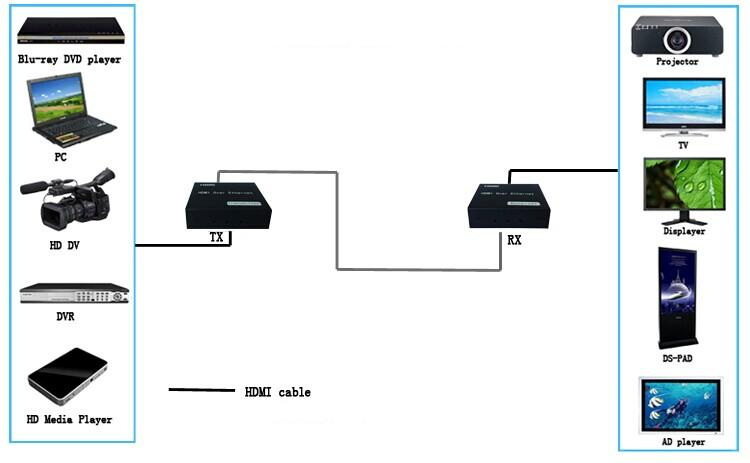

Connection and operation
1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender.
2) Connect the IR sender to the Sender IR OUT Port, and Be Directed at HDMI video source's IR receiver.
3) Connect the HDMI out of Receiver to HDTV display.
4) Connect the IR receiver to the Receiver IR IN Port.
5) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.
6) Plug two pieces of 5V power supply into the Sender and Receiver.
7) Power on the HDTV display and HDMI source.

Features:

Video	I/O connector	HDMI, IR, RJ-45
	HDMI version	HDMI1.1 1.2 1.3
	HDCP	HDCP1.2
	HDMI resolution	1080p/1080i/720p/720i/576p/576i/480p/480i
	Video color format	24bit/deep color 30bit/deep color 36bit
	Audio format	DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
	TMDS	0.5-1.5Vp-p(TTL)
	DDC	5Vp-p(TTL)
	Input cable length	≤20m AWG26 HDMI 1.3 standard cable
	Output cable length	≤20m AWG26 HDMI 1.3 standard cable
Physical
	Case	Aluminum
	Color	Black

Power	Voltage	5V DC
	sender power consumption	4W
	receiver power consumption	3W
Environment	Working temperature	-15ºC-55ºC
	Storage temperature	-40-80ºC
	Humidity	0-95% (non-condensing)
