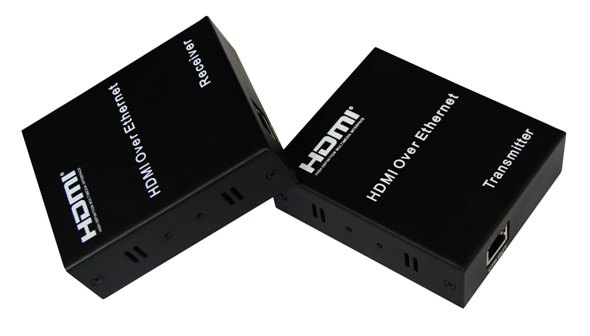

150m HDMI with IR Over Cat5e/6 Extender (TCP/IP)
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
YL-E150 |
| OEM: |
Avaliable |
| Resolution: |
1080P |
| Version: |
HDMI 1.3V |
Product Description
The 150m HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.
| HDTV Resolutions | 480p,576p,720p,1080p |
| Audio | Sample rate:32kHz,44.1kHz,48kHz |
| IR remote control | 38kHz;NEC |
| HDMI | HDMI 1.3 |
| HDCP | HDCP 1.2 |
| Power adapter | Input:100V-240V(50-60Hz) Output:5V/1A |
| Power consumption | HDMI Sender:3W HDMI receiver:3W |
| Size(L-W-H) | 92x79x20mm |
| Weight | 240g x 2 |
| Operating Temperature/Humidity | 0ºC-70ºC/10%-80%RH(no condensation) |
| Storage Temperature/Humidity | -10ºC-80ºC/5%-90%RH(no condensation) |
Specifications:- Following TCP/IP standard.
- Support HDMI1.3 protocol.
- HDCP1.1 & 1.2 protocol compliant
- Support point-to-point mode, one point-to-many mode and cascade connection mode.
- Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
PACKAGE CONTENTS:Before attempting to use this unit, please check the packaging and make sure thefollowing items are contained in the shipping carton:1) Main unit No. 1 Sender , Main unit No. 2 Receiver2) Two pieces of 5V DC Power Supply.3) one piece of IR transmitter and one piece of IR receiver4) User's Manual Panel Descriptions:HDMI Transmitter| 5V/1A | Supply power for the Transmitter |
| Reset | Hold down the key,the model will re-start |
| IR-out | Connect IR transmitter this Port |
| HDMI-in | Connect HDMI sink source to this Port |
HDMI Receiver| 5V/1A | Supply power for the Receiver |
| Reset | Hold down the key,the model will re-start |
| IR-in | Connect IR Receiver this Port |
| HDMI-out | Connect HDMI sink device to this Port |

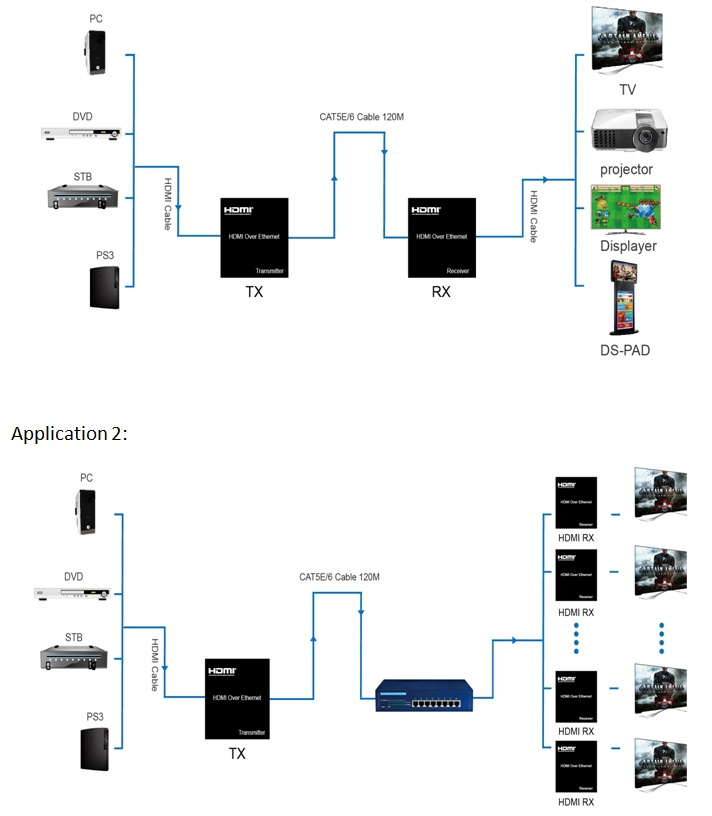

Connection and operation:1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender. 2) Connect the IR sender to the Sender IR OUT Port, and Be Directed at HDMI video source's IR receiver.3) Connect the HDMI out of Receiver to HDTV display.4) Connect the IR receiver to the Receiver IR IN Port.5) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver. 6) Plug two pieces of 5V power supply into the Sender and Receiver. 7) Power on the HDTV display and HDMI source. Application diagrams:Application 1:
