150mh Balun Inductor for Monitor

Name: 150mh Balun Inductor for Monitor
Brand: all-electronics-online.com
SKU: 839190405
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	US $ 2.8-2.85/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJCI-344C-150mH
Structure:	Magnetic Bead
Type:	Balun Inductor
Nature Of Operation:	Measure
Packaging Form:	Tube and Case
Brand:	Simonsen123

Product Description

150mh balun inductor for monitor

1. Product Type: Balun Inductor
1.1 Model NO:simonsen123 WJCI-344C-150mH
1.2 Installation:vertical insertion or horizontal installation.

2. Feature
2.1 Application: monitor, filter
2.2 Usage: monitor view
2.3 Insulating medium: tube and case
2.4 Certification: RoHS, ISO 9001:2008

3. Size (mm)

4. Performance Parameter

Product NO	Inductance Value	Coil Ratio	Q Value	DC Resistance Ω	Test Conditon & Instrument	Pin Assignment
WJCI-344E-150mH L1-6=L3-4 black	150~220mH	1:1	9~20	2.35	1KHZ/0.3V	1 2 3 6 4
WJCI-344E-200mH L1-6=L3-4 yellow	200~3000mH	1:1	9~20	2.35	1KHZ/0.3V	1 2 3 6 4
WJCI-344E-400mH L1-6=L3-4 green	400~500mH	1:1	9~20	6.5	1KHZ/0.3V	1 2 3 6 4
WJCI-344G-150mH L1-2=L4-3	150~220mH	1:1	9~20	2.35	1KHZ/0.3V	1 2 4 3
WJCI-344F-150mH L1-3=6-4	150~220mH	1:1	9~20	2.35	1KHZ/0.3V	1 2 3 6 4

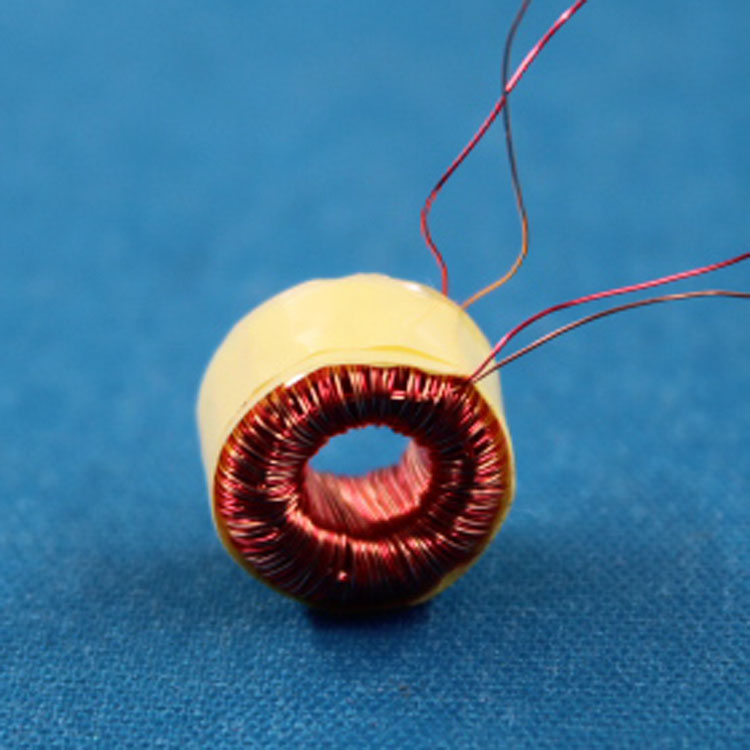

WJCI-344C-150mH	150~220mH	1:1	9~20	2.35	1KHZ/0.3V	Wrapping with yellow tape,leaded by enameled wire, the length leaded:20mm,weld:2`3mm

5. Security Parameters :
5.1 Isolation Voltage: Primary Winding and Secondary Winding:3KV/2mA/60Sec;
5.2 Insulation Conductor:≥100MΩ /500V DC;
5.3 Inflaming Retarding: up to the standard of UL94-V0; environmental protection meets the muster of ROHS and pass the test of SGS ROHS;
5.4 Operating Temperature: -40ºC~+85ºC Humidity ≤95%;
5.5 Frequency Range: 1KHZ~2KHZ

Established in 2004, Shenzhen Simonsen123 Electronic Co., Ltd is engaged in research & development, manufacture and sales for current transformer, voltage transformer, multi-coil inductance, leakage protector and balun inductor.

The company has the factory of over 5000 square meters and more than 200 staff, in which possesses 2 injection molding machines, 200 full-automatic annular coil winding machines, over 20 LCR testers, 20 inductance comprehensive tester, 10 transformer specified tester and a batch of import tester, such as automatic dispenser, full-automatic laser printer and etc. While, the injection molding machine provides strong guarantee for developing new products. Our monthly production achieves 200, 000 current transformers and 6, 000, 000 inductances. The company and the factory have passed ISO 9001 on August, 2013 and all of our products meet the standard of RoHS.
