150VDC 2.6n. M 367W Outside Brush PMDC Motor

Name: 150VDC 2.6n. M 367W Outside Brush PMDC Motor
Brand: all-electronics-online.com
SKU: 726428585
Availability: InStock
Rating: 4.7 (124 reviews)

Price:	US $ 75-80/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	110ZYT210-15015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Voltage:	150VDC
Current:	3.5A
Speed:	1350rpm
Torque:	2.6n.M
Length:	210mm
Power:	367W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Zyt
Brand:	Sunrise Motor

Product Description

PMDC MOTOR
MODOEL: 110ZYT210-15015
Voltage: , 150VDC
Torque: 2.6N. M,
Current: 3.5A
Speed: 1350RPM,
Power: 367W
Length: 210mm,

Special motors can be customized per your requirements.
Bearing optopm: Ball bearing and sleeve bearing
Encoder and gear box can be fixed.

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N. m)	Current (A)	Speed (r/min)	Length (mm)
110ZYT165-4830	48	1	3000	1.8	13	2700	165
110ZYT165-18053	180	0.4	5300	2.2	8	4700	165
110ZYT210-2434	24	5	3400	1.6	31	3100	210
110ZYT210-15015	150	0.2	1500	2.6	3.5	1350	210
110ZYT210-15020	150	0.2	2000	1.9	4	1850	210

More Motors

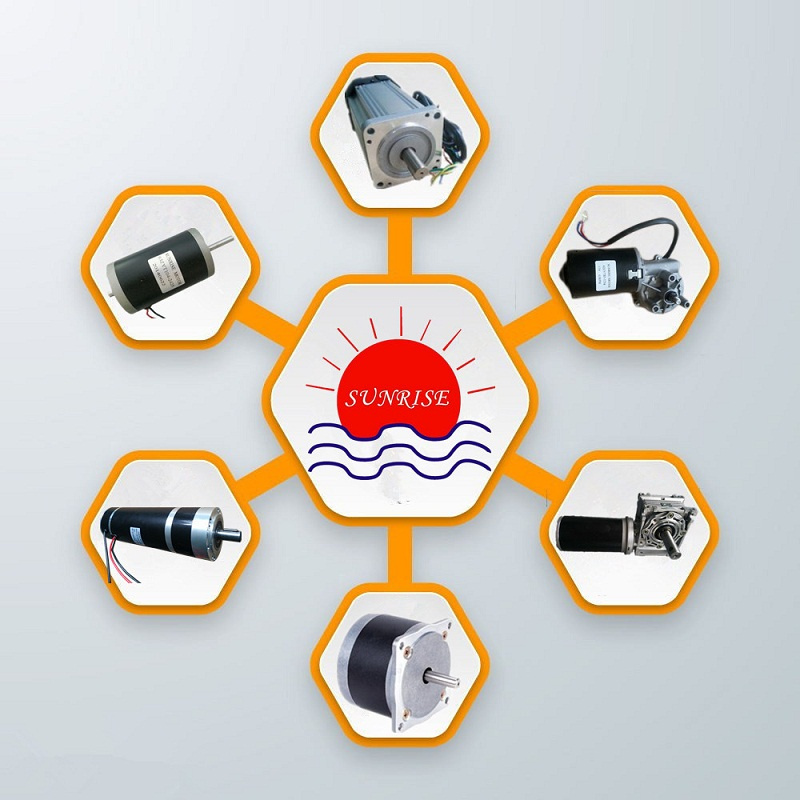

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
