Product Description

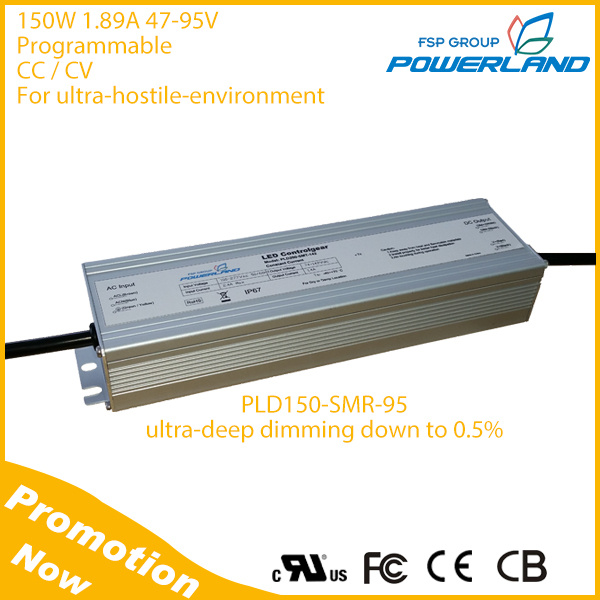

150W Outdoor Programmable Constant Current / Constant Voltage Led Driver
UL cUL List
0-10V / PWM / Rset / Clocking /DMX Dimming
80ºC ambient temperature operation
PLD150-SMT-95 series offers high-temperature, digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series are programmable up to 1.89, and designed for 0(0.05)-10V /PWM/Rset/Clock/ DMX ultra-deep dimming applications. ApplicationsUltra-Hostile-Environmental(UHE) LED Lighting
Led lights with flexible current settingsStreet lights, High bay and low bay lights, LED panels
Specification Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 150W | 47V
…
95V | 1.89A | 94.5% | 90ºC | 2A | 173W | <20% | >0.95 |
Ultra-deep dimming down to 0.5%, compatible with DMX100,000 hours lifetime at 80ºC Tcase 7 years warranty at 80ºC TcaseIP67 ingress protection
Min. Operating temperature @-40ºC
12V/100mA Auxiliary output(optional)
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, External resistor, Clock, DMX dimming
Universal input voltage:90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 3kV. L/N-GND 6kV
EMC according to FCC part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection Electrical Specifications | Model |
PLD150-SMT-95
|
| Output Voltage |
47~95V
|
| Output Current |
1.89A
|
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
Dimming
| 0(0.05V)~10V, PWM, External Resistor, Clock |
Current Programmable
| Yes |
Output Power
|
150W
|
Max. Current Ripple
| ±10% |
Voltage Range
|
90~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
|
2A
|
Max. Input Power
|
173W
|
Power Factor
| >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
93.5%
|
Max. Open Circuit Voltage
|
100V
|
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
|
90ºC
|
Surge Protection
|
3kV/6kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class B
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 230x68x42.5 mm (9.06x2.68x1.67 inch) |
Mounting Length
|
244 mm (9.61 inch)
|
Overall Length
|
254 mm (10.00 inch)
|
Weight
|
1.45 kg (3.20 lb)
|
Life Time
| 100,000 hours @ full load, 70ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specification

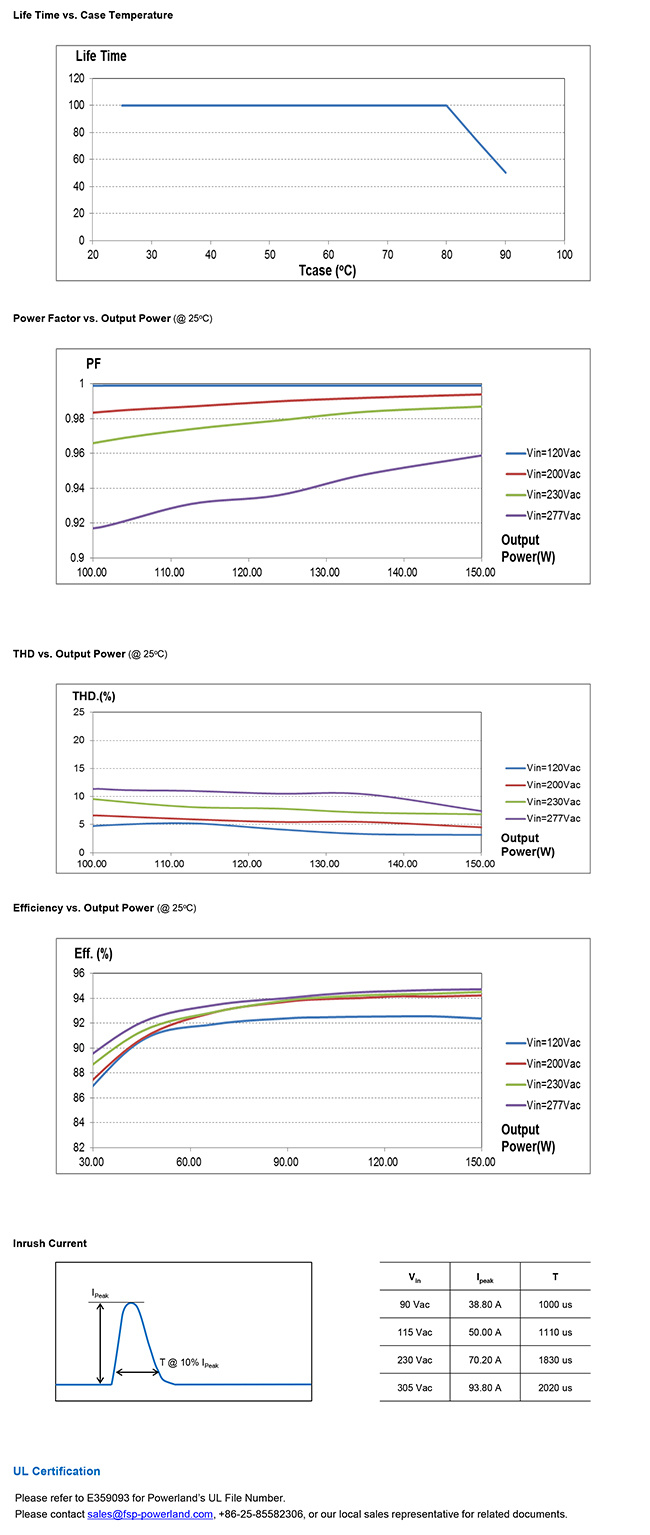

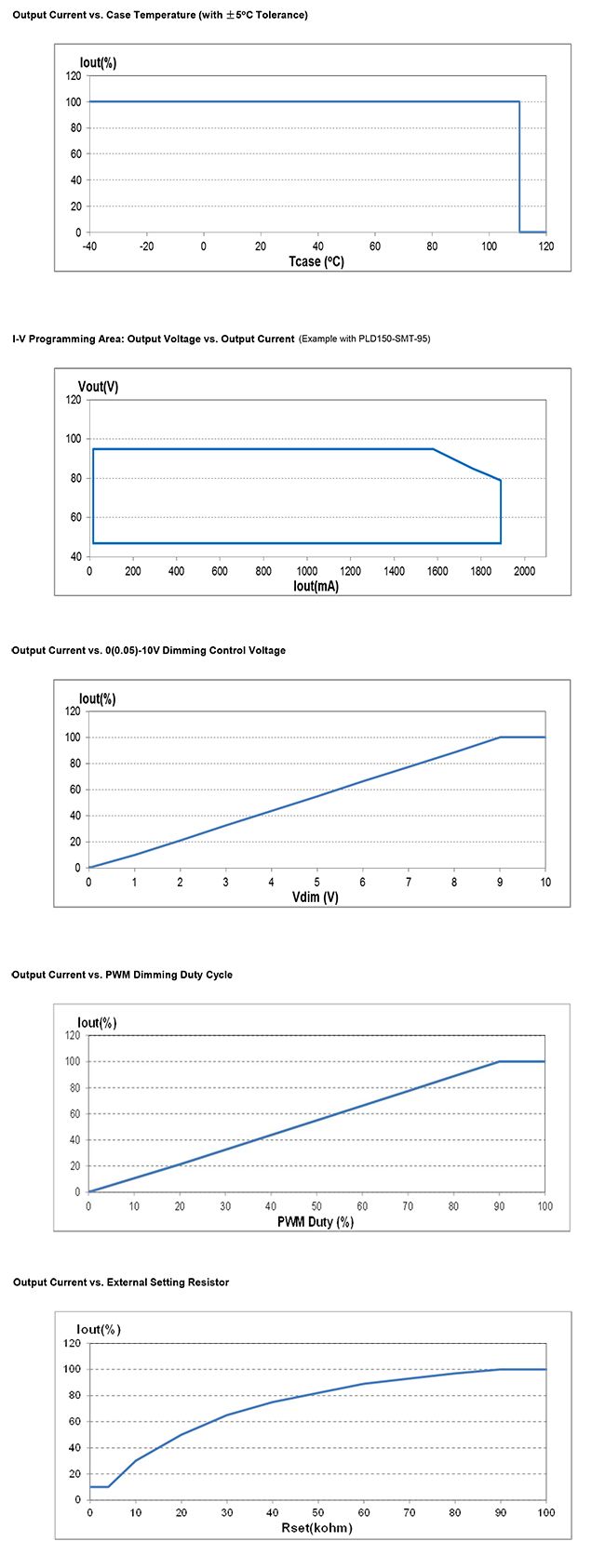

Performance Characteristics (Test wtih PLD150-SMT-285)
