| Prod Model: |
LPS-12E150B |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
150W |
| Input Voltage: |
170-250V |
| Output Voltage: |
12V |
| Output Current: |
12.5A |
| Output-Type: |
Constant Voltage |
| Efficiency: |
86% |
| Installation: |
Outdoor Waterproof |
| Outdoor Waterproof: |
IP67 |
| Cooling: |
Free Air Convection |
| Certificates/Standards: |
Ce/SAA/Saso |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Certification: |
SAA |
| Power Supply Voltage: |
AC170-250V |
| Brand: |
Neonpro |
Product Description
1. Features of LED driver: 150W 12VFully encapsulated with IP67 level
Automatic protection for: Short circuit / overload / over voltage / high temp.
Aluminum mental housing, easy for heat dissipation & ensure stability
Suitable for LED lighting and moving sign applications
8 hours 100% full load burn-in test, strict QC before delivery
Low cost, high reliability
2.Specifications of LED Driver| Model no. | LPS-12E150B |
|---|
| Model series | LPS-B |
|---|
| Input voltage | 170-250 VAC 50/60 Hz |
|---|
| Power | 150 W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | Not dimmable |
|---|
| Power Factor | Low PF~0.6 |
|---|
| Efficiency | 80% |
|---|
| Output voltage | 12VDC ± 5% |
|---|
| Output current | 12.5 A max |
|---|
| Overload protection | 105%-120% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40ºC |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP 67 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE |
|---|

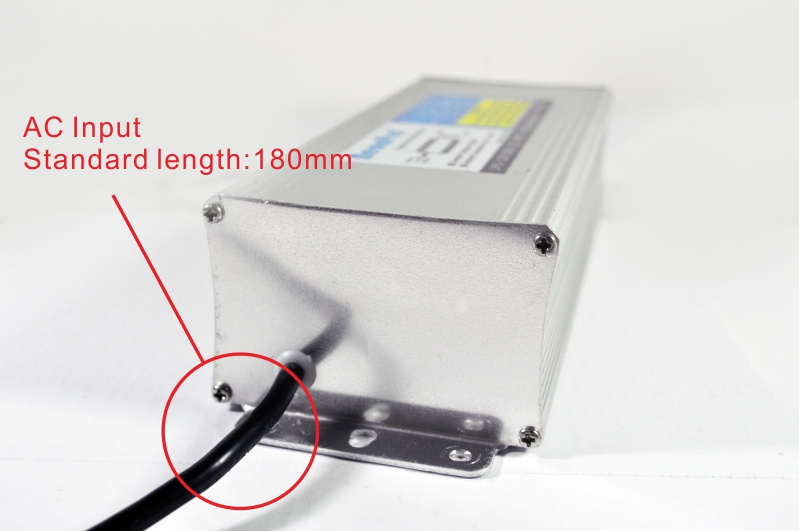

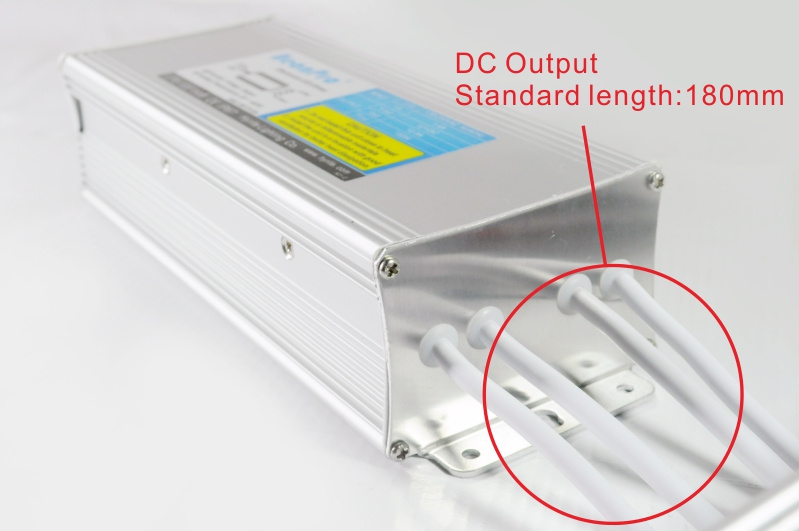

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*4 (18cm) |
|---|
| Dimensions(L*W*H) | 242*87*57.5 mm |
|---|
| Weight(kg) | 1.6900 |
|---|
| Packing information | 10 Pcs/ Carton, G.W 19KG |
|---|

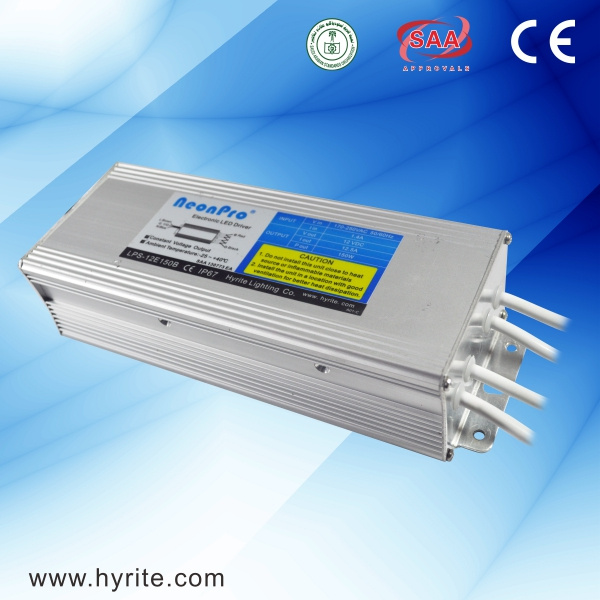

3.Detail pictures of LED driver
4. Projects around the worldOur projects covering banks, shops and buildings all over the world.
LED Power Supply suitable for Office lighting, Artwork lighting, Display case
Home lighting
Commercial lighting, such as down light, underground lamp, Panel light, Spotlight, Wall washer, etc.
Hotel, Restaurant lighting
Other public lighting
5. Our factory and production line:Hyrite is a professional manufacturer of LED power supply and LED module. We have more than 20 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor LED power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
(1) Office show
We have more then 300 staffs in our company and cover an area of 15000 in Guangdong, China with additional office in the USA
(2)Professionnal testing machine: SMT, Burn-in test machine...
(3) Production lines:
There are 12 production lines in our factory.
6. Certifications and standards:CE, UL for North America, SAA for Australia, TUV, RoHS, ISO, SASO for Saudi Arabia, EMC, PFC
7. Our Exhibitions:Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair...
7. Trade Terms:
(1). Payment term: T/T 30% deposit after order confirmed, the balance before shipping.
(2). Lead time: Normally in 10 days after deposit received
(3). Sample policy: Samples are always availble for each model. Samples can be ready in 5 days once payment received
(4). Shipping port: Guangzhou, China
(5). Discounts: We offer discount for big quantity
Contact us any time!
Hyrite lighting Co.
Tel: +86-0757-81200188-315
Fax: +86-0757-81200369
Website: www.hyrite.com
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
