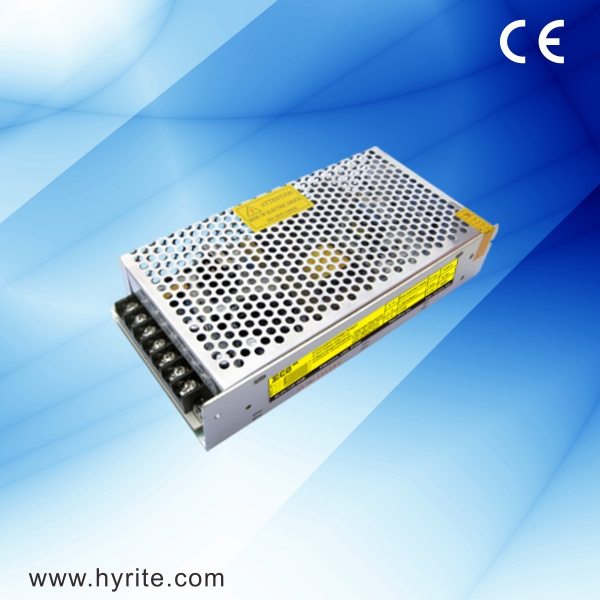

150W 12V Indoor Constant Voltage LED Driver with Ce

Name: 150W 12V Indoor Constant Voltage LED Driver with Ce
Brand: all-electronics-online.com
SKU: 781740765
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 7.9/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E400
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	150W Constant Voltage Transformer for LED Light
Outpower:	150W
Output Voltage:	12V
Input Voltage:	220-240V
Output Current:	12.5A
Installation:	Indoor
IP Rating:	IP 20
Cooling:	Free Air Convection
Size:	1604298(mm)
Packing Information:	50 PCS/ Carton, G.W 23G
Usage:	Vehicle
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

150W 12V indoor Constant Voltage LED driver with Ce

Feature of 150W constant voltage transformer for led light:
1. Slim body, iron and aluminum housing.
2. High efficiency rate > 85% .
3.Guarantee: 2 years .

Application of 150W constant voltage transformer for led light :
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting

Specification of 150W constant voltage transformer for led light :

Model no.	ELDV-12E150B
Input voltage	220-240VAC 50Hz
Max. power	150W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
Output voltage	12VDC ± 5%
Output current	12.5A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+50,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Housing	Aluminum and iron
Size	1604298(mm)
Packing information	50 Pcs/ Carton, G.W23 KG

FAQ :
1.Shipment:
Ocean or air transportation, international express
2.Normal lead time:
1 day for in stock and 10-15 days for out of stock product
3.Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4.Supply ability:
50000 units/month
5.MOQ:
10 units(but sample can be 1)
6. Discounts :
We offer discount for big quantity
7.OEM and ODM service.

More about Hyrite:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
