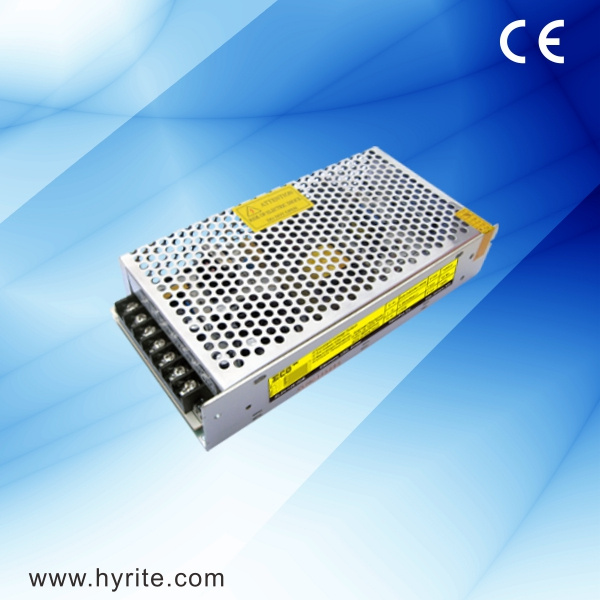

150W 12V Indoor LED Driver for LED Modules with Ce

Name: 150W 12V Indoor LED Driver for LED Modules with Ce
Brand: all-electronics-online.com
SKU: 748445255
Availability: InStock
Rating: 4.7 (56 reviews)

Price:	US $ 7.74-7.9/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E150B
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	12V
Output Current:	12.5A Max
Size:	1999842mm
Max. Power:	150 W Max
Output-Type:	Output Type
Power Factor:	Low
Efficiency:	75%
Installation:	Indoor
IP Rating:	IP20
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

150W High Performance Indoor Constant Voltage LED Driver

1. Features of led driver:
- Constant voltage output.
- Indoor.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2. Specifications of led driver:

Model no.	ELDV-12E150B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	150 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	12.5A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1999842 mm
Weight(kg)	0.6300
Packing information	30 Pcs/ Carton, G.W 18.7KG

3. Applications of led driver:
*LED module & LED strip
*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting

4. Important Parameter of led driver:
Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
