150W 12V Rainproof LED Transformer with Ce Bis

Name: 150W 12V Rainproof LED Transformer with Ce Bis
Brand: all-electronics-online.com
SKU: 748356455
Availability: InStock
Rating: 4.4 (99 reviews)

Price:	US $ 9.79-10.3/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLDV-12E150D
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Rldv-12e150d
Input Voltage:	180-250 VAC 50/60 Hz
Max. Power:	150 W Max
Dimming:	No
Efficiency:	>83%
Output Voltage:	12VDC ± 5%
Output Current:	12.5 a Max
IP Rating:	IP23
Power Factor:	0.65
Installation:	Outdoor Rainproof
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Certification:	Bis
Brand:	Neonpro
Power Supply Voltage:	AC180-250V
In-Out:	AC to DC

Product Description

1.150W Small Size Rainproof Led Transformer with CE

- Constant voltage output.
- Rainproof.
- Output voltage adjustable.
-100%burn-in test
-Free Air convection cooling with aluminum housing
-No electric fan

2.Technical Specification of LED transformer

Model no.	RLDV-12E150D
Input voltage	180-250 VAC 50/60 Hz
Max. power	150 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	>83%
Output voltage	12VDC ± 5%
Output current	12.5 A max
Installation	Outdoor rainproof
IP rating	IP23
Cooling	Free air convection
Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)
Dimensions(LWH)	1829050mm
Weight(kg)	0.61
Packing information	40Pcs/ Carton, G.W 24.5KG

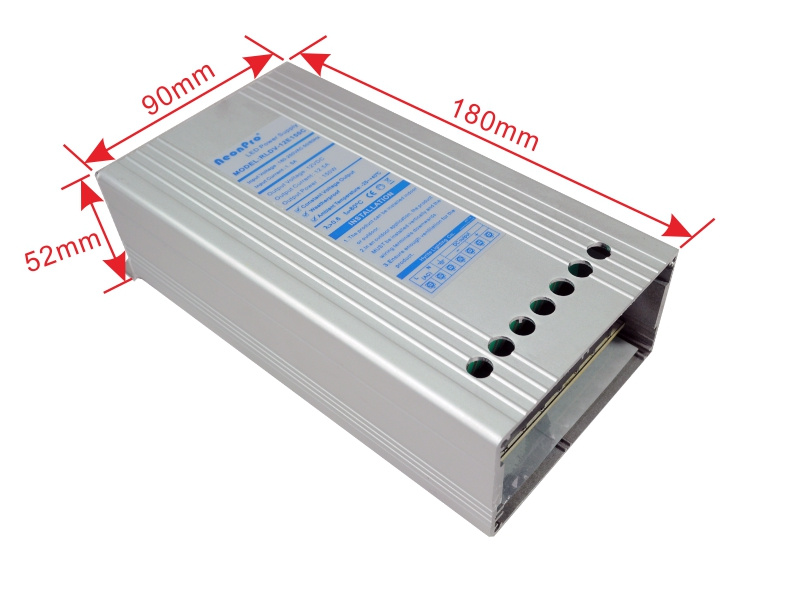

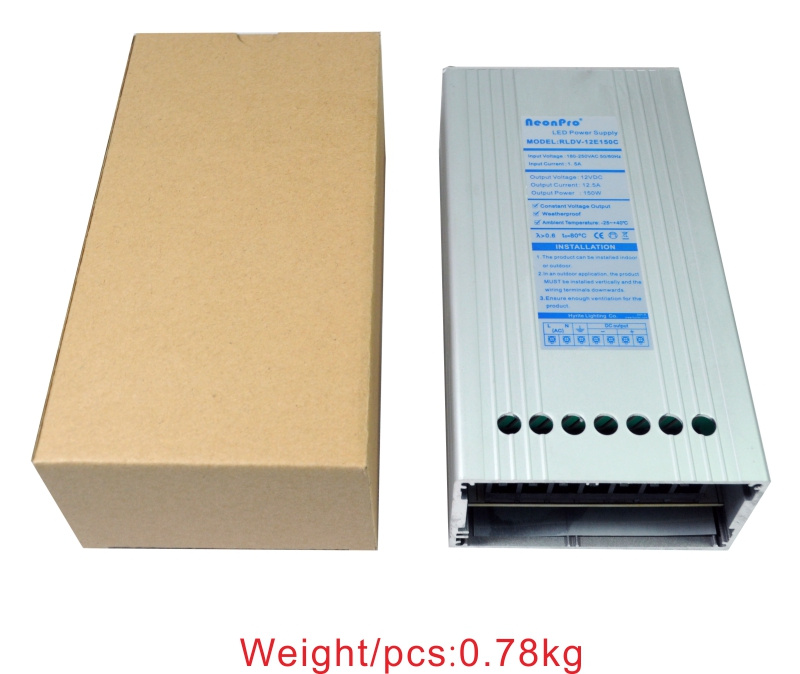

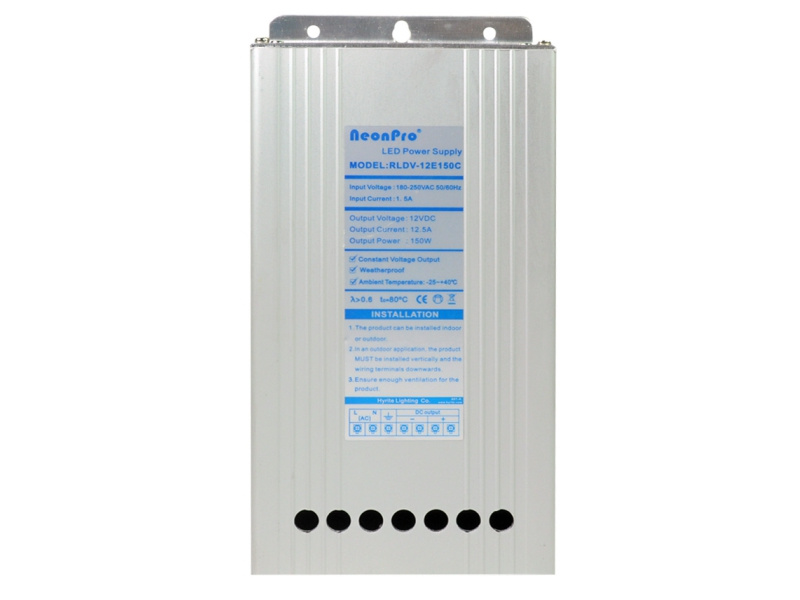

3.Detail pictures of LED LED transformer:

4. Applications of led transformer:

*LED modules and LED strips
*LED light box and channel letter
*LED-neon tube
*Bar light
*Other signage lighting

5. Important Parameter of led transformer:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP45

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
