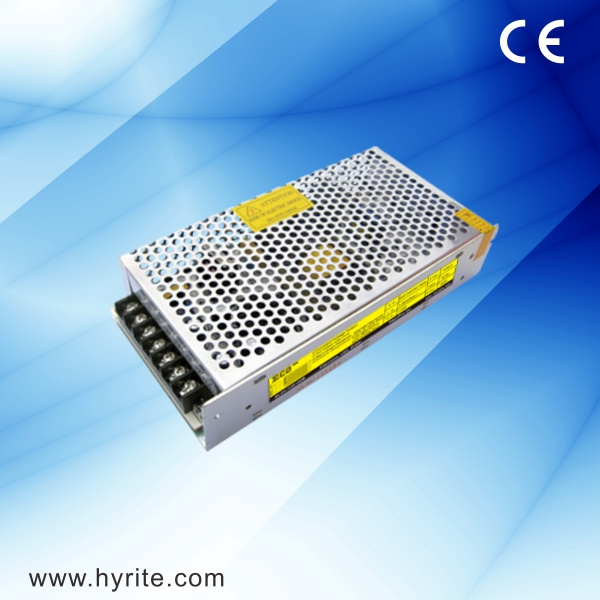

150W 24V Constant Voltage LED Driver for LED Modules

Name: 150W 24V Constant Voltage LED Driver for LED Modules
Brand: all-electronics-online.com
SKU: 748469635
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 8.69/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E150B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	24V
Output Current:	6.25A Max
Size:	1999842mm
Power Factor:	Low
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Weight(Kg):	0.6300
Packing Information:	30 PCS/ Carton, G.W 18.7kg
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC220-240V
Brand:	Eco

Product Description

150W 24V Indoor Constant Voltage LED Driver with CE

1. Features of LED Driver:
- Constant voltage output LED Driver.
- Indoor LED Driver.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2. Specifications of of LED Driver

Model no.	ELDV-24E150B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	150 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	6.25A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1999842 mm
Weight(kg)	0.6300
Packing information	30 Pcs/ Carton, G.W 18.7KG

3. Applications of LED Driver:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting

4. Important Parameter of LED Driver:
Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20
