150W 48V Single Output Mini High Voltage Power Supply

Name: 150W 48V Single Output Mini High Voltage Power Supply
Brand: all-electronics-online.com
SKU: 832311725
Availability: InStock
Rating: 4.9 (71 reviews)

Price:	US $ 8.8-9.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-150-48
Type:	Constant Voltage
Material:	Aluminum Case
Weight:	0.55kg
MOQ:	1-5PCS Sample Order
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Test:	100% Full Load Burn-in Test
Voltage:	48V
Current:	3.13A
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

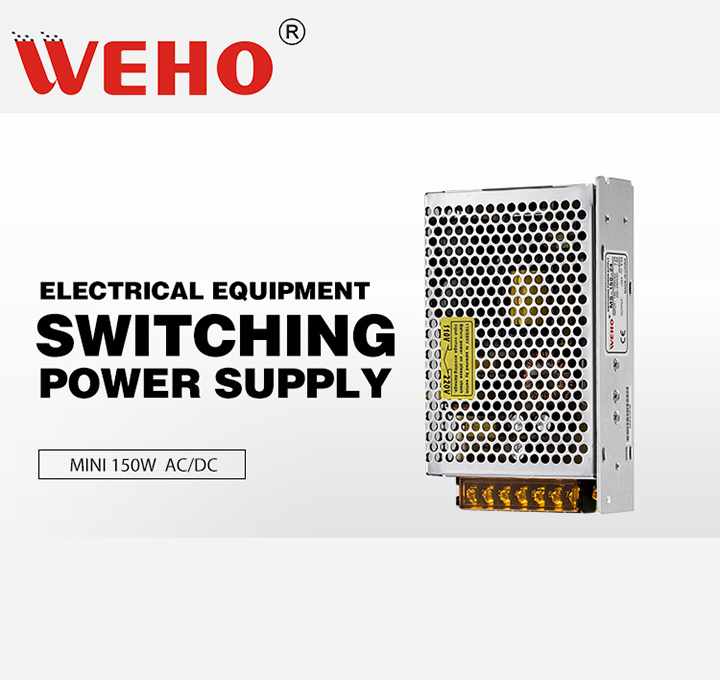

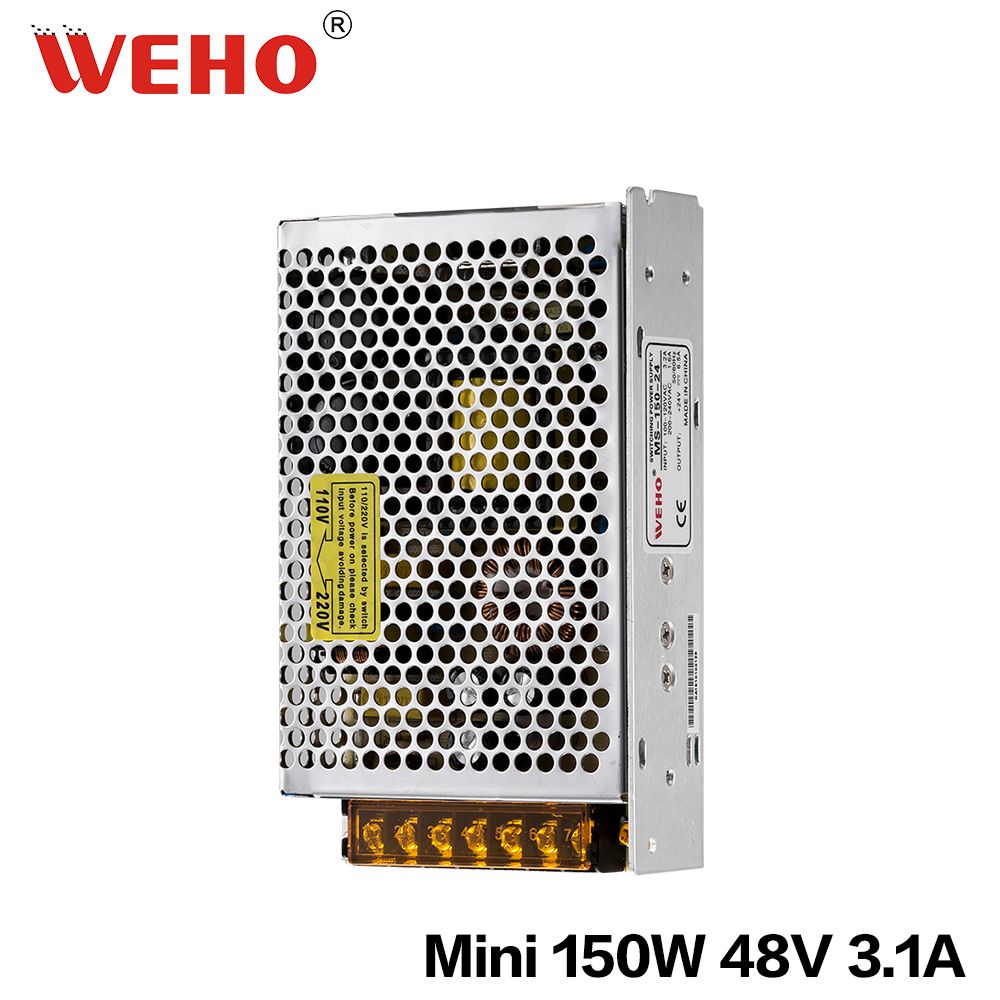

150W 48v single output mini high voltage power supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

SPEC	MODEL	MS-150-12	MS-150-15	MS-150-24	MS-150-27	MS-150-48	MS-150-36
Output	DC Voltage	12V	15V	24V	27V	48V	36V
	Rated current	12.5A	10A	6.25A	5.5A	3.2A	4.17A
	Current range	0-12.5A	0-10A	0-6.25A	0-5.5A	0-3.2A	0-4.17A
	DC power	150W	150W	150W	150W	150W	150W
	Voltage ADJ.range	±10%	±10%	±10%	±10%	±10%	±10%
	Voltage tolerance	±1%	±1%	±1%		±1%	±1%
	Ripple and noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
	Intet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Intput	AC voltage range	90~132VAC/180~264VAC 47~63Hz ; 254~370VDC
	Current	15A/115V 30A/230V
	Efficiency	83%	84%	86%	86%	86%	86%
	AC Inrush current	Cold-start current 18A/115V 36A/230V
	Leakage current	< 1mA/240VAC
Protection	Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
	Over voltage	13.8~16.2V		27.6~32.4V		55.2~64.81
	Over voltage	200ms,50ms,20ms
Safety	Setup,rise, hold up time	200ms,50ms,20ms
	Vibration	10~500Hz,2G 10min,/1 cycle
	Withstand voltage	Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
	Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
W T	Temperature coeffi cient	±0.03%/°C (0~50°C )
	Working temperature and humidity	-10°C ~+50°C,20%~90%RH
	Store temperature and humidity	-20°C ~+85°C,10%~95%RH
	Overall dimension	159×98×38mm 30PCS/CARTON
Other	Weight	0.55Kg
