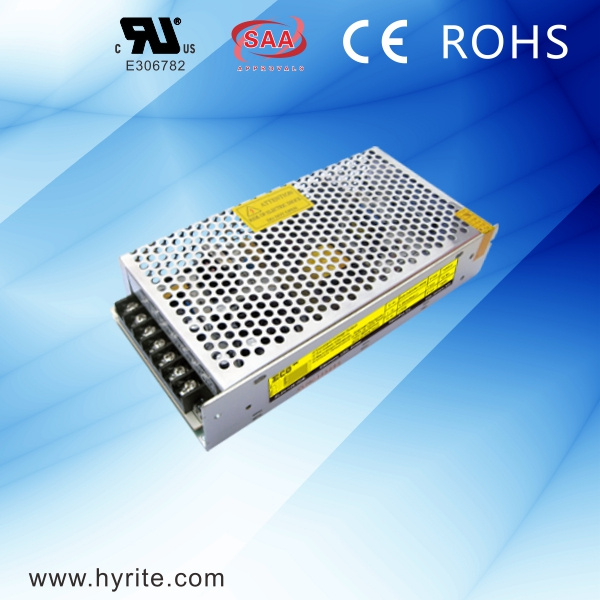

150W 5V IP20 Indoor LED Driver for LED Signage

Name: 150W 5V IP20 Indoor LED Driver for LED Signage
Brand: all-electronics-online.com
SKU: 728310185
Availability: InStock
Rating: 4.9 (71 reviews)

Price:	US $ 11.21-11.8/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-5E150B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	5V
Output Current:	30A
Dimming:	No
Built-in Active Pfc:	No
Power Factor:	Low
Efficiency:	75%
Installation:	Indoor
Dimensions(LWH):	1999842 Mm
Packing Information:	300 PCS/ Carton, G.W 18.7kg
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

150W 5V IP20 Indoor LED Driver for Commercial Lighting Project

1. Feature of LED driver:

*Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
*Constant voltage output
*Mesh case (or electric fan) for ventilation
*100% burn-in test

2.Technical Specification of LED driver:

Model no.	ELDV-5E150B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	150 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	30A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1999842 mm
Weight(kg)	0.6300
Packing information	300 Pcs/ Carton, G.W 18.7KG

3. Application of LED driver
LED module & LED strip
LED light box and channel letter
LED neon light
LED bar
Other signage lighting.

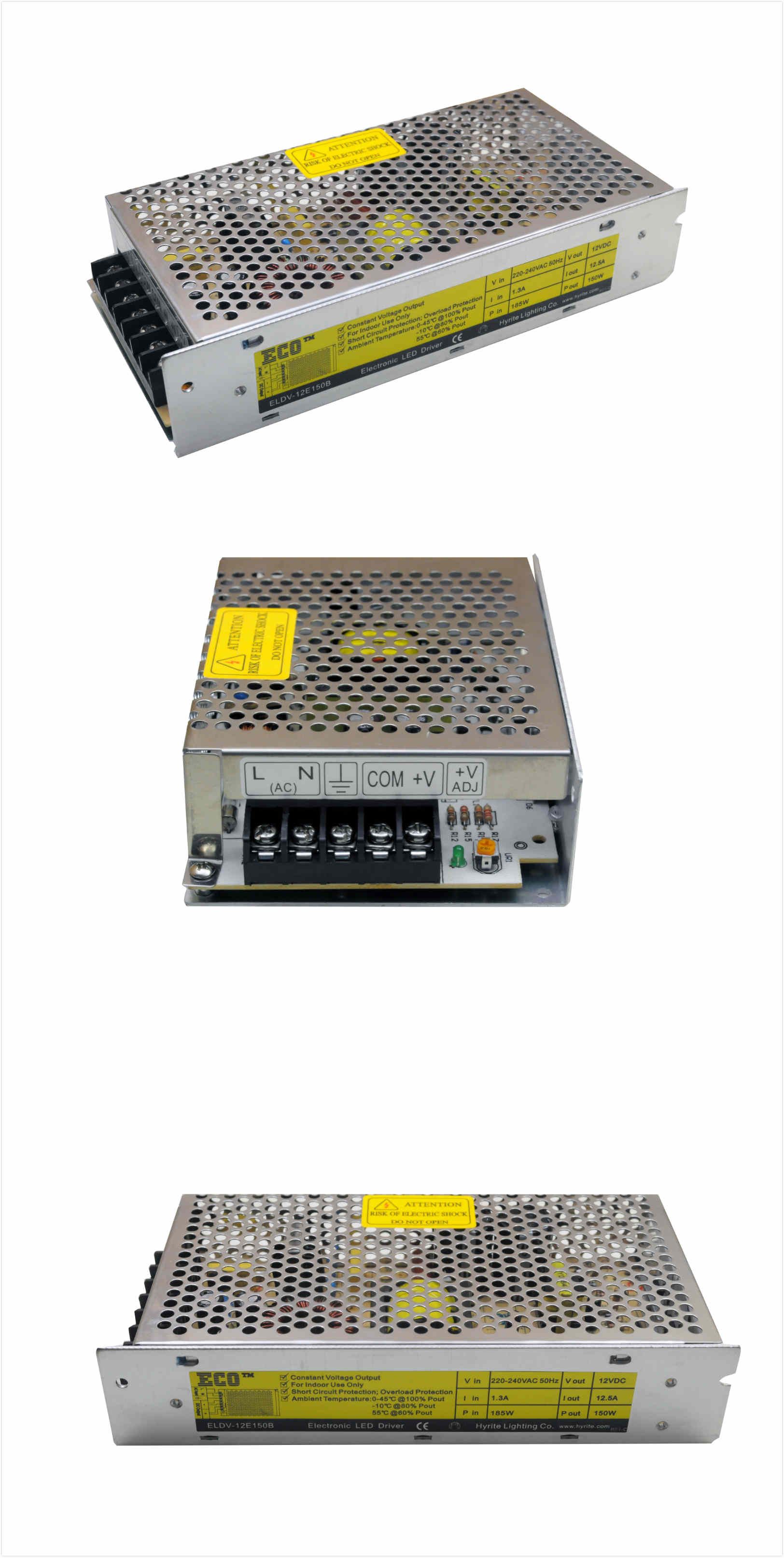

4.Product Pictures of LED driver:
