Product Description

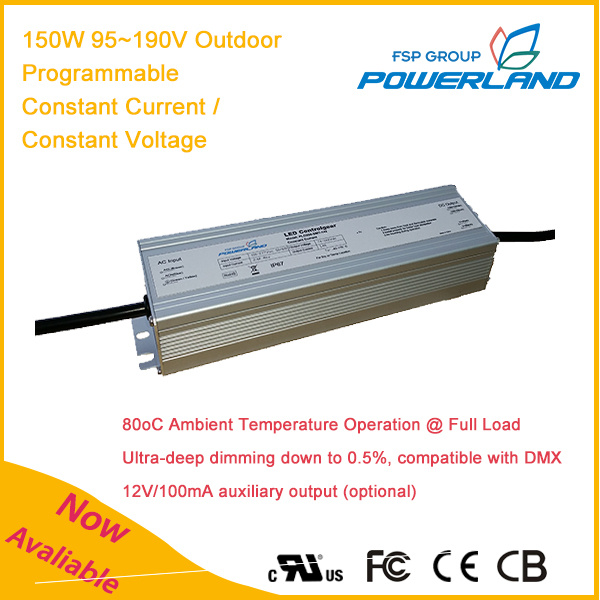

150W 0.95A 95~190V Outdoor Programmable Constant Current LED Driver
Powerland's PLD150-SMT-190 offers high-temperature, digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 0.95A and designed for 0(0.05)-10V/
PWM/Rset/Clock/DMX ultra-deep dimming applications.
ApplicationsUltra-Hostile-Environmental(UHE) LED lighting
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 150W | 95V
…
190V | 0.95A | 94% | 90oC | 2A | 173W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.Features80oC ambient temperature operation
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current & output voltage programmable
>100,000 hours lifetime at 75oC Tcase
>10 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant current & constant voltage output
Output current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock,DMX dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD150-SMT-190 |
| Output Voltage | 95~190V |
| Output Current | 0.95A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
| Dimming | 0(0.05V)~10V, PWM, External Resistor, Clock,DMX |
| Current Programmable | Yes |
| Output Power | 150W |
| Max. Current Ripple | 100mA |
| Max. Voltage Ripple | ±0.5% |
| Voltage Range | 90~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 2A |
| Max. Input Power | 173W |
| Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 94% |
| Max. Open Circuit Voltage | 205V |
| THD | <20% @ 100-277Vac & 80~100% full load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+80oC |
| Max. Case Temperature | 90oC |
| Surge Protection | L-N 5.5kV, L/N-Earth 11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Dimension | 230x68x425 mm (9.06x2.68x1.67 inch) |
| Mounting Length | 242 mm (9.53 inch) |
| Overall Length | 256 mm (10.08 inch) |
| Weight | 1.45 kg (3.20 lb) |
| Life Time | >100,000 hours @ full load, 75oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Dreating Curve
Electrical Specifications

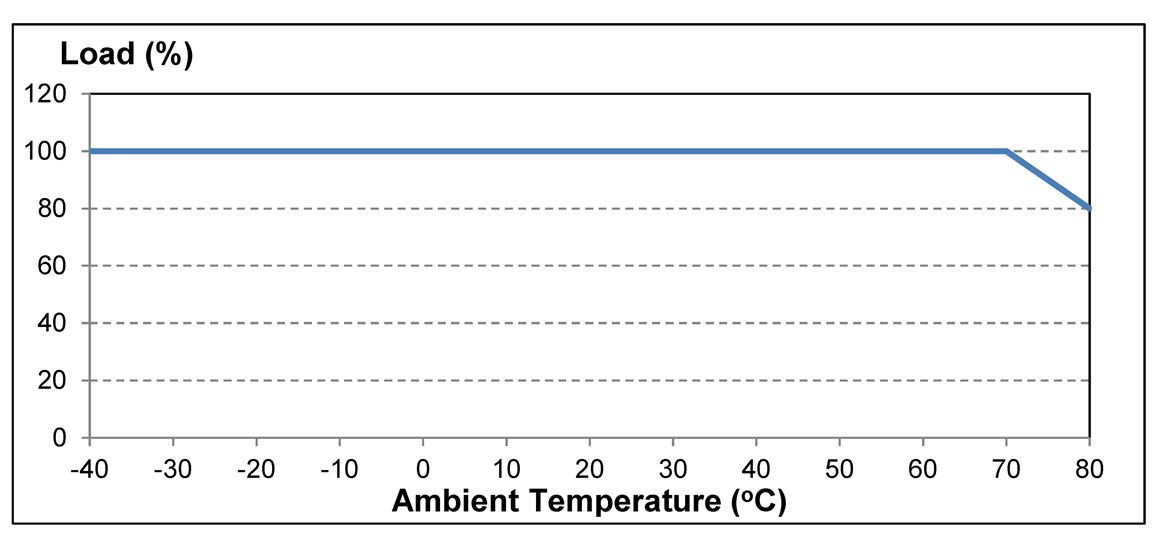

Output Current vs. Case Temperature (with ±5oC Tolerance)
Electrical Specifications

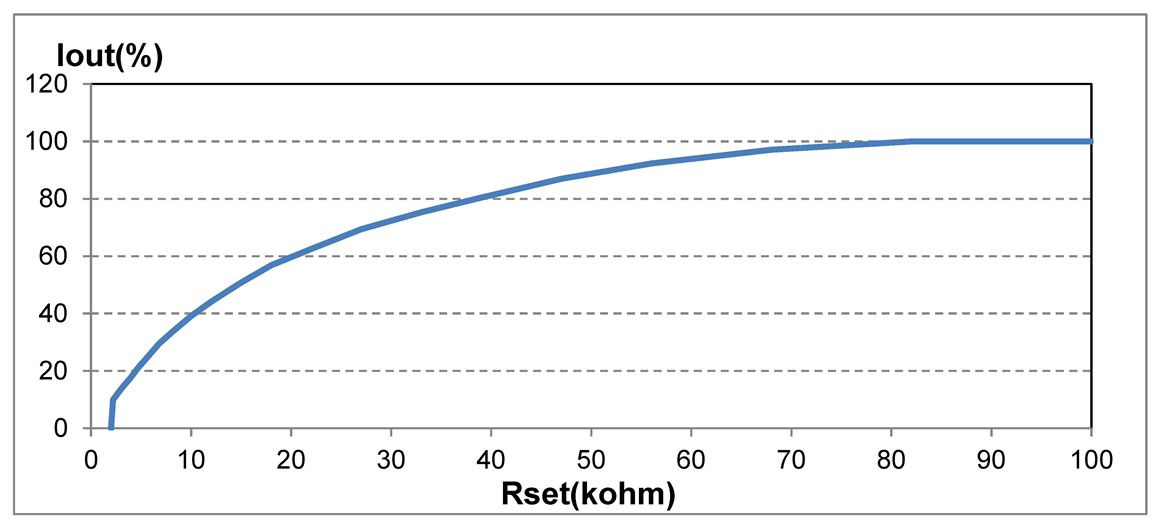

Output Current vs. External Setting Resistor
Performance Characteristics

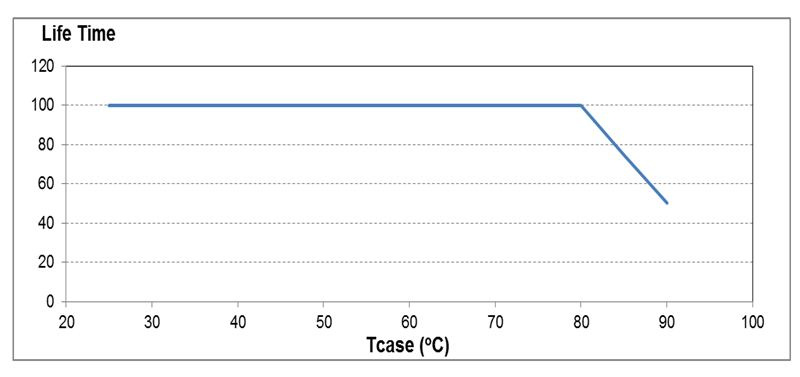

Life Time vs. Case Temperature
Performance Characteristics

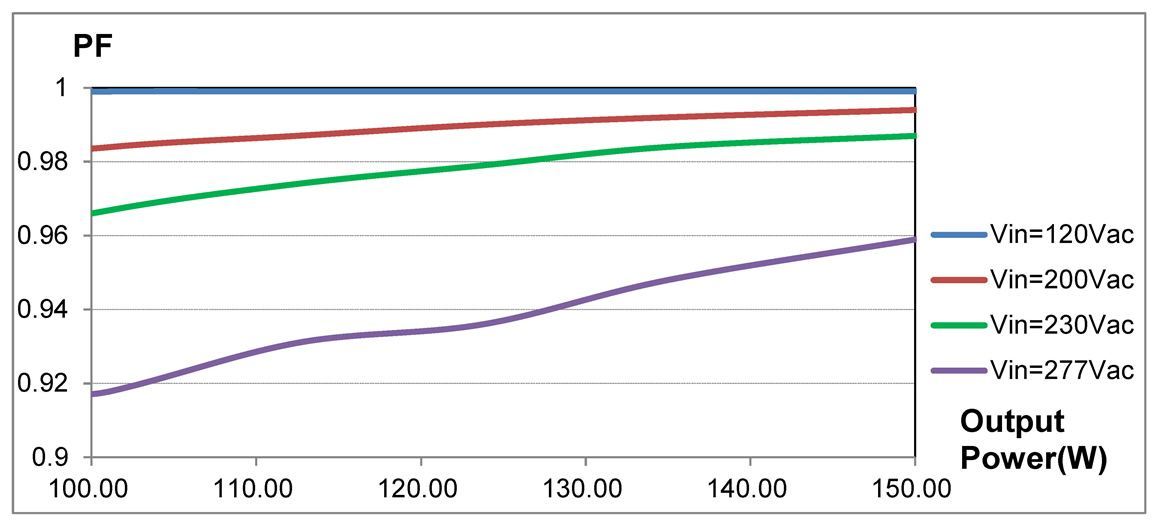

Power Factor vs. Output Power

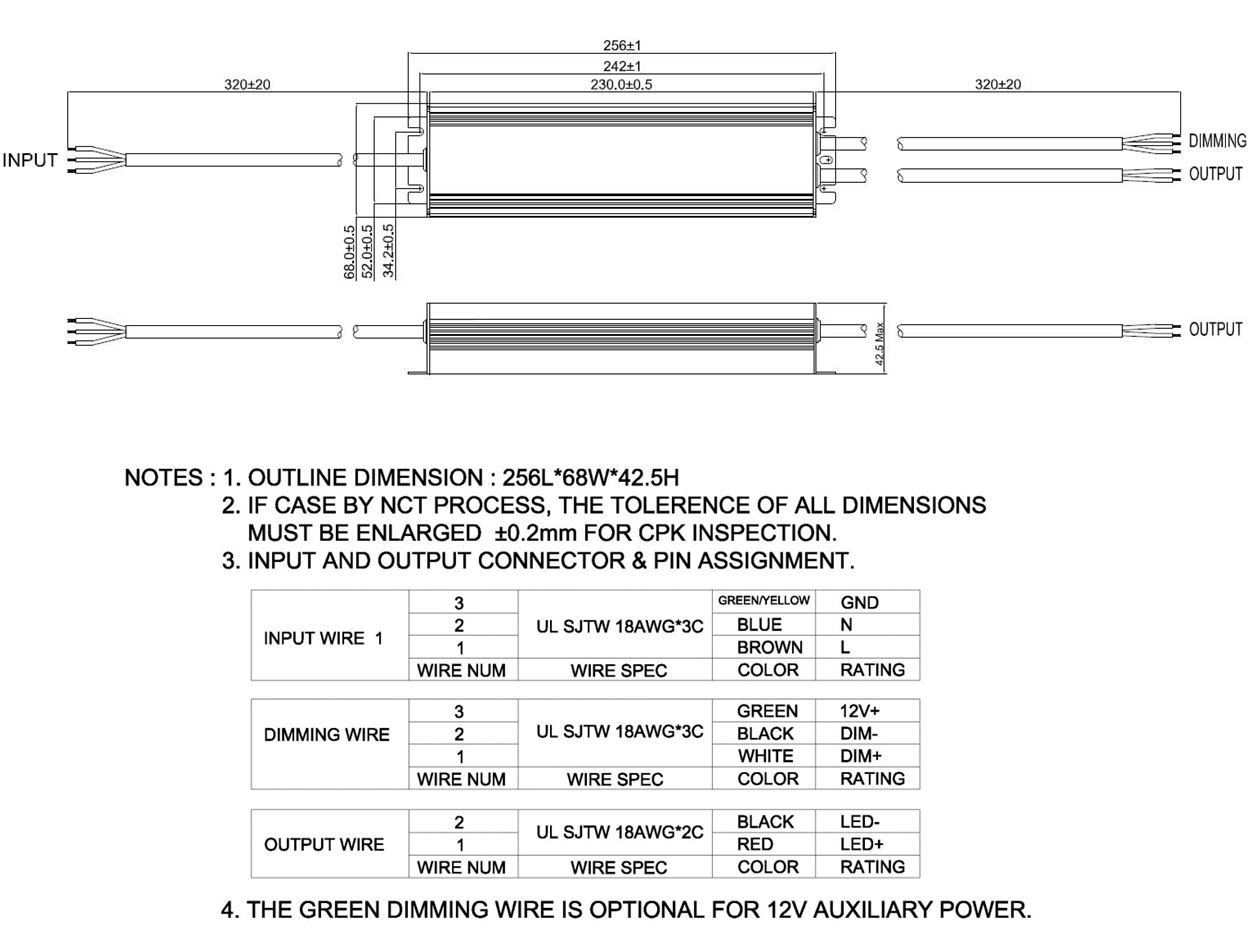

Mechanical Specification
FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.
Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.
Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
