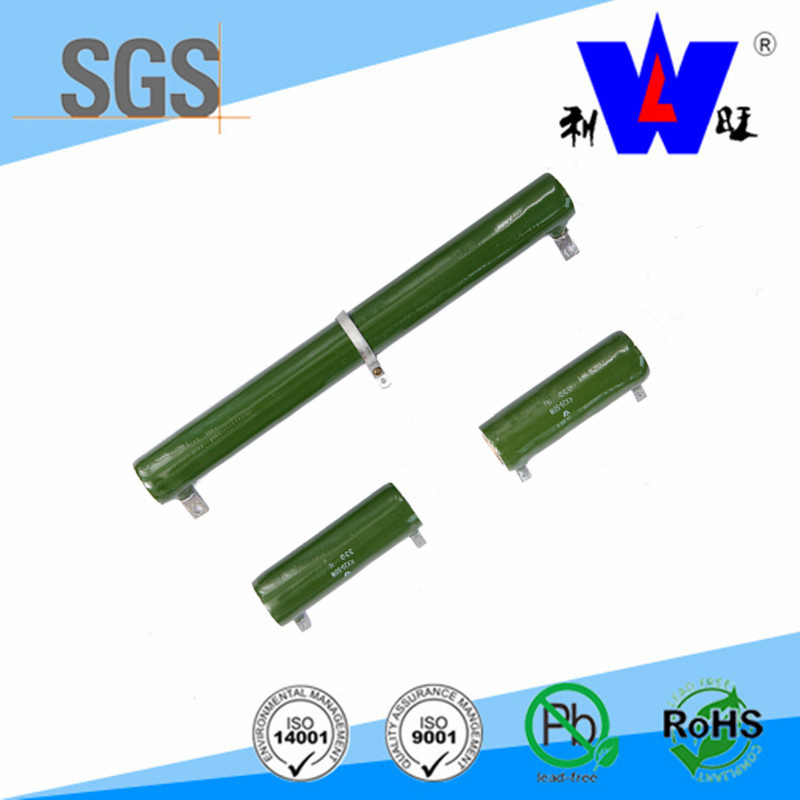

150W Enamel Wire Woud Resistor for Power Supply

Name: 150W Enamel Wire Woud Resistor for Power Supply
Brand: all-electronics-online.com
SKU: 822145635
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 0.1-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX20
Product Name:	150W Enamel Wire Woud Resistor for Power Supply
Quality Certification:	ISO9001: 2008
Environmental Certification:	ISO14000
Resistance Tolerance:	5%,10%
Color:	Green
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Photoresistor
Brand:	Liwang

Product Description

150W enamel wire woud resistor for power supply
1. Wide range of power(8W-3000W);
2. Coated with glaze paint, Anti-eat off, Anti high temperature, canbe used under bad envinment;
3. Anti wet, good insulation, powerful overload capacity, stability hotful, long-life operating;
4. T-type resistance can be changed, convenience for resistance turned.

Specifications of 150W enamel wire woud resistor for power supply:
1. High quality
2. RoHS compliant&ISO9001(2008)
3. Specilized resistor manufacturer

Dimensions of 150W enamel wire woud resistor for power supply:

Type	Rated Power(W)	Resistance range(Ω)
Type	Rated Power(W)
RXYC-(2.5)	(2.5)	5.2~430	__
RX20-8	8	5.1~3.3K	__
RX20-10	10	5.1~10K	5.1~200
RX20-16	16	5.1~10K	5.1~220
RX20-(20)	(20)	5.1~10K	5.1~220
RX20-25	25	10~24K	10~510
RX20-(30)	(30)	10~30K	10~1K
RX20-40	40	20~51K	20~1.2K
RX20-50	50	20~51K	20~1.2K
RX20-75	75	24~56K	20~1.5K
RX20-100	100	20~62K	24~2.7K
RX20-150	150	20~150K	20~4.3K

Advantage of our company:
1. Competitive price
2. High stability and high quality
3. Prompt shipment

Selling point:
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.

It's our pleasure to be on service of you.Thanks.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
