150W LED Driver 12V 11A Power Supply

Name: 150W LED Driver 12V 11A Power Supply
Brand: all-electronics-online.com
SKU: 838899415
Availability: InStock
Rating: 4.7 (29 reviews)

Price:	US $ 13.9/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-120110
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Certification:	FCC
Brand:	ODM

Product Description

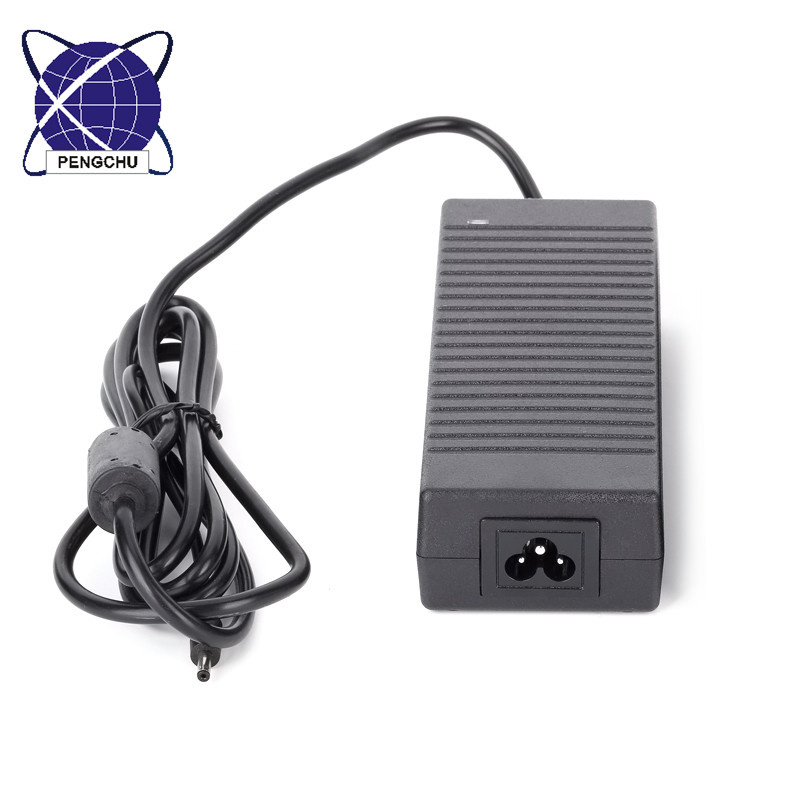

150W LED Driver 12V 11A Power Supply

Input voltage: 100-240VAC 50 / 60Hz. Products through the UL / FCC / GS / CE / RoHS certification. Adapt to a wider range. Input, output overvoltage protection, short circuit protection, overcurrent protection, cleverly improved protection.

Product Description:

Model No:PC-120110

AC input: 100-240Vac, 50/60HZ

DC voltage: 12V

Rated current: 11A

Rated power: 150W

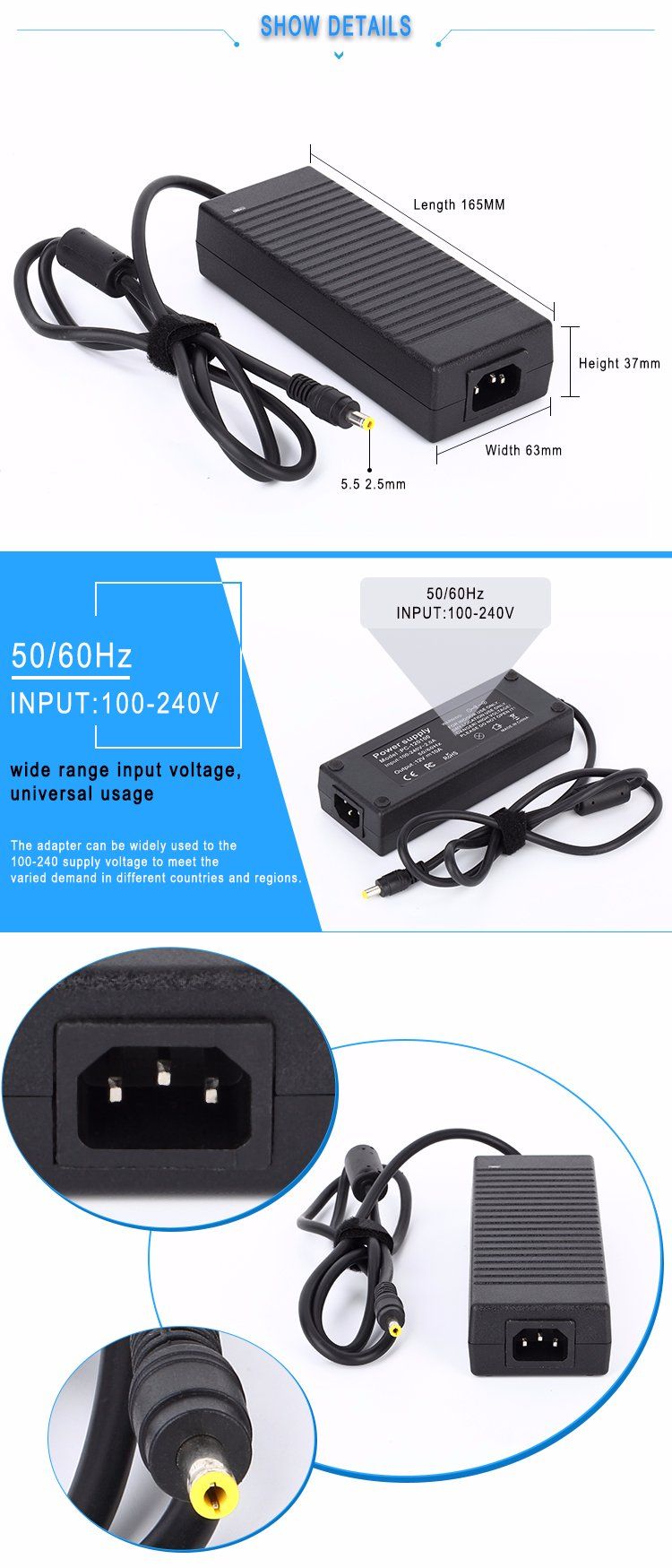

Dimension: 165*63*37MM

Certification: CE ROHS FCC UL

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50ºC (±10ºC)

Storage Temperature: -40-80ºC (±10ºC)

DC connector: 5.5*2.1mm 5.5*2.5b 4 PIN connector

DC Power Cord: 1.2M/1.5M/1.8M(Customized Available)

AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs
