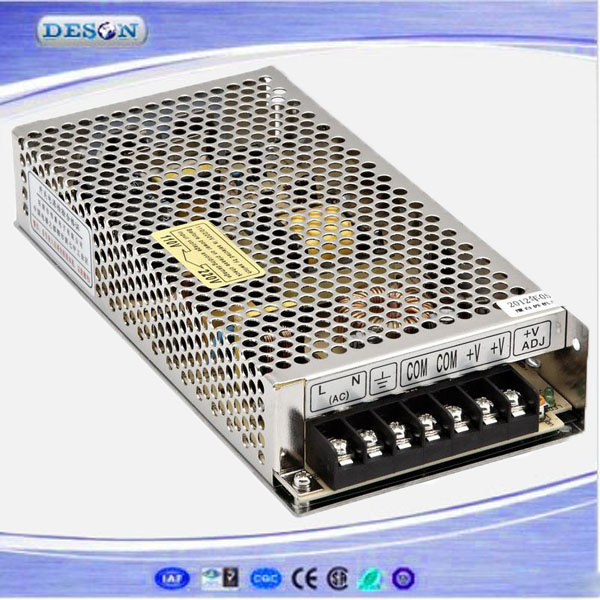

150W Single Output LED Power Supply

Prod Model:	S-150
Power:	120W
Input:	AC100-240
Output:	5V/12V/24V
Size:	159X98X38mm
Weight:	0.6kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	150W
Brand:	Deson
Energy Transmission:	LED Power Supply

Product Description

150W Single Output LED Power Supply

1.Universal AC Input
2.Compact size , light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Soft-start current can reduce the AC input impact effective
7. 2 years warranty

Product Description


Model Specification	S-150-5	S-150-7.5	S-150-12	S-150-13.5	S-150-15	S-150-24
DC Output voltage	5V	7.5V	12V	13.5V	15V	24V
Output voltage range(Note:2)	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	30A	20A	12.5A	11.2A	10A	6.5A
Output current range	0~30A	0~20A	0~12.5A	0~11.2A	0~10A	0~6.5A
Wave and noise(Note:3)	150mVp-p	150mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.2%
Load stability(Note:5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.2%
DC output power	150W	150W	150W	151.2W	150W	156W
Efficiency	80%	80%	82%	83%	84%	85%
Adjustable range for DC voltage	4.5~5.6V	6~8.3V	10.6~13.2V	12~15V	13.5~16.5V	21~28V
AC input voltage range	85~132VAC/176~264VAC selected by switch 47~63Hz,248~370VDC
Input current	3.2A/115V 1.6A/230V
AC Inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105 ~ 150%  Protection type :pulsing hiccup shutdown Reset: auto recovery.
Over-voltage protection	115%~135% Protection type :shut off output
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	100ms, 50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
