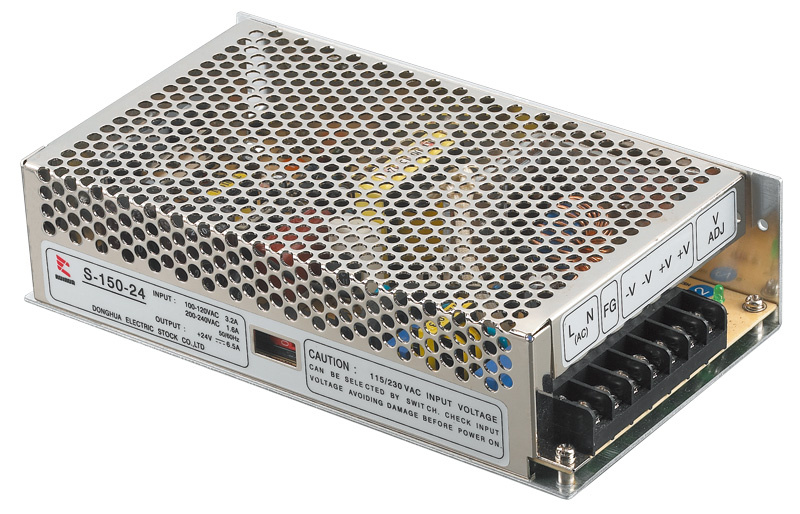

150W Single Output Switching Power Supply (HS-150)

Prod Model:	HS-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Dhecn
Output Power:	150~156W
Input Voltage:	88~132/176~264 VAC

Product Description

Features:
· High efficiency, high reliability
· AC input range selected by switch
· 100% full load burn-in test
· Protection: Short circuit/ Over load / Over voltage
· Cooling by free air convection
· Fixed switching frequency at 25KHz
· 2 years warranty

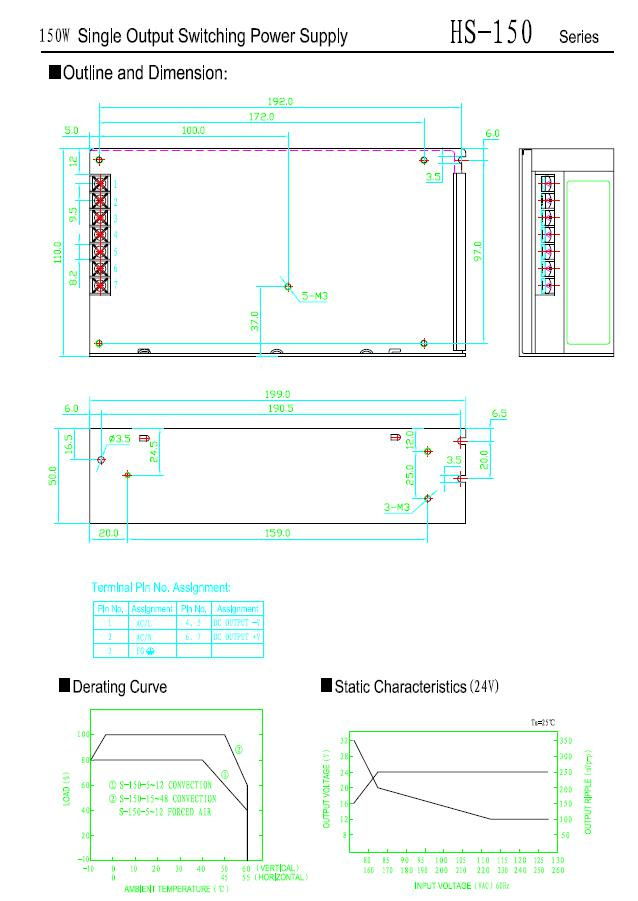

· Dimensions: 199*110*50mm(L*W*H)

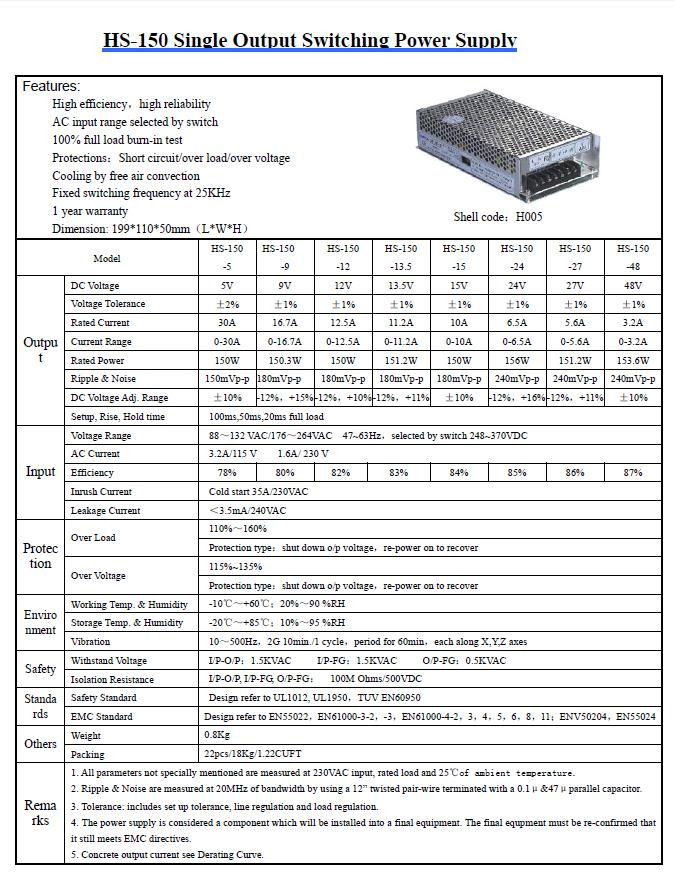

Specification

1)INPUT
· Voltage Range: 88~132 VAC/176~264VAC47~63Hz, selected by switch248~370VDC
· AC Current: 3.2A/115 V 1.6A/ 230 V
· Efficiency: 78%(HS-150-5); 80 %(HS-150-9); 82%(HS-150-12); 83%(HS-150-13.5);
84%(HS-150-15); 85%(HS-150-24); 86%(HS-150-27); 87%(HS-150-48);
· Inrush Current: Cold start 35A/230VAC
· Leakage Current: <3.5mA/240VAC

2)PROTECTION
· Over Load: 110%~160% Protection type: Shut down o/p voltage, re-power on to recover
· Over Voltage: 115%~135% Protection type: Shut down o/p voltage, re-power on to recover

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012, UL1950, TUV EN60950
· EMC Standard: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024

5)OUTPUT
· Model: HS-150-5 HS-150-9 HS-150-12 HS-150-13.5 HS-150-15 HS-150-24 HS-150-27 HS-150-48
· DC Voltage: 5V 9V 12V 13.5V 15V 24V 27V 48V
· Voltage Tolerance: ± 2% ± 1% ± 1% ± 1% ± 1% ± 1% ± 1% ± 1%
· Rated Current: 30A 16.7A 12.5A 11.2A 10A 6.5A 5.6A 3.2A
· Current Range: 0-30A 0-16.7A 0-12.5A 0-11.2A 0-10A 0-6.5A 0-5.6A 0-3.2A
· Rated Power: 150W 150.3W 150W 151.2W 150W 156W 151.2W 153.6W
· Ripple & Noise: 150 mVp-p 180 mVp-p 180 mVp-p 180 mVp-p 180 mVp-p 240 mVp-p 240 mVp-p 240 mVp-p
· DC Adjustment Range: ± 10% -12%; +15% -12%; +10% -12%; +11% ± 10% -12%; +16% -12%; +11% ± 10%
· Setup, Rise, Hold Time: 100ms, 50ms, 20ms at full load
