| Prod Model: |
QW150-100-AW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
LED Driver |
| Dimension: |
236*64*45 mm (L*W*H) |
| Weight: |
1.10kg/PCS / 15PCS/CTN |
| Warranty: |
One Year |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Pack Sealing Size: |
236*64*45 mm |
Product Description

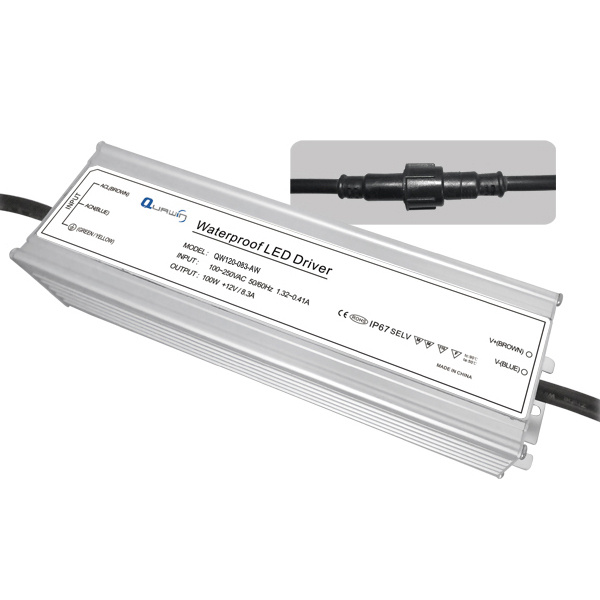

150W Single Output Waterproof LED Driver
1. High efficiency 91%
2. Low cost, high reliability
3. Full range 90~130VAC/170~250VAC
4. Protections:
. Short-circuit
. Over-load
. Over-voltage
. Over-temperature
5. Working temperature: -40 degree~ + 70 degree
6. IP67 design for indoor and outdoor applications
7.2~3 times burn-in tests (+50 degree/-40 degree at full load with over 14 hours)
8. Protection
1)Current protection-----± 1% (current limiting type) Constant current limit, recovers after faulty problem
Is removed
2)Over-Voltage-------110% ~ 130% (Shut down O/P voltage, repower on to recover)
3)Over-load-----------130% ~ 150% (Shut down O/P voltage, repower on to recover)
4)Short Circuit------Hiccup mode, recovers automatically after faulty problem is removed
5)Lightning Protection----Gas discharge tube automatically open to discharge, repower on to recover
6)Over-temperature------85degree± 10degree (Shut down O/P voltage, re-power on to recover)
9. Safety & EMC
1)Safety Standards------EN-61347-1, EN61347-2-13, IP67, ROHS Tests, Design refer to UL8750
2)Withstand Voltage-----I/P-O/P: 3KVAC, IP-FG: 1.5KVAC, OP-FG: 500VAC
3)Isolation Resistance----I/P-O/P IP-FG OP-FG: 100M Ohms/500VDC / 25degree / 70% RH
4)EMC Emission-------Compliance to EN55015: 2007, EN61547: 1995+A1: 2000; EN61000-3-2: 2006;
EN61000-3-3: 2008
5)EMC Immunity-------Compliance to EN55015 EN61547 EN61000-4-2, 3, 4, 5, 6, 8, 11
| Specification Sheet |
| Model | QW150-100-AW (Note 1) |
Output | Rated Voltage | 15VDC |
| Ouput Current Range | 0 ~ 10.0A |
| Rated Power | 150W |
| Ripple and Noise (Max)(Note 2) | 120mVp-p |
| Voltage Tolerance | ±3.0% |
| Line Regulation | ±1% |
| Load Regulation | ±1.0% |
| Set-up, Rise Time | 1500ms 80ms/230VAC, 2000ms 80ms/110VAC |
| Hold-up Time | 50ms/230VAC at full load, 25ms/110VAC at full load |
Input | Voltage Range | 90~130VAC/170~250VAC |
| Frequency Range Efficiency(Note 3) | 47~63Hz |
| 87.5% |
| AC Current | 0.75A ~ 0.25A |
| Inrush Current | Cold Start at 45A/230VAC, Input at Ta: 25degree cold start. |
| Leakage Current | 0.5mA at 230VAC, 60Hz Input |
Environment | Working Environment(Note 4) | -40degree ~ +70degree |
| Working Humidity | 20~90% RH non-condensing |
Storage Environment &
Humidity | -45degree~+80degree |
| TEMP. Coefficient | ±0.05%degree (0~50degree) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
Others | Life Span(Note 5) | ≥50000Hrs (25~30degree) |
| No Load power consumption | ≤3.0W |
| MTBF(Note 6) | 250K hrs min, MIL-HDBK-217F (25degree ) |
| Dimension(Note 7) | 236*64*45 mm (L*W*H) |
| Packing(Note 8) | 15pcs/carton |
| Weight | 1.10Kg/pcs / 15pcs/CTN |
Notes | All parameter are measured at normal temperature (+25 ~ +28degree) |
| 1. The rated voltage can be customized, such as 18V/27V^ can be customized |
2. Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf &
47uf parallel capacitor (at full load) |
3. The efficiency measured at Max output voltage, and 230VAC with full load, if with 110VAC the efficiency will
be lowered 1% ~ 2%; Working 1~2 hours, efficiency will be higher 0.5% ~ 1% than the initial stage |
| 4. This series can work -45 ~ -50degree (at full load), if need related parameter contact us. |
| 5. This measured at 120VAC, 80% ~85% load with environmental temperature about +25degree~+30degree, the outer housing temperature with +55degree or so. |
| 6. This measured at 120VAC, 80% ~85% load with environmental temperature about +25degree~+30degree, the outer housing temperature with +55degree or so. |
| 7. More details see the following mechanical draft. |
| 8. The 18pcs packing method is not suitable for led drivers with waterproof connector |
