150W Switching Power Supply for LED Modules

Name: 150W Switching Power Supply for LED Modules
Brand: all-electronics-online.com
SKU: 748408865
Availability: InStock
Rating: 4.6 (39 reviews)

Price:	US $ 10.5-11.55/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLDV-24E150D
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Rldv-24e150d
Input Voltage:	180-250 VAC 50/60 Hz
Max. Power:	150 W Max
Dimming:	No
Efficiency:	>83%
Output Voltage:	24VDC ± 5%
Output Current:	6.25A Max
IP Rating:	IP23
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

150W 24V PWM Stable quality PWM LED SMPS with CE

1. Features of LED switching power supply:
- Constant voltage output.
- Rainproof.
- Output voltage adjustable.
-100%burn-in test
-Free Air convection cooling with aluminum housing
-No electric fan

2.Specifications of switching power supply:

Model no.	RLDV-12E150C;RLDV-24E150C
Model series	RLDV
Input voltage	180-250 VAC 50/60 Hz
Power	150 W max
Output type	Constant voltage
Power factor	Low
Efficiency	>78%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12/24 VDC ± 5%
Output current	12.5A ;6.25A Max
Withstand voltage	I/P~O/P:3kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP23
Cooling	Free air convection
Connection input/output	Input:terminal Output: terminal(Four)

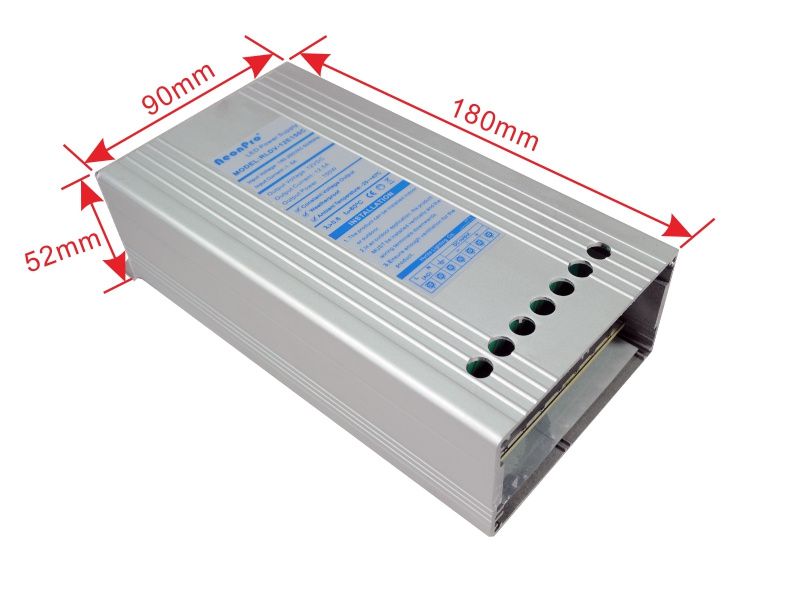

*Dimensions(LWH)*	1829052 mm
Weight(kg)	0.6000
Packing information	40 Pcs/ Carton, G.W 24 KG

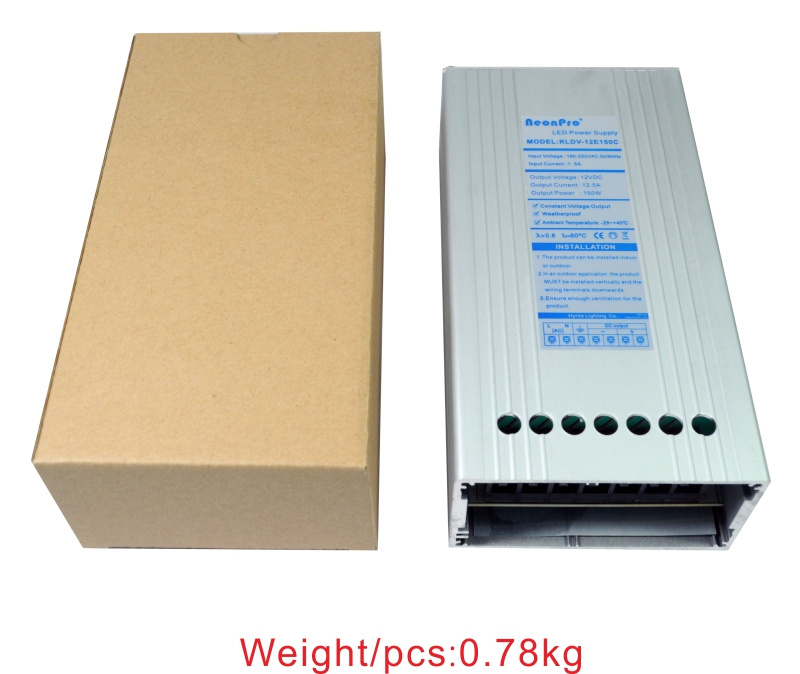

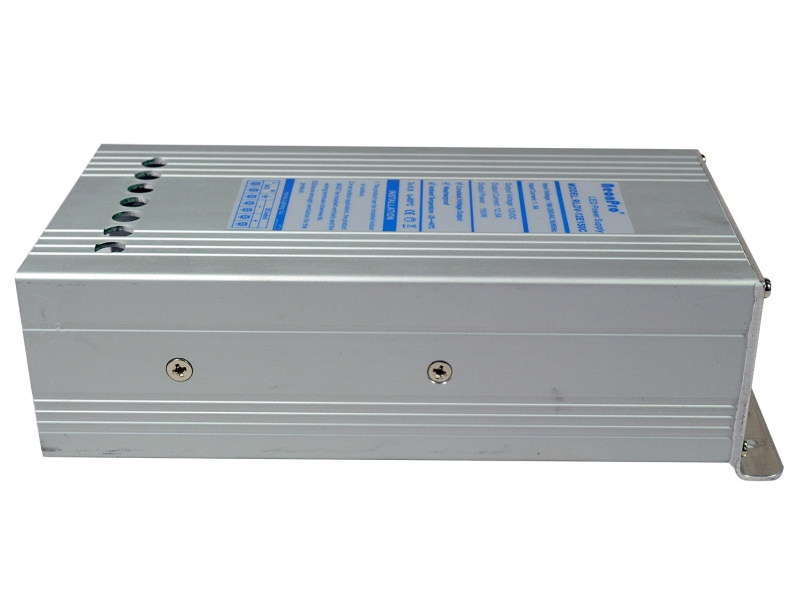

3.Detail pictures of switching power supply

4. Applications of switching power supply:
*LED module & LED strip
*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting

5. Important Parameter switching power supply:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
