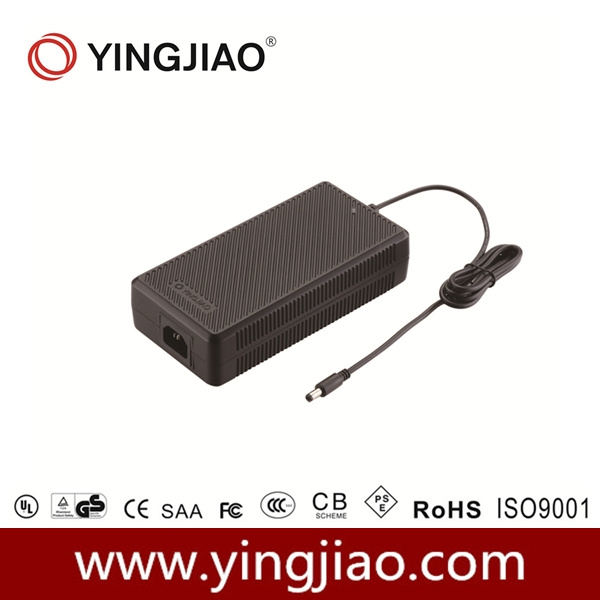

150W Universal Switching Power Adapter with Ce UL

Prod Model:	YS150
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Packaging:	PE Bag,White Box,Carton
Usage:	Display
Output Type:	AC or DC
Connection:	Plug In
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Product Description

We are a leading manufacture and export of switching and linear power adapters, transformers, power cords, charger, car chargers, etc
3-200W Switching Power Adapters, CE, RoHS, EMC, EUP compliance.

Switching Power Adapters

Model: YS150 series

Universal Input: 100-240V AC 50/60Hz
Range:120-160W
Rated Power: 150W max.
Dimension:190x90x47mm
N.W.:800g

Output Specifications:

Model	Output Load Voltage (V)	Max. Load Current (A)
YS120-XX480	48	3.5
YS120-XX240	24	7
YS120-XX190	19	7.9
YS120-XX150	15	10
YS120-XX120	12	12
YS120-XX090	9	16

XX-represent rated output power

Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 116mm (L)*52mm (W)*32mm (H)
N. W.: 260g
AC Input Plug: EU, US, UK, AUS, etc. Type optional
Output plug: Optional.


Packaging & Delivery
Packaging Details:PE bag,White Box+Carton or as customer's requirement.
Delivery Detail:15-25 days after receipt of client deposit.

our services:
We can design and manufacture power supply products according to the various demands of different customers.Also,ODM/OEM are always highly welcome here.

Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.
