150W Waterproof IP67 Outdoor Advanced Power Supply LED Driver

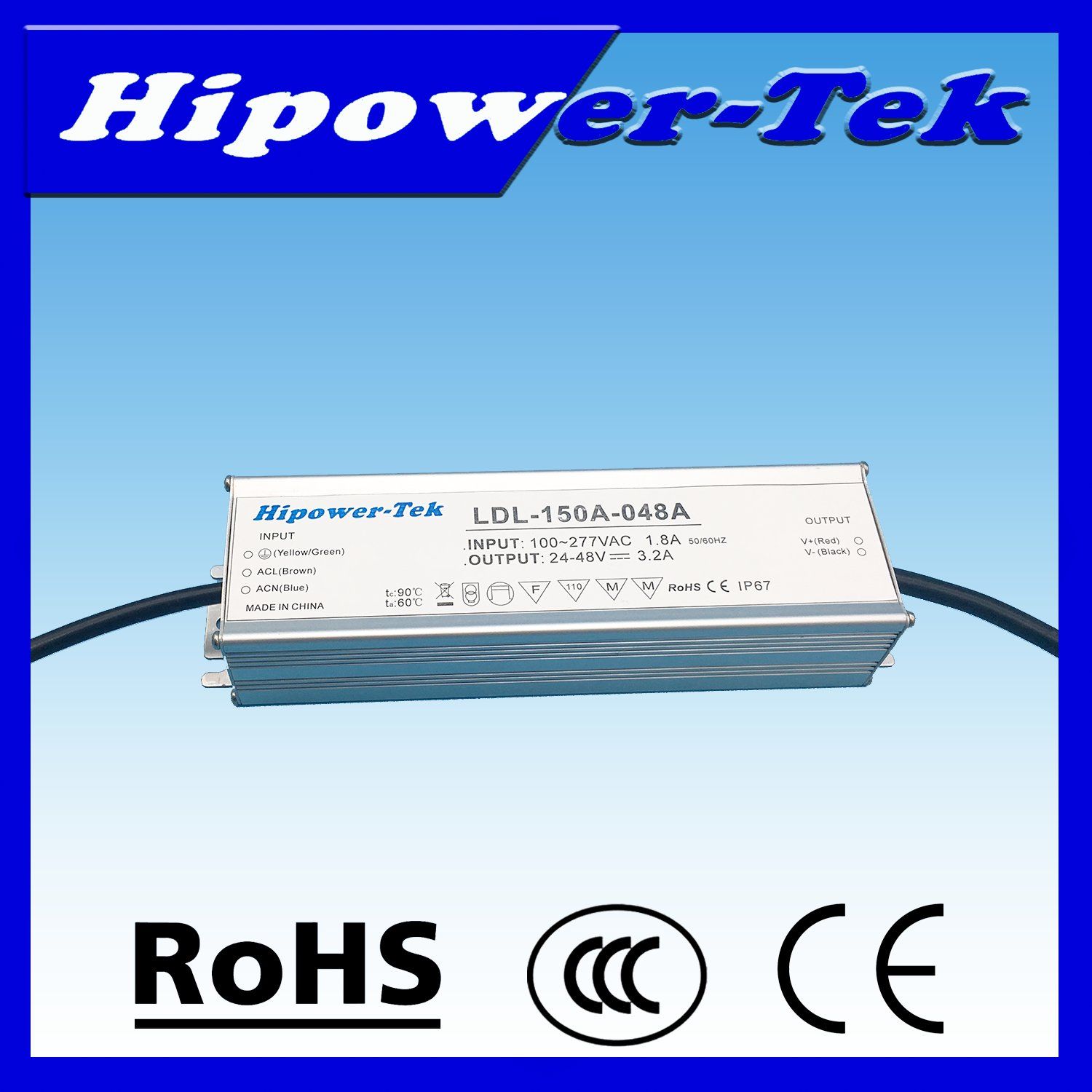

Name: 150W Waterproof IP67 Outdoor Advanced Power Supply LED Driver
Brand: all-electronics-online.com
SKU: 812305235
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	US $ 15.5-21.5/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LDA-150B
Input Voltge:	AC120-277V 90-305VAC
Power Factor:	0.99 @ 230VAC
Efficiency:	94.5% @230VAC
Tol.:	1%
Thd:	<10%
R&N:	150mv
Working Temperature:	-40 to +60 Degree
Level Of Protection:	IP 67
Warranty:	5 Years
Life Time:	>64000hrs

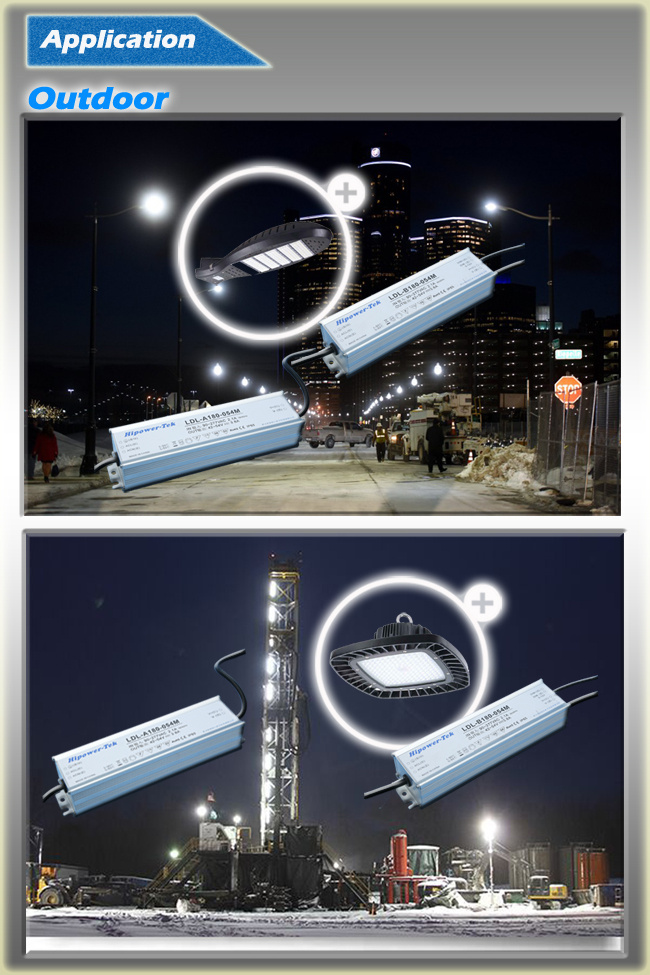

Usage:	Streetlight
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Modulation System:	PWM+Flyback
Power Supply Voltage:	AC120-277V 90-305VAC
Pack Sealing Size:	None
Brand:	Hipower-Tek

Product Description

Brief Introduction

LDA series is Hipower-tek self-developed outdoor LED driver. The two-stage plan helps this series shows extremely high performance. Also, self-researched transformer reaches EIS level Class F (155 degree). Build-in NTC will shut down the driver when case temperature reaches 108 degree and rework when temperature goes down to 80 degree. This driver can work under extreme environment, the working temperature is -40 to 60 degree. Also, it has various available functions such as: 0-10V dimming function, timing control function, programable function. Hipower-tek Hi-set system makes it very convenient to achieve these functions. Nearly 94% efficiency also makes the lifetime of driver be very long which can reach 64000 hours.

Overview

1. Model No.: LDA-150B

2. AC Input Voltage:100-277VAC (90-305VAC)

3. Output Voltage Range: 30-54V

4. Output Power: 150W

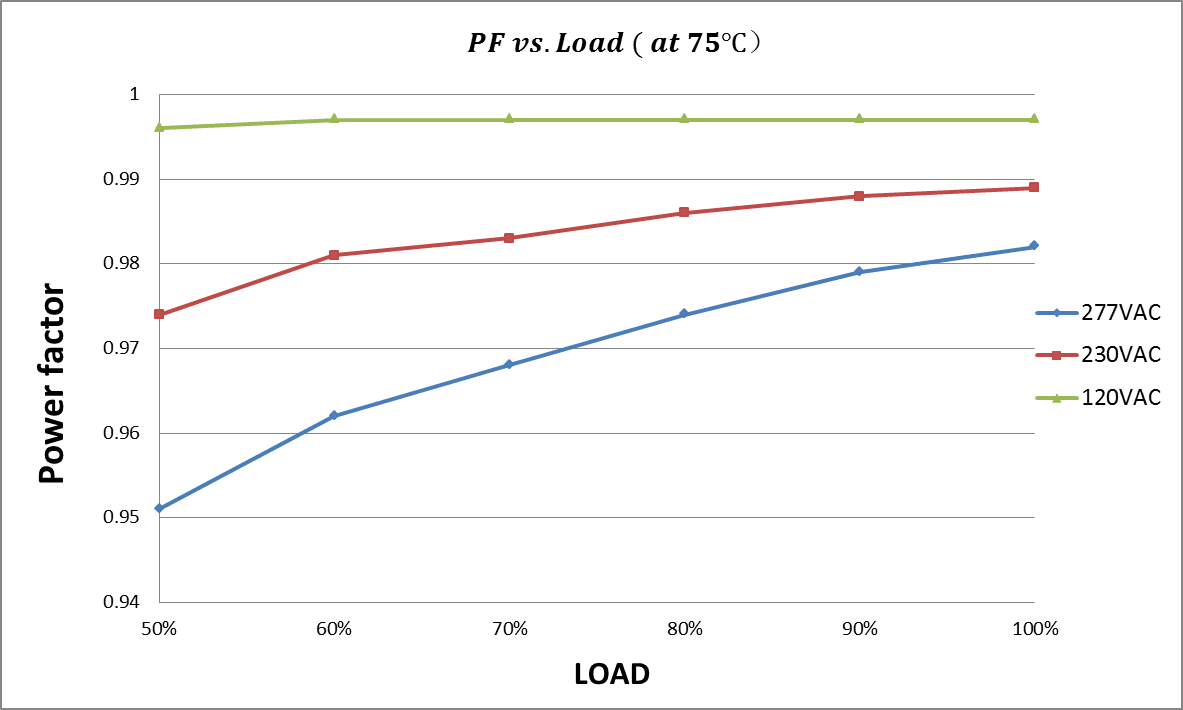

5. Power Factor: 0.99 @230VAC

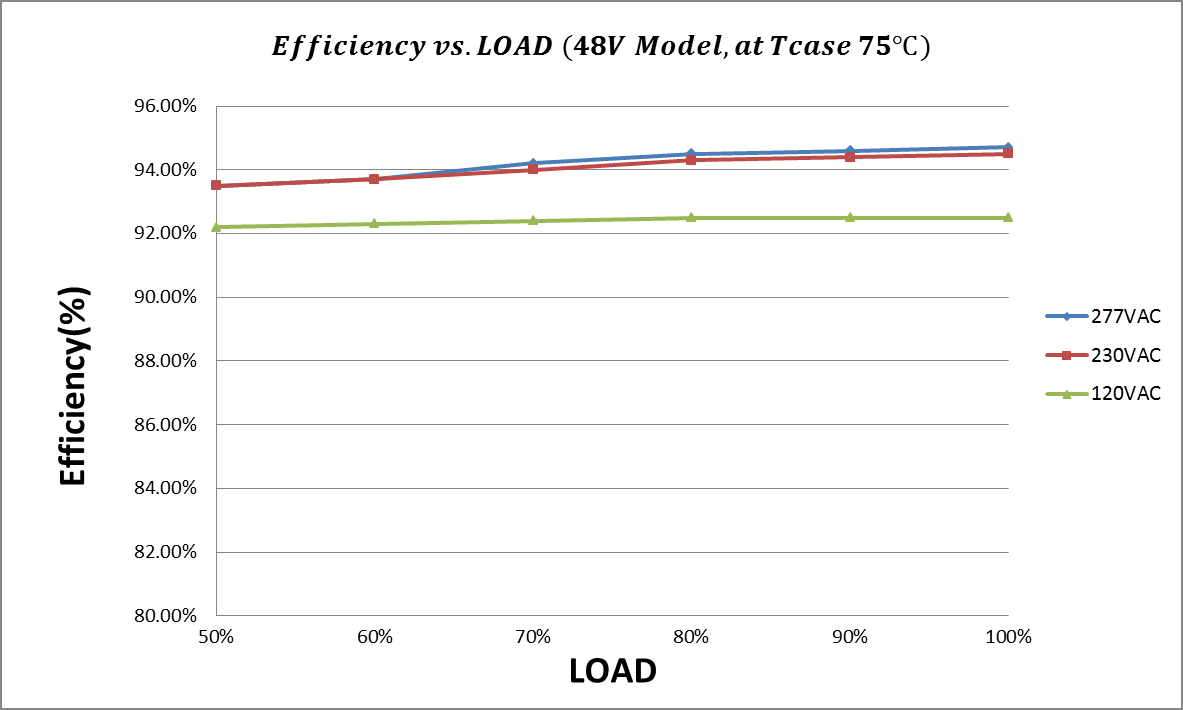

6. Efficiency: 94.5% @230VAC

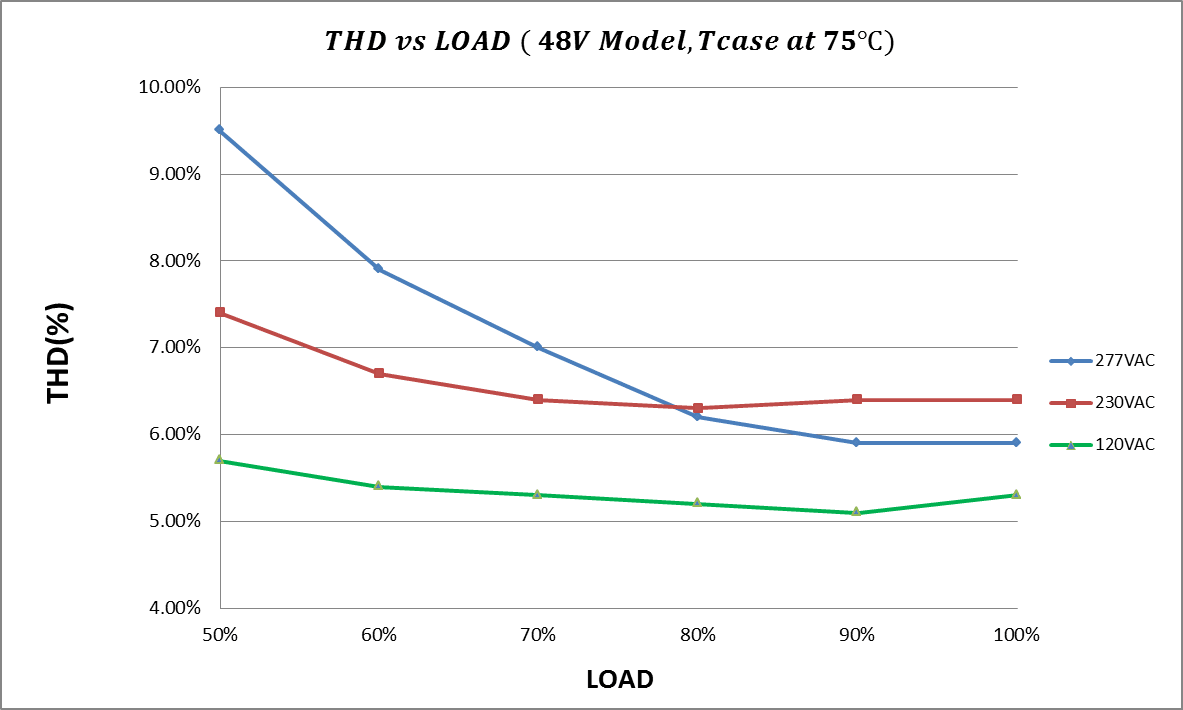

7. THD: <10% (all range)

8. 0-10V Dimming; Timing control; Programme function available

9. Size: 226*60*44mm

10. Lifetime: >64000 Hours

11. Certification: UL, TUV pending

12. Warranty: 5 years

13. Family Datasheet

Model No.	Output	Tol.	R&N	Effi.	PF	THD
LDA-150B-30	5A,15V-30V	±1%	150mV	91.5%,120V	0.99,120V	5%,120V
				93.5%,230V	0.99,230V	6%,230V
				93.5%,277V	0.98,277V	6%,277V
LDA-150B-36	4.2A,18V-36V	±1%	150mV	92%,120V	0.99,120V	5%,120V
				94%,230V	0.99,230V	6%,230V
				94%,277V	0.98,277V	6%,277V
LDA-150B-42	3.6A,21V-42V	±1%	150mV	92.5%,120V	0.99,120V	5%,120V
				94.5%,230V	0.99,230V	6%,230V
				94.5%,277V	0.98,277V	6%,277V
LDA-150B-48	3.2A,24V-48V	±1%	150mV	92.5%,120V	0.99,120V	5%,120V
				94.5%,230V	0.99,230V	6%,230V
				94.5%,277V	0.98,277V	6%,277V
LDA-150B-54	2.8A,27V-54V	±1%	150mV	92.5%,120V	0.99,120V	5%,120V
				94.5%,230V	0.99,230V	6%,230V
				94.5%,277V	0.98,277V	6%,277V

Hipower-tek is a leading edge LED manufacturing company, specializing in the development and production of high end commercial and industrial lighting products. Since the establishment in 2012, our company's performance has improved rapidly year by year. And also, we have become a recognized technologic-leading company in LED industry.

Hipower-Tek have self-developed various specifications and wide input voltage range LED drivers. Our products possess features such as high efficiency, superior reliability and long durability. Our professional R&D team guarantees the advancement and diversity of our technology. We have expanded our products to PLC dimming control, emergency power supply, LED retrofit kit etc.

Hipower-Tek always holds the concept that constant innovation, satisfying service and good credibility mark the excellence of a company, so we intend to provide you the best solution, customized service and quick respond.

The talented crew, advanced technology and scientific management contributes to Hipower-Tek 's rapid development, along with our pragmatic and aggressive entrepreneurship comprise the core competence of our company.

We may not have a glory history, . But we believe that with our ideas and incredible products we will be making history in the near future
