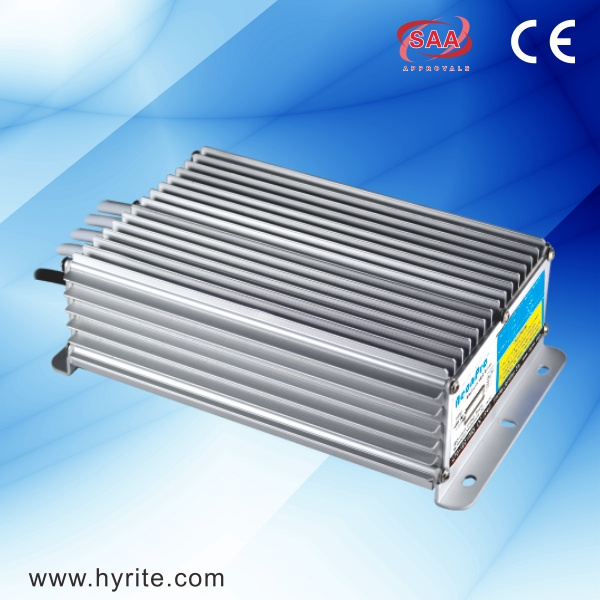

150W Waterproof LED Power Supply for Signage with Ce

Name: 150W Waterproof LED Power Supply for Signage with Ce
Brand: all-electronics-online.com
SKU: 739970935
Availability: InStock
Rating: 4.9 (133 reviews)

Price:	US $ 23/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	150W
Input Voltage:	170-250V
Output Voltage:	24V
Output Current:	6.25A
Use:	for LED Light Box, LED Signage
Connection Input/Output:	Input:0.75mm²X3 / Output:0.75mm²X2
Withstand Voltage:	I/P~O/P:1.5kvac, 1 Minute
Overload Protection:	105%-120% Hiccup Mode, Auto-Recovery
Power Factor:	0.65
AC Inrush Current(Max.):	Cold Start, 40A@230VAC
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

24V 150W LED Power Supply :LPS-24E150
Brief Introduction:
External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
Seamless aluminum case, fully sealed & waterproof, IP67
Constant voltage output
100% burn-in test

Technical Specification

Model no.	LPS-24E150
Input voltage	170-250 VAC 50/60 Hz
Max. power	40W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	1.66A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE/SAA
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)
Dimensions(LWH)	21113470 mm
Weight(kg)	2.2
Packing information	10Pcs/ Carton, G.W 23KG

Detail Pictures

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
