Yueqing Runjie Electric Co., Ltd. >> 150W Waterproof LED Power Supply

150W Waterproof LED Power Supply

150W Waterproof LED Power Supply
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: SV-150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CCC
Warranty: 1 Year
Output Type: Single
Output Power: 101 - 200W
Input Voltage: 110-220V
Voltage Regulating Mode: Width Modulation Type
Starting Mode: Self-excited Switching Power Supply
Connection Mode: Series Switching Power Supply
Power Supplying System: Terminal Power Distribution Equipment

Product Description

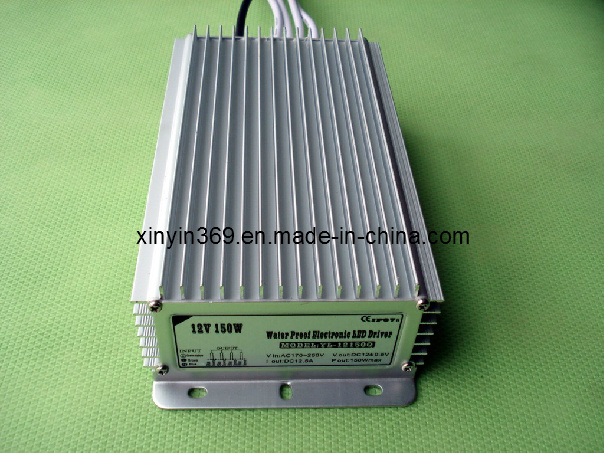

150W waterproof LED power supply

Features:
Protections: Short circuit/Over load
100% full load burn-in
Lost cost
High reliability
Waterproof and moisture proof
Convenient wiring
MODEL SV-150-12 SV-150-24
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 12.5A 6.25A
CURRENT RANGE 0 ~ 12.5A 0 ~ 6.25A
RATED POWER 150W 150W
VOLTAGE TOLERANCE ±5V ±5V
LINE REGULATION ±3% ±3%
LOAD REGULATION ±5% ±5%
INPUT VOLTAGE RANGE 170 ~ 250VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY 80% Min 80% Min
PROTECTION OVERLOAD 105 ~ 110% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is reoved
ENVIRONMENT WORKING TEMP. -20 ~ +70ºC
WORKING HUMIDITY 20 ~ 98% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80ºC ,10 ~ 85% RH
OTHERS ELECTRIC WIRE REQUEST VDE H03VV-F 3G×0.75mm2 Brown&Biue&olivine(200mm)
VDE H03VV-F 2×0.75mm2 Brown&BineVDE (200mm)
DIMENSION 235×133×65mm (L*W*H)
PACKING 2.35Kg; 5pcs/12.25Kg/0.0245CBM
Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
