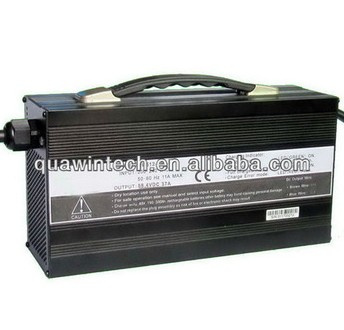

156V 11A Automatic Lead Acid Battery Charger

Name: 156V 11A Automatic Lead Acid Battery Charger
Brand: all-electronics-online.com
SKU: 737491535
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW1560-110-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	DC156V
Desktop Type:	Yes
Delivery Date:	15days
Warranty:	One Year
Type:	Lead-Acid Battery Charger
Charging Type:	Electric Charger
Principle:	Half-Bridge Charger

Product Description

156V 11A automatic Lead Acid Battery Charger

Voltage	156V
Current	11A
Connector	Customized

Quick Detail:
Brand Name: QUAWIN
Model Number: QW1560-110-S
Use: 156V Lead-Acid Battery
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 191.1V
Certificate: CE FCC ROHS
Color: Black/Silver
Input voltage: AC 180~264V 45/65Hz
Output voltage: 191.1V
Output current: 11A
Output power: 2102.1W
Output Connector: Alligator Clip, SR175A Output Plug, SB175A Output Plug, SB50A Output Plug, Custom

Specifications:
Portable fast SLA/AGM/VRLA /GEL charger 156V lead acid battery charger

Features:
Fully auto CC +CV(H)+CV(L) charging process, with MCU controller.
Constant big charging current for faster charging,
Automatically charging ending with Cut-Off output.
Aluminum case with Fan Cooling
It can charge any 156V SLA/VRLA/GEL/AGM battery with capacity 70-80Ah

Specification:
Input: AC 180~264V 45/65Hz
Output: DC 191.1V
Charging current: 11A
Full Load Efficiency: ≥ 90%
Shock & Vibration: SAEJ1378 Standard
Operating Temperature: -20º C~45º C (-20º F~+113º F)
Storage Temperature: -40º C~+75º C
Weight: 4000g(only body)
Dimension: 290*150*90mm

Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
LED always green: Fully charged or no connected.
LED slowly flashes red: Battery is being charged.
LED fast flashes red: Charger under protection (over temperature protection, output over-voltage protection).
