| Prod Model: |
KBJ15J, KBJ1510 |
| Markets: |
North America,South America,Eastern Europe,Mid East,Western Europe |
| Current: |
15A |
| Voltage: |
50-1000V |
| Manufacturing Technology: |
Integrated Circuits Device |
| Material: |
Compound Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
SMD |
| Model: |
MB1505,MB151,MB152,MB154,MB158,MB1510 |
| Batch Number: |
2016+ |
| Brand: |
Sy |
Product Description

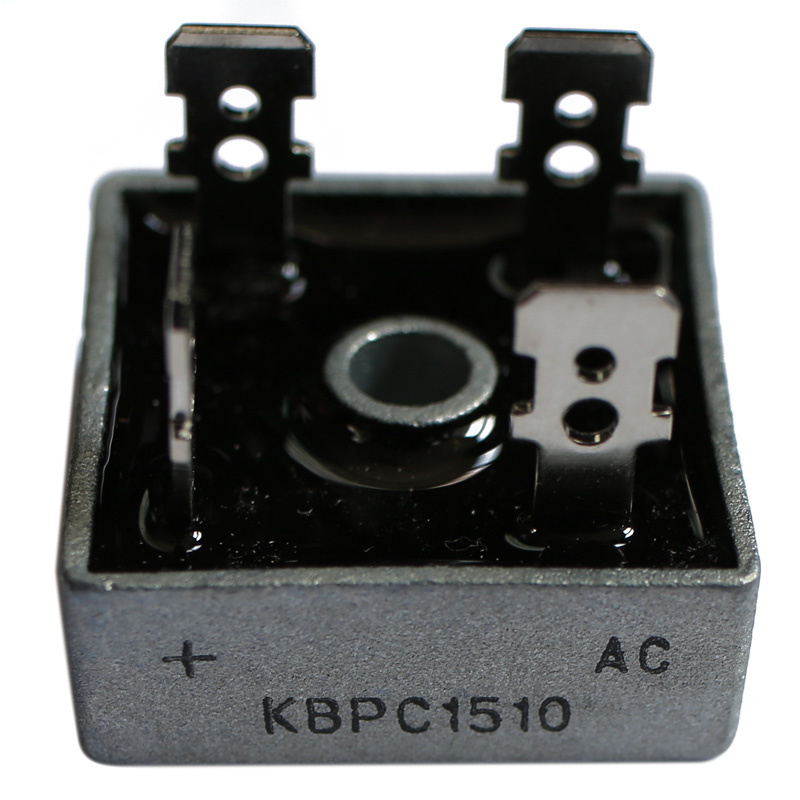

Specifications of bridge rectifier
Case : Molded plastic body.
Terminals: Plated axial leads,solderable per MIL-STD 750, method 2026.
Polarity : Polarity symbols marked on case.
Mounting position : Thru hole for #6 screw,5in.-lbs.torque max.
Weight : 0.093 ounce, 2.62 gram.
Features of bridge rectifier
The plastic package carries underwriters laboratory Flammability Classification 94V-0.
Ideal for printed circuit boards.
High tempreture soldering guaranteed: 260 ºC/10 seconds, 0.375" (9.5 mm ) lead length. 5 lbs.2.3kg tension.
High forward surge current capability
Low reverse leakage.
Packaging & Delivery
Packaging Details:
1. T/P: 5000EA per box, 50,000EA per carton,
2. SMD: 5000EA per reel, 80,000EA per carton,
3. SOD-123: 3000EA per reel, 120,000EA per carton
| | | | | | | |
| TYPE | Maximum Peak | Maximum Average | Maximum Forward | Maximum Reverse | Maximum Forward | Package |
| Reversee | Rectified | Prak Surge Current | Current | Voltage |
| Voltag | Current | @8.3ms Superimposed | @VRRM TA=25ºC | TA=25ºC |
| VRRM | I(AV) | IFSM | IR | IF | VF |
| V | A | A | μA | A | V |
| ABS2 | 200 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 | ABS |
| ABS4 | 400 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| ABS6 | 600 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| ABS8 | 800 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| ABS10 | 1000 | 0.8/1.0 | 30 | 5.0 | 0.4 | 0.95 |
| MB2S | 200 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 | MBS |
| MB4S | 400 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB6S | 600 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB8S | 800 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB10S | 1000 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB2F | 200 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 | MBF |
| MB4F | 400 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB6F | 600 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB8F | 800 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB10F | 1000 | 0.5/0.8 | 30 | 5.0 | 0.5 | 1.0 |
| MB2M | 200 | 0.8 | 30 | 5.0 | 0.8 | 1.1 | MBM |
| MB4M | 400 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| MB6M | 600 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| MB8M | 800 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| MB10M | 1000 | 0.8 | 30 | 5.0 | 0.8 | 1.1 |
| DF005 DB101 | 50 | 1.0 | 50 | 10 | 1.0 | 1.1 | DB-1 |
| DF01 DB102 | 100 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF02 DB103 | 200 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF04 DB104 | 400 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF06 DB105 | 600 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF08 DB106 | 800 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF10 DB107 | 1000 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF005S DB101S | 50 | 1.0 | 50 | 10 | 1.0 | 1.1 | DB-S |
| DF01S DB102S | 100 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF02S DB103S | 200 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF04S DB104S | 400 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF06S DB105S | 600 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF08S DB106S | 800 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DF10S DB107S | 1000 | 1.0 | 50 | 10 | 1.0 | 1.1 |
| DB151 | 50 | 1.5 | 50 | 10 | 1.5 | 1.1 | DB-1 |
| DB152 | 100 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB153 | 200 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB154 | 400 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB155 | 600 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB156 | 800 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB157 | 1000 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB151S | 50 | 1.5 | 50 | 10 | 1.5 | 1.1 | DB-S |
| DB152S | 100 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB153S | 200 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB154S | 400 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB155S | 600 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB156S | 800 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| DB157S | 1000 | 1.5 | 50 | 10 | 1.5 | 1.1 |
| RB151 | 50 | 1.5 | 40 | 10 | 1.5 | 1.1 | WOB |
| RB152 | 100 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB153 | 200 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB154 | 400 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB155 | 600 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB156 | 800 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| RB157 | 1000 | 1.5 | 40 | 10 | 1.5 | 1.1 |
| | | | | | | |
| TYPE | Maximum Peak | Maximum Average | Maximum Forward | Maximum Reverse | Maximum Forward | Package |
| Reversee | Rectified | Prak Surge Current | Current | Voltage |
| Voltag | Current | @8.3ms Superimposed | @VRRM TA=25ºC | TA=25ºC |
| VRRM | I(AV) | IFSM | IR | IF | VF |
| V | A | A | μA | A | V |
| W005 | 50 | 1.0 | 30 | 10 | 1.0 | 1.1 | WOB |
| W01 | 100 | 1.0 | 30 | 10 | 1.0 | 1.1 |
| W02 | 200 | 1.0 | 30 | 10 | 1.0 | 1.1 |
| W04 | 400 | 1.0 | 30 | 10 | 1.0 | 1.1 |
| W06 | 600 | 1.0 | 30 | 10 | 1.0 | 1.1 |
| W08 | 800 | 1.0 | 30 | 10 | 1.0 | 1.1 |
| W10 | 1000 | 1.0 | 30 | 10 | 1.0 | 1.1 |
| 2W005 | 50 | 2.0 | 50 | 10 | 2.0 | 1.1 | WOB |
| 2W01 | 100 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| 2W02 | 200 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| 2W04 | 400 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| 2W06 | 600 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| 2W08 | 800 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| 2W10 | 1000 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| RS201 | 50 | 2.0 | 50 | 10 | 2.0 | 1.1 | RS-2 |
| RS202 | 100 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| RS203 | 200 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| RS204 | 400 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| RS205 | 600 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| RS206 | 800 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| RS207 | 1000 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBP2005 | 50 | 2.0 | 50 | 10 | 2.0 | 1.1 | KBP |
| KBP201 | 100 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBP202 | 200 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBP204 | 400 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBP206 | 600 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBP208 | 800 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBP210 | 1000 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBJ2005 GBJ2005 | 50 | 2.0 | 50 | 10 | 2.0 | 1.1 | GBJ2 |
| KBJ201 GBJ201 | 100 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBJ202 GBJ202 | 200 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBJ204 GBJ204 | 400 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBJ206 GBJ206 | 600 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBJ208 GBJ208 | 800 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBJ210 GBJ210 | 1000 | 2.0 | 50 | 10 | 2.0 | 1.1 |
| KBPC1005 BR305 | 50 | 3.0 | 50 | 10 | 3.0 | 1.1 | KBPC1 |
| KBPC101 BR31 | 100 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBPC102 BR32 | 200 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBPC104 BR34 | 400 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBPC106 BR36 | 600 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBPC108 BR38 | 800 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBPC110 BR310 | 1000 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBP3005 | 50 | 3.0 | 50 | 10 | 3.0 | 1.1 | KBP |
| KBP301 | 100 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBP302 | 200 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBP304 | 400 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBP306 | 600 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBP308 | 800 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBP310 | 1000 | 3.0 | 50 | 10 | 3.0 | 1.1 |
| KBL005 RS401 | 50 | 4.0 | 150 | 10 | 4.0 | 1.1 | KBL |
| KBL01 RS402 | 100 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL02 RS403 | 200 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL04 RS404 | 400 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL06 RS405 | 600 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL08 RS406 | 800 | 4.0 | 150 | 10 | 4.0 | 1.1 |
| KBL10 RS407 | 1000 | 4.0 | 150 | 10 | 4.0 | 1.1 |
