15A, 50-1000V Bridge Diode Kbpc15005, Kbpc1501, Kbpc1502,

Prod Model:	kbpc15005, kbpc1502, kbpc1508, kbpc1510
Markets:	North America,South America,Eastern Europe,Mid East,Western Europe
Current:	15A
Voltage:	50-1000V
Manufacturing Technology:	Integrated Circuits Device
Material:	Compound Semiconductor
Type:	Intrinsic Semiconductor
Package:	SMD
Model:	Kbpc15005,Kbpc151,Kbpc152,Kbpc154,Kbpc158,Kbpc1510
Batch Number:	2016+
Brand:	Sy

Product Description

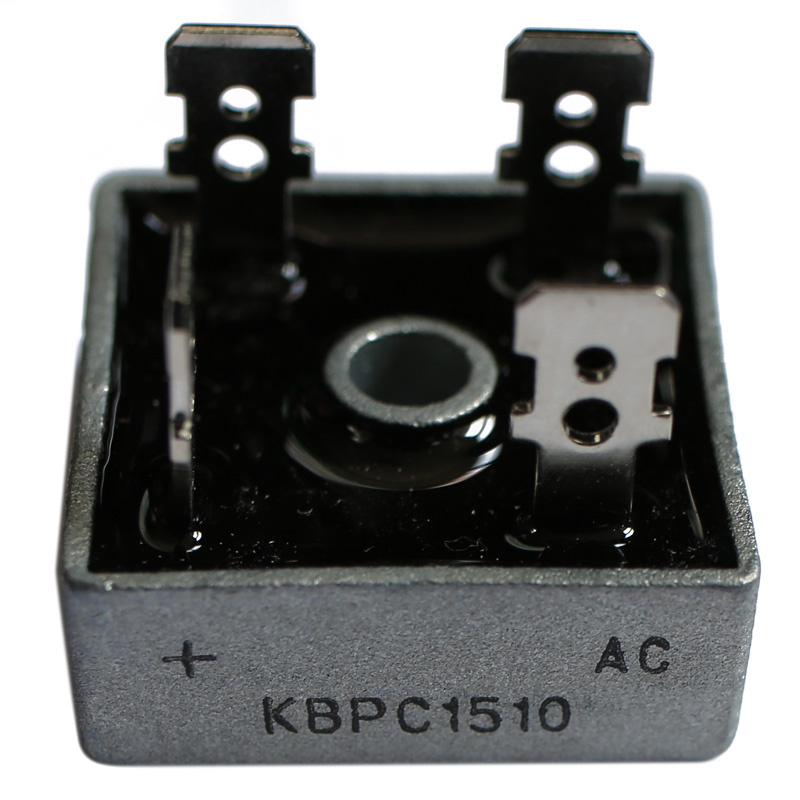

15A, 50-1000V Bridge Diode Kbpc15005, Kbpc1501, Kbpc1502,



Specifications of bridge rectifier

Case :           Molded plastic body.
Terminals:   Plated axial leads,solderable per MIL-STD 750, method 2026.
Polarity :      Polarity symbols marked on case.
Mounting position :  Thru hole for #6 screw,5in.-lbs.torque max.
Weight : 0.093 ounce, 2.62 gram.

Features of bridge rectifier

The plastic package carries underwriters laboratory Flammability Classification 94V-0.
Ideal for printed circuit boards.
High tempreture soldering guaranteed: 260 ºC/10 seconds, 0.375" (9.5 mm ) lead length. 5 lbs.2.3kg tension.
High forward surge current capability
Low reverse leakage.

Packaging & Delivery

Packaging Details:
1. T/P: 5000EA per box, 50,000EA per carton,
2. SMD: 5000EA per reel, 80,000EA per carton,
3. SOD-123: 3000EA per reel, 120,000EA per carton

Delivery Detail: 14 days

BRIDGE RECTIFIERS RANGE :

TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC
	VRRM	I(AV)	IFSM	IR	IF	VF
	V	A	A	μA	A	V
KBPC10005	50	10	150	10	10	1.1	KBPC8
KBPC1001	100	10	150	10	10	1.1
KBPC1002	200	10	150	10	10	1.1
KBPC1004	400	10	150	10	10	1.1
KBPC1006	600	10	150	10	10	1.1
KBPC1008	800	10	150	10	10	1.1
KBPC1010	1000	10	150	10	10	1.1
GBU1005	50	10	200	10	10	1.1	GBU
GBU101	100	10	200	10	10	1.1
GBU102	200	10	200	10	10	1.1
GBU104	400	10	200	10	10	1.1
GBU106	600	10	200	10	10	1.1
GBU108	800	10	200	10	10	1.1
GBU1010	1000	10	200	10	10	1.1
KBPC15005	50	15	300	10	15	1.1	KBPC25
KBPC1501	100	15	300	10	15	1.1
KBPC1502	200	15	300	10	15	1.1
KBPC1504	400	15	300	10	15	1.1
KBPC1506	600	15	300	10	15	1.1
KBPC1508	800	15	300	10	15	1.1
KBPC1510	1000	15	300	10	15	1.1
KBPC15005W	50	15	300	10	15	1.1	KBPC25-W
KBPC1501W	100	15	300	10	15	1.1
KBPC1502W	200	15	300	10	15	1.1
KBPC1504W	400	15	300	10	15	1.1
KBPC1506W	600	15	300	10	15	1.1
KBPC1508W	800	15	300	10	15	1.1
KBPC1510W	1000	15	300	10	15	1.1
KBPC25005	50	25	300	10	25	1.1	KBPC25
KBPC2501	100	25	300	10	25	1.1
KBPC2502	200	25	300	10	25	1.1
KBPC2504	400	25	300	10	25	1.1
KBPC2506	600	25	300	10	25	1.1
KBPC2508	800	25	300	10	25	1.1
KBPC2510	1000	25	300	10	25	1.1
KBPC25005W	50	25	300	10	25	1.1	KBPC25-W
KBPC2501W	100	25	300	10	25	1.1
KBPC2502W	200	25	300	10	25	1.1
KBPC2504W	400	25	300	10	25	1.1
KBPC2506W/	600	25	300	10	25	1.1
KBPC2508W	800	25	300	10	25	1.1
KBPC2510W	1000	25	300	10	25	1.1
KBPC35005	50	35	400	10	35	1.1	KBPC25
KBPC3501	100	35	400	10	35	1.1
KBPC3502	200	35	400	10	35	1.1
KBPC3504	400	35	400	10	35	1.1
KBPC3506	600	35	400	10	35	1.1
KBPC3508	800	35	400	10	35	1.1
KBPC3510	1000	35	400	10	35	1.1
KBPC35005W	50	35	400	10	35	1.1	KBPC25-W
KBPC3501W	100	35	400	10	35	1.1
KBPC3502W	200	35	400	10	35	1.1
KBPC3504W	400	35	400	10	35	1.1
KBPC3506W	600	35	400	10	35	1.1
KBPC3508W	800	35	400	10	35	1.1
KBPC3510W	1000	35	400	10	35	1.1
