15A AC Input Singe Phase Power DIN Rail Solid State Contactor

15A AC Input Singe Phase Power DIN Rail Solid State Contactor
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SYDR1548ZA2
Input: 70-280VAC
Load Current: 15A
Load Voltage: 480VAC
Mounting: DIN Rail
Theory: Solid State Relay
Protective Characteristics: Sealed Relay
Size: Miniature

Product Description



patent product

15A DIN rail mount AC input solid state relay,solid contactor


Features:
1. 24.3mm solid state contactor for space-saving design
2. Ready to use with its heatsink
3. Large control range:70-280VAC
4. Built-in RC
5. With LED indicator
6. Dielectric strength upto 4000V
7. Zero-cross or instantaneous turn-on
8. Terminals protection by removable transparent cover with optional labels
9. Designed in conformity with IEC/EN60947-4-3 and EN60950/VDE0805; IEC60335-1/VDE0700-1.


Technical data:

Load current15A
Load voltage24-480Vac
Input voltage70-280VAC
Voltage drop ≤1.5V
Leakage current ≤2mA
ON-OFF time ≤10mS
Dielectric strength 2500Vac
Insulation resistance 1000MΩ 500VDC
Ambient temperature -30°c ~ +75°c
Dimension(mm) 80.3x24.3x104
Weight 300g

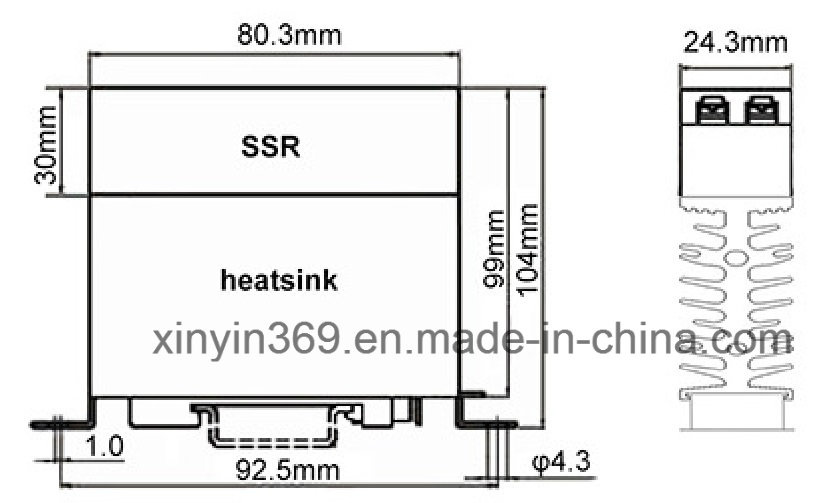

Outline dimensions:













Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
