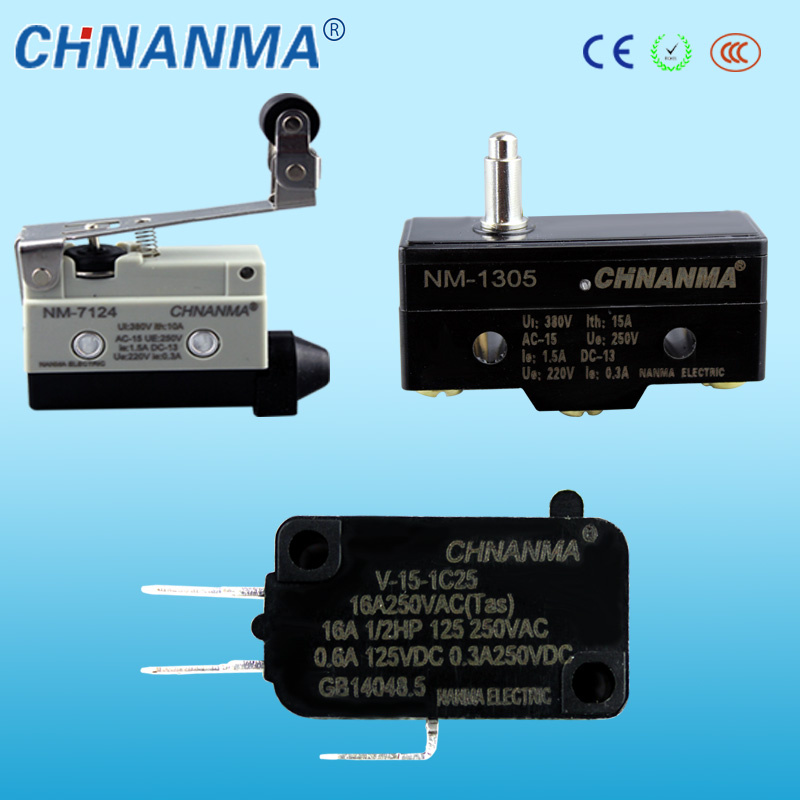

15A Omron Micro Switch V-15 Series 250V Snap Action Mirco Switch

Name: 15A Omron Micro Switch V-15 Series 250V Snap Action Mirco Switch
Brand: all-electronics-online.com
SKU: 729160562
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	V-153-1C25, XV-154-1C25, V-155-1C25, V-156-1C25
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Domestic Electric Appliances
Brand:	Chnanma

Product Description

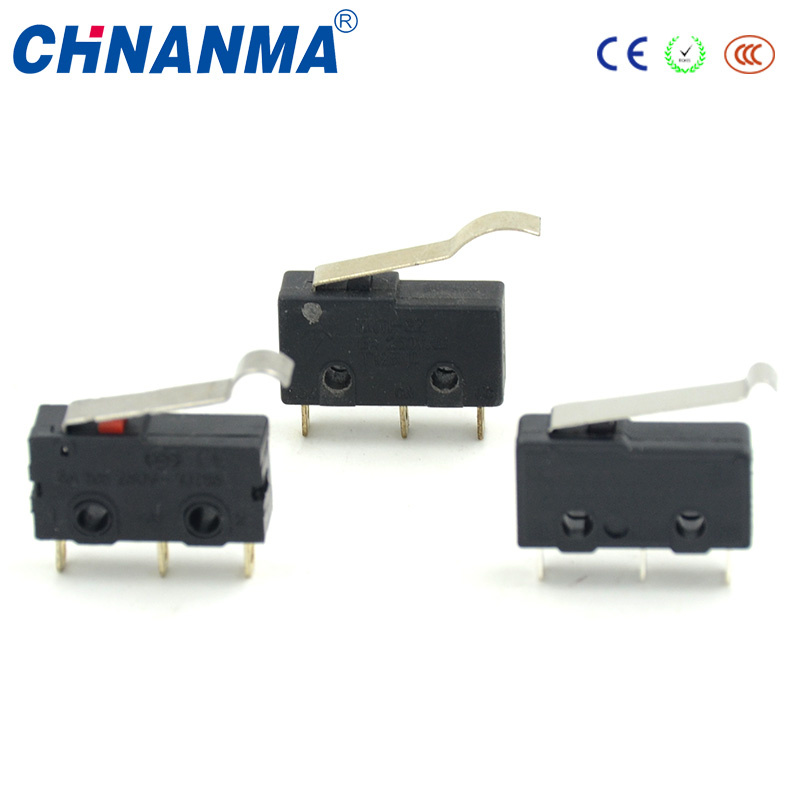

Various levers and terminals are available for choice.
Various operating force are available.
Snap action, compact design, suit for small space.
Long operating life, high reliability, which could save the cost.
Various rating and temperature resistance degree are available.
CCC,CE,UL,VDE approvals.

2.Specification

Item		Date
Operation speed		0.1mm-1m/s
Operation frequency	Mechanical	600time/min
Operation frequency	Electrical	40time/min
Insulation resistance		100MΩ(above)(DC500V)
Contact resistance		25MΩ initial value
Withstand voltage	Non-connection wire	1500VAC
Withstand voltage	Every terminal	2000VAC
Vibration	Misoperation	10-55Hz(Amplitude)1.5mm
Impact	Durable	1000m/s
Impact	Misoperation	300m/s
Life	Electrical	10,000(above)
Life	Mechanical	1,000,000(above)
Pretection degree		IP40
Ambient operating temperature		"-25+80ºC
Humidity		<=82%
Ue(v)	Le(A)	1th(A)
AC-250	7.5	10
AC-125	15	20
DC-250	0.3	0.45
DC-125	0.6	0.75

3.Operating Characteristics

Operation speciality	V-21-1-6	V-16-1-4

OF	400g	200g
RF	80g	50g
PT	1.2mm
OT	1.0mm
MD	0.4mm(0.3mm)
OP	14.7±0.4mm

Dimessions/Operating Characteristics

Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

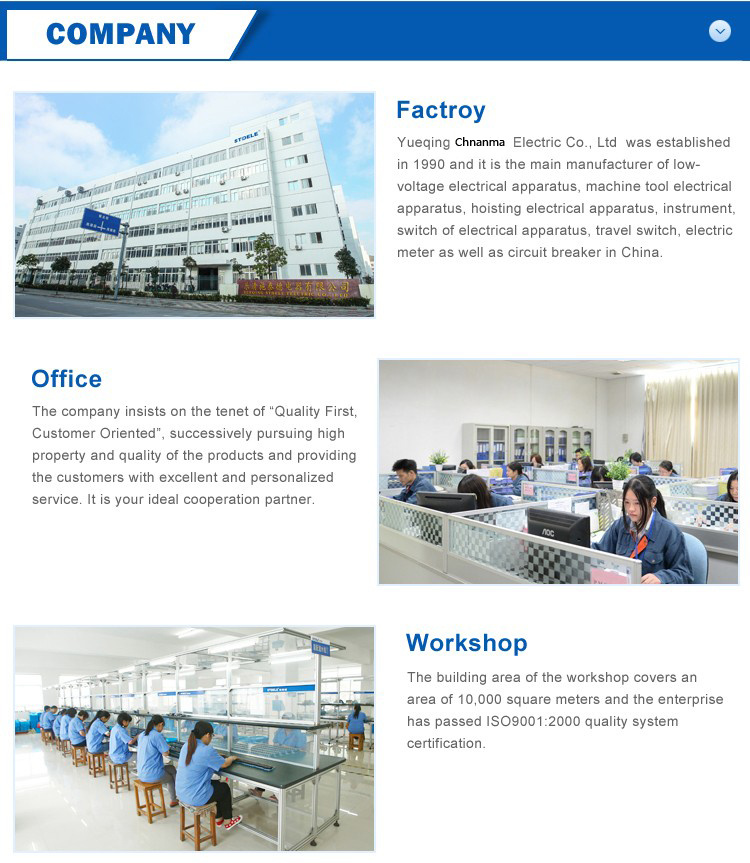

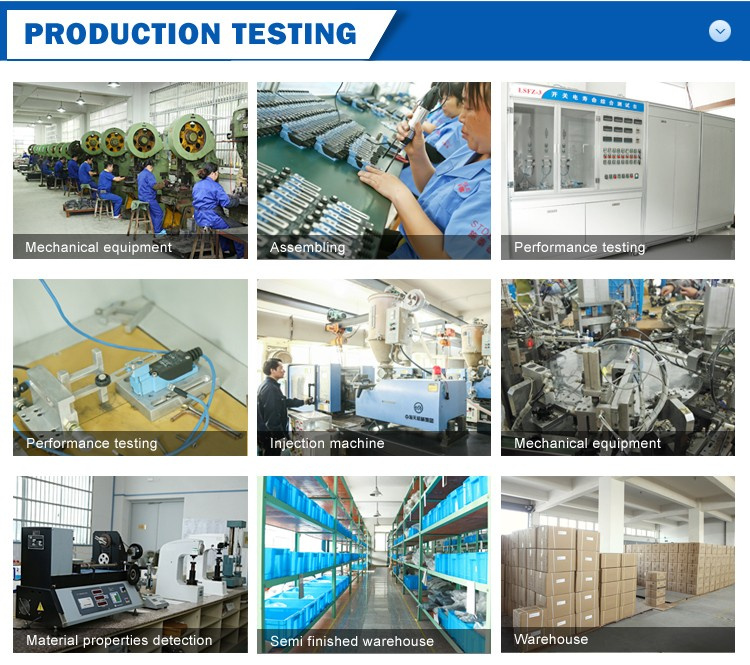

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
